SERIES 15i-16i-18i-21i MODEL A Operators manual Page 36

Operators manual
B-63454EN/01 3. CONNECTION
-27-
3.6 ACCESS RIGHT
3.6.1 About Access Right
To access a CNC for which a password is set to protect the CNC
machine tool information, the access right must be acquired using the
password. Otherwise, the CNC information cannot be acquired.
3.6.2 Password Setting for the CNC
For an explanation of how to set a CNC password, see Appendix B.
For the Series 16i/18i/21i
Parameter No. 211 through No. 213, and No. 221 through No. 223
For the Series 15i
Parameter No. 0042 through No. 0047
3.6.3 Password Registration on the Host Software Side

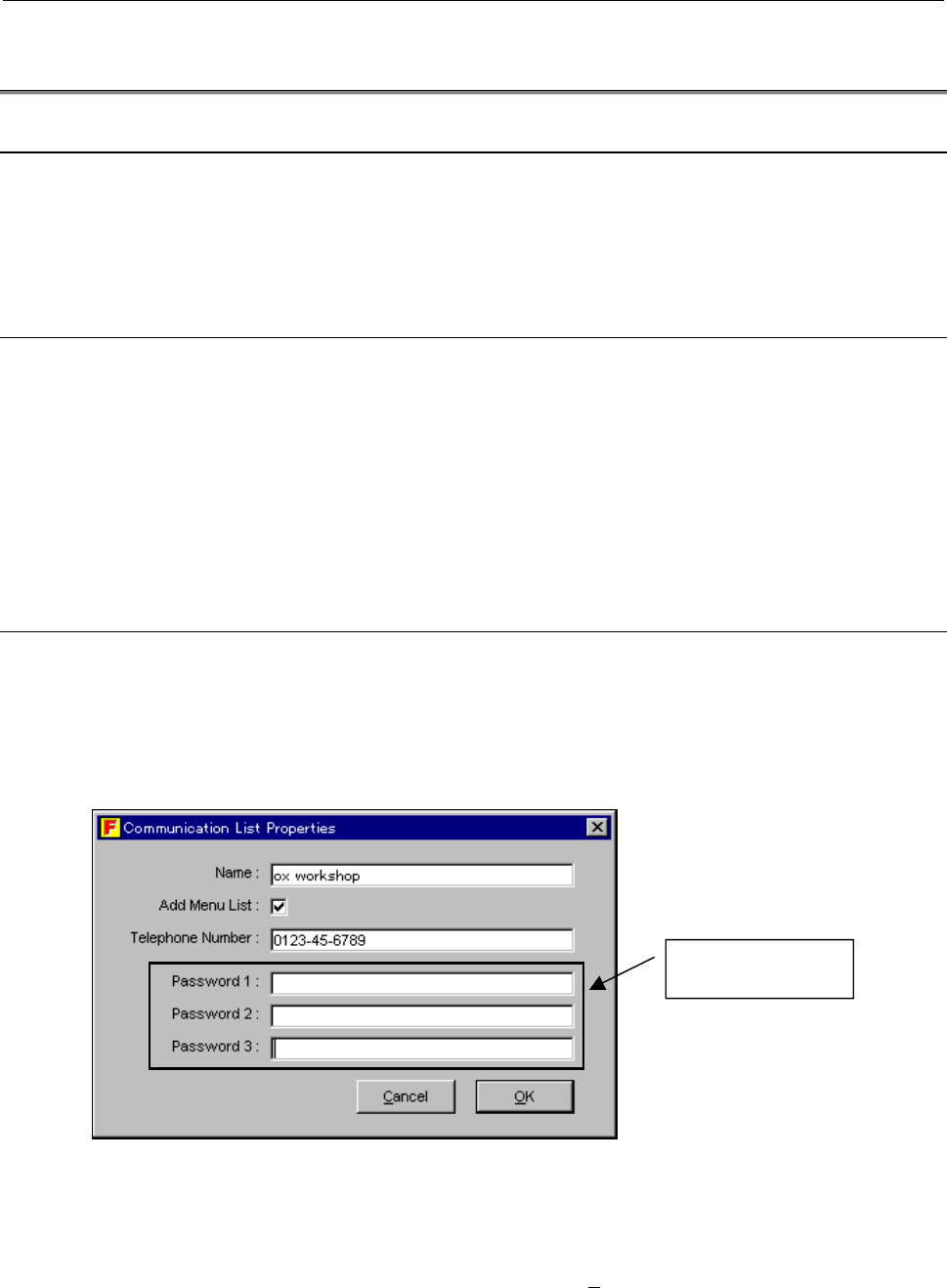

Before making a connection, register a password by using the setting
dialog box (Communication List Properties) for the communication
destination. Enter an eight-digit password. For an explanation of
dialog box display operation and connection-related operation after
password input, see Section 4.4.3.
When a communication destination is registered, passwords are
registered together with the name and telephone number of the
communication destination.
Subsequently, when choosing, and connecting to, a communication
destination displayed on the Phone menu, acquire the access right by
using the password registered here.
Enter passwords.
