SERIES 15i-16i-18i-21i MODEL A Operators manual Page 45

Operators manual
4. OPERATION B-63454EN/01
−36−
4.4 PHONE MENU
4.4.1 Dial

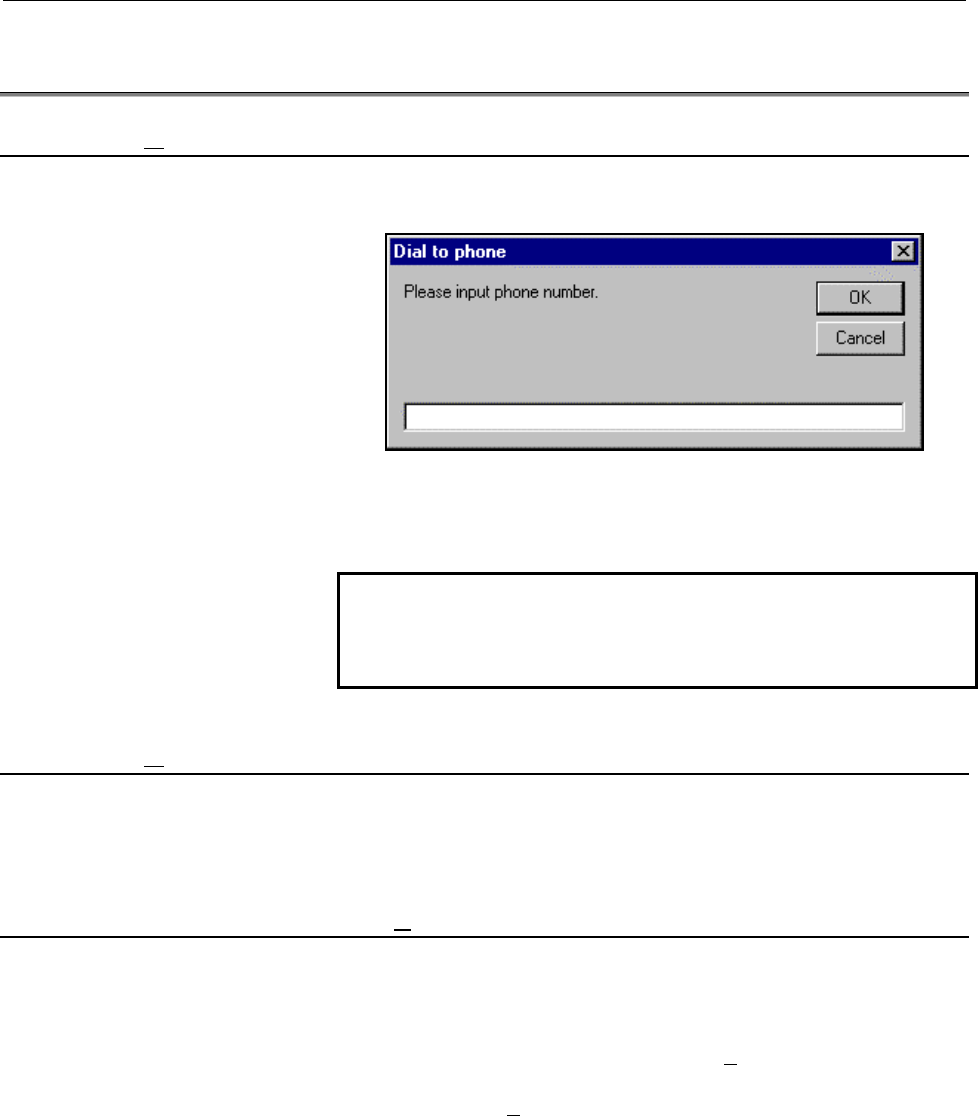

When this menu item is chosen, the following window appears:
Enter the desired telephone number, then click the OK button to start
the connection of the telephone line.
NOTE
The type of telephone line must be entered in the
communication settings.
(See also: Section 4.9.1)
4.4.2 Hang
When this menu item is chosen after the end of remote diagnosis, the
connection is broken.
4.4.3 Phone List, comm List
This function enables a connection to easily be made to a
communication destination registered in the list of communication
destinations. First, a desired communication destination must be
registered in the phone list by using comm List.
(1) When comm List is chosen, the following dialog box appears:
