Operation manual of FS30i
PC tool for Memory Card Program
Operation/Editing
Feb 18.2004
When a new memory card program file is created, two reserved folder
are also created. Therefore, the number of used folder is two. However
it does not show that number of unused folder is reduced.
The display of status bar is renewed at creating or deleting a folder,
dropping-in from Explorer, and deleting a program file.

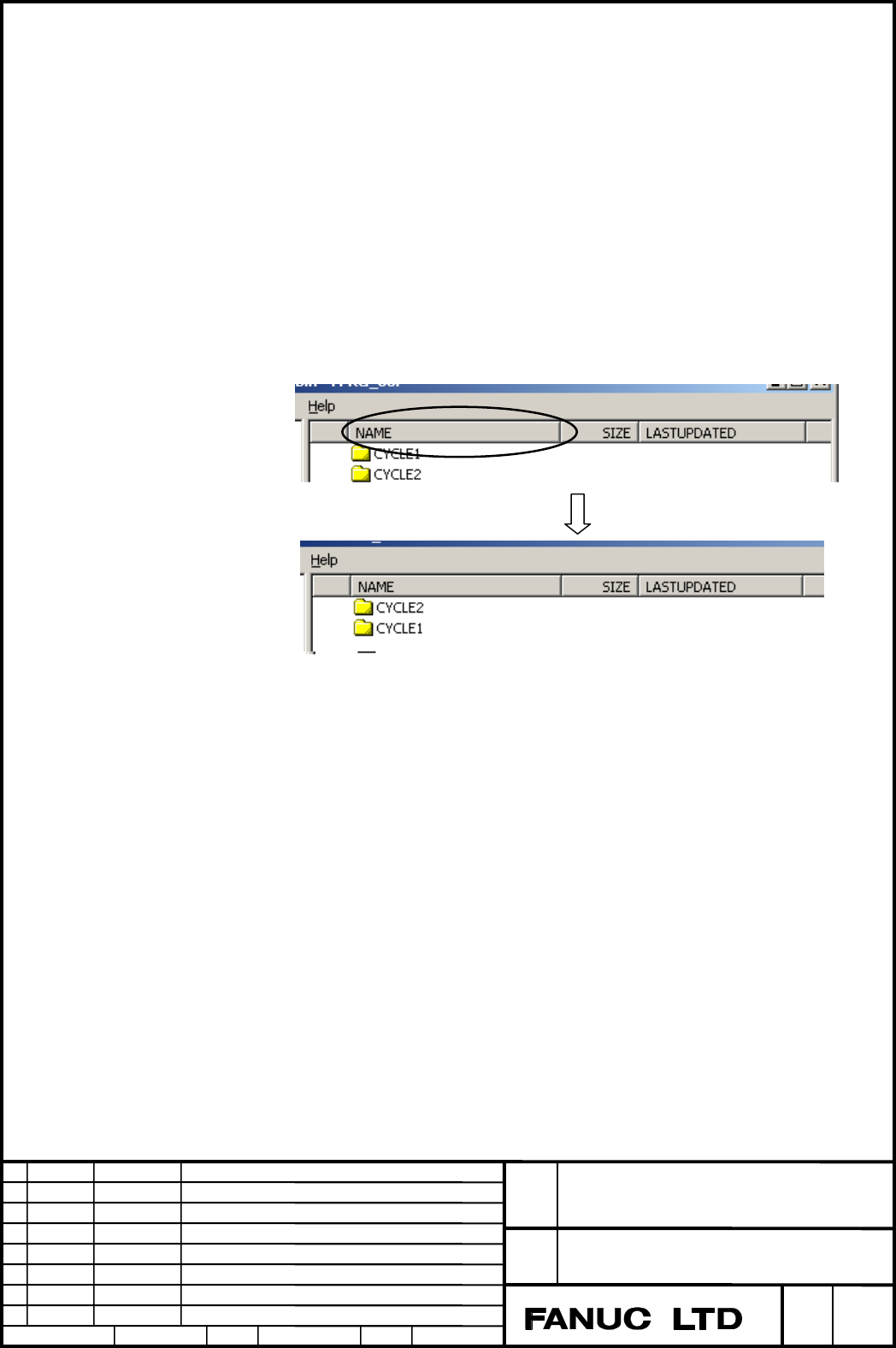

Sorting list view of the memory card program file
When a column is being clicked, the list view of the memory card
program file is being sorted by the column key in ascending or
descending order.
The initial display is sorted by NAME key in ascending order.
Clicking
Previous page
Next page
