Operation manual of FS30i/31i/32i-MODEL A
PC tool for Memory Card Program
Operation/Editing
Ed. Date Design Description
Date Desig. Apprv.
Feb 18.2004
If the [OK] button is pushed, the operation advances.
If the [Cancel] button is pushed, the operation is abandoned.
When the [Hide Confirm Message] in menu bar is checked, the
Confirm Message is not displayed and the operation advances at
once. The default setting is the Confirm Message displayed.
[Ignore Error Code]
When the [Ignore Error Code] in menu bar is checked, program
file which includes unusable characters can be dropped in. The
unusable characters in the program file will be ignored and will not
be written into the memory card program file.
[Change Work Folder]
Work folder is used for temporarily keeping the dropped out files.
If work folder has no enough free space, Drop-out will not be
executed. To avoid this, you can check this option and change the
work folder to an area where there is enough free space. With
default setting, work folder [temp] will be created on the same
place of this PC tool "FPRG_30i.exe".

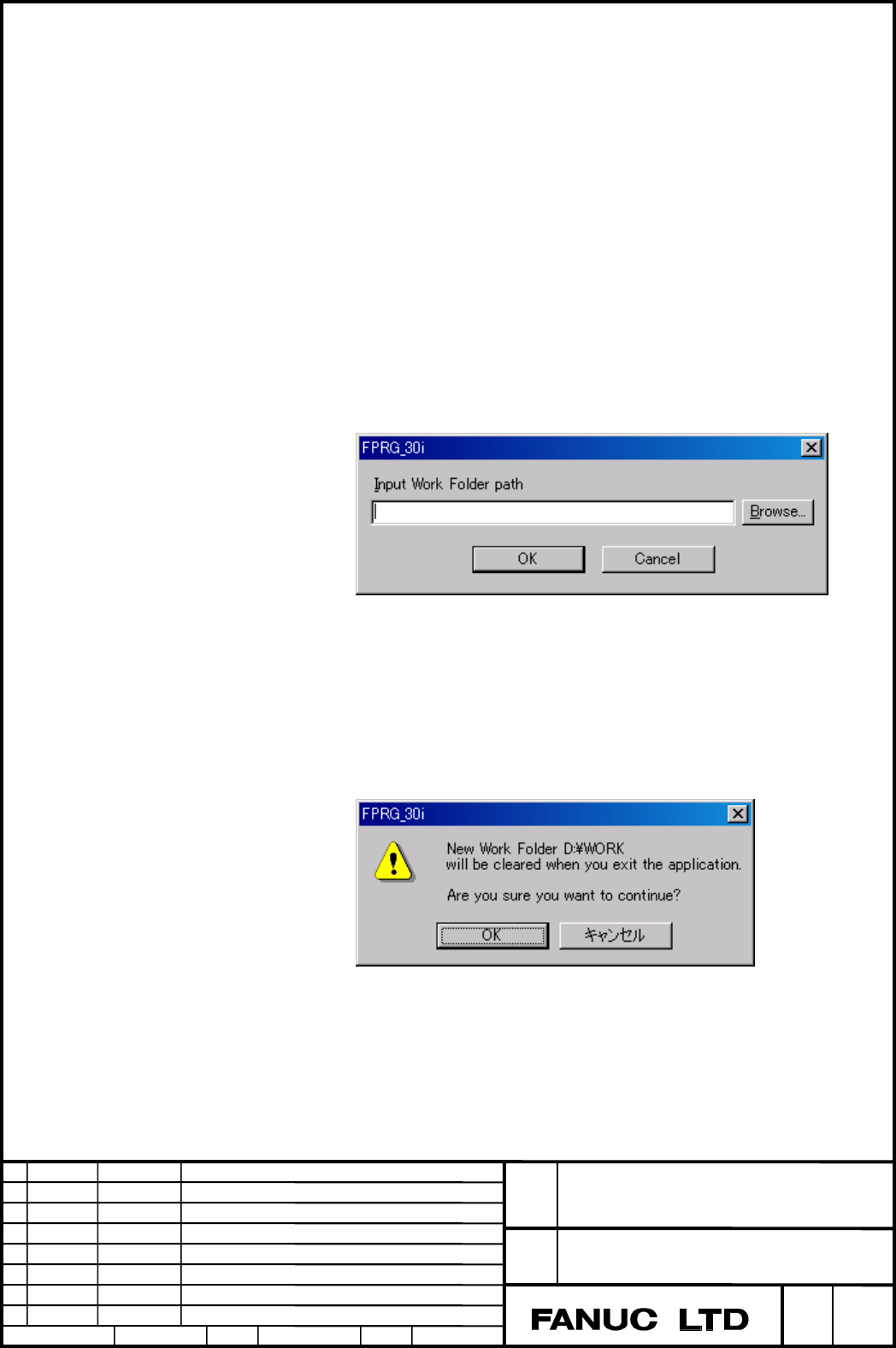

If you changed the default work folder, the following warning
message is popped up.
If the [OK] button is pushed, the operation advances.
If the [Cancel] button is pushed, the operation is abandoned.
If the work folder has been changed before, the following warning
message is popped up.
