FANUC Series 16i/18i-MA Electronic Gear Box Automatic phase synchronization Additional Manual Page 2
Additional Manual
FANUC Series 16i/18i -MA
SPECIFICATIONS FOR
ELECTRONIC GEAR BOX
AUTOMATIC PHASE SYNCHRONIZATION
EDT. DATE DESIG.
DESCRIPTION
PAGE
2 / 14
A – 77934E
NO.
TITLE
01
1999.OCT.29
NEWLY
1. Outlines
In the electronic gear box (EGB), when synchronization start or cancellation is specified,
synchronization is not started or canceled immediately.
Instead, acceleration/deceleration is executed first. Therefore, synchronization can be
started or canceled while the spindle is rotating. Also, synchronization ratio can be
changed while the spindle is rotating.
At synchronization start, automatic phase synchronization is performed such that the
workpiece axis position matches the position corresponding to the spindle one-rotation
signal. With this synchronization, the same operation is performed as synchronization
start caused by a one-rotation signal in hobbing synchronization when using the
functions of a hobbing machine.
The spindle corresponds to the EGB master axis and the workpiece axis corresponds to
an EGB slave axis (Servo axis or Cs contouring axis).

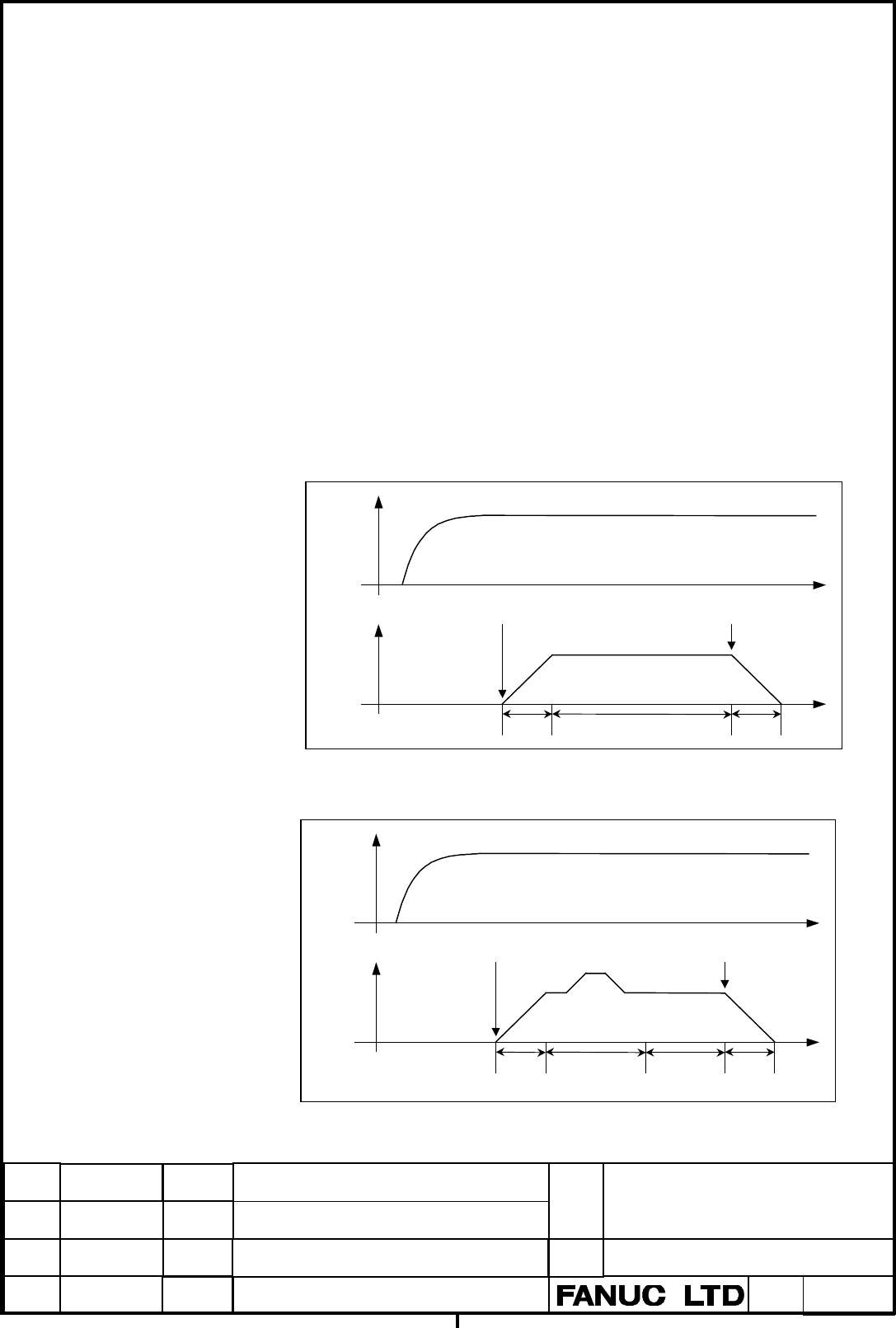

- Acceleration/deceleration type
- Acceleration/deceleration plus automatic phase synchronization type
Synchronization
cancellation command
Synchronization start command
Workpiece-
axis speed
Synchronization
state
Acceleration
Deceleration
Spindle
speed
Synchronization
cancellation command
Synchronization start command
Workpiece-
axis speed
Synchro-
nization
state
A
ccele-
ration
Decele-
ration
Spindle
speed
A
utomatic
phase synchro-
nization
