  2. FANUC Series 16i/18i-MA Electronic Gear Box Automatic phase synchronization

FANUC Series 16i/18i-MA Electronic Gear Box Automatic phase synchronization Additional Manual Page 3

Additional Manual
FANUC Series 16i/18i -MA
SPECIFICATIONS FOR
ELECTRONIC GEAR BOX
AUTOMATIC PHASE SYNCHRONIZATION
EDT. DATE DESIG.
DESCRIPTION
PAGE
3 / 14
A – 77934E
NO.
TITLE
01
1999.OCT.29
NEWLY
2. Operations
2.1 Acceleration/deceleration type
Format
G81 T_ L_ R1; Synchronization start
G80 R1; Synchronization end
T : Number of teeth (range of valid settings: 1-1000)
L : Number of hob threads (range of valid settings: -21 to
+21, excluding 0)
When L is positive, the direction of rotation about the
workpiece axis is positive (+ direction).
When L is negative, the direction of rotation about the
workpiece axis is negative (- direction).

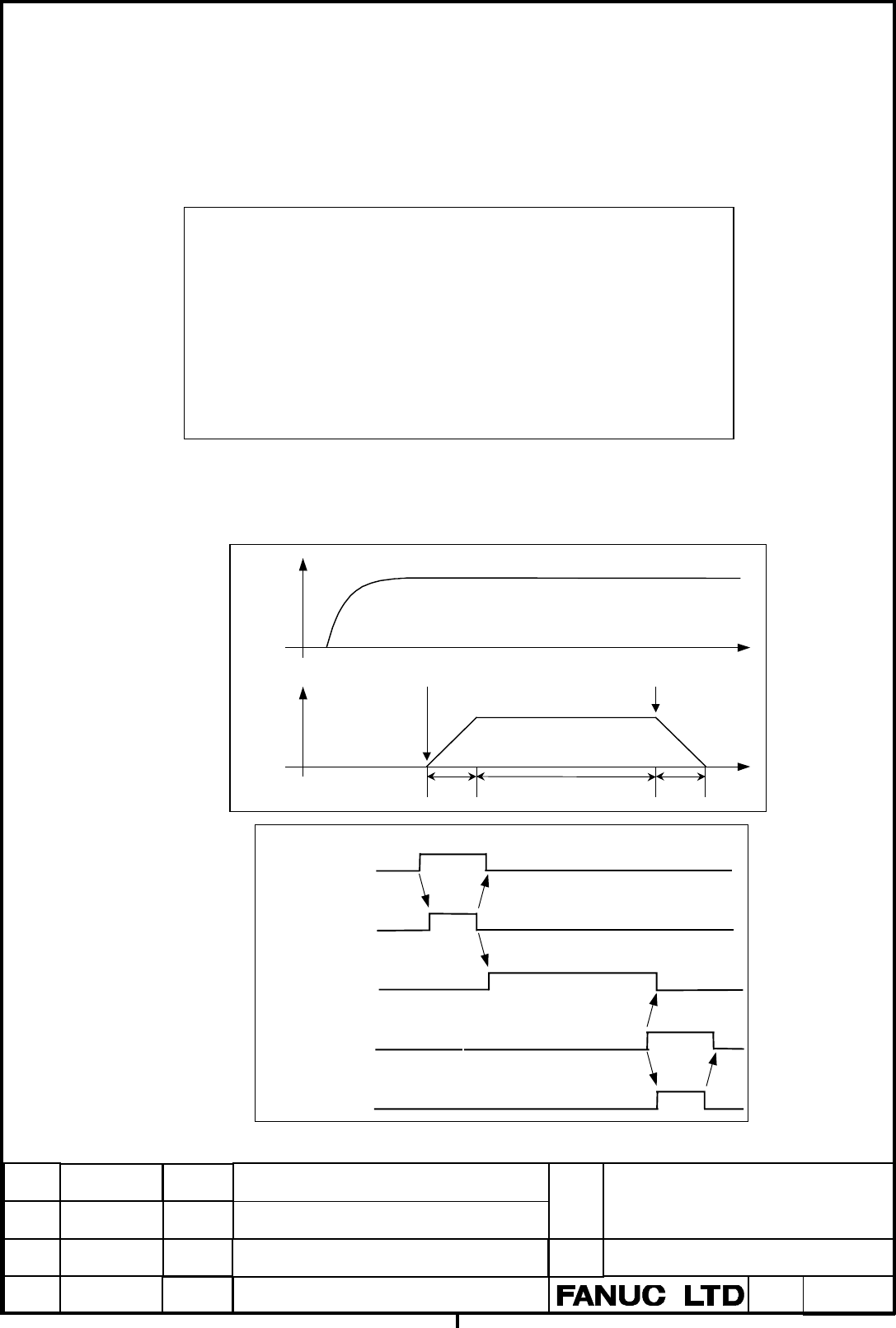

Command sequence
G81R1 command
execution
G80R1
command execution
Acceleration
Synchronization-set
Deceleration
Synchronization
cancellation command
Synchronization start command
Workpiece-
axis speed
Synchronization
state
Acceleration
Deceleration
Spindle
speed
Previous page
Next page
