  2. FANUC Series 16i/18i-MA Electronic Gear Box Automatic phase synchronization

FANUC Series 16i/18i-MA Electronic Gear Box Automatic phase synchronization Additional Manual Page 5

Additional Manual
FANUC Series 16i/18i -MA
SPECIFICATIONS FOR
ELECTRONIC GEAR BOX
AUTOMATIC PHASE SYNCHRONIZATION
EDT. DATE DESIG.
DESCRIPTION
PAGE
5 / 14
A – 77934E
NO.
TITLE
01
1999.OCT.29
NEWLY
2.2 Acceleration/deceleration plus automatic phase synchronization type
Format
G81 T_ L_ R2; Synchronization start
G80 R2; Synchronization end
T : Number of teeth (range of valid settings: 1-1000)
L : Number of hob threads (range of valid settings: -21
to +21, excluding 0)
When L is positive, the direction of rotation about the
workpiece axis is positive (+ direction).
When L is negative, the direction of rotation about
the workpiece axis is negative (- direction).

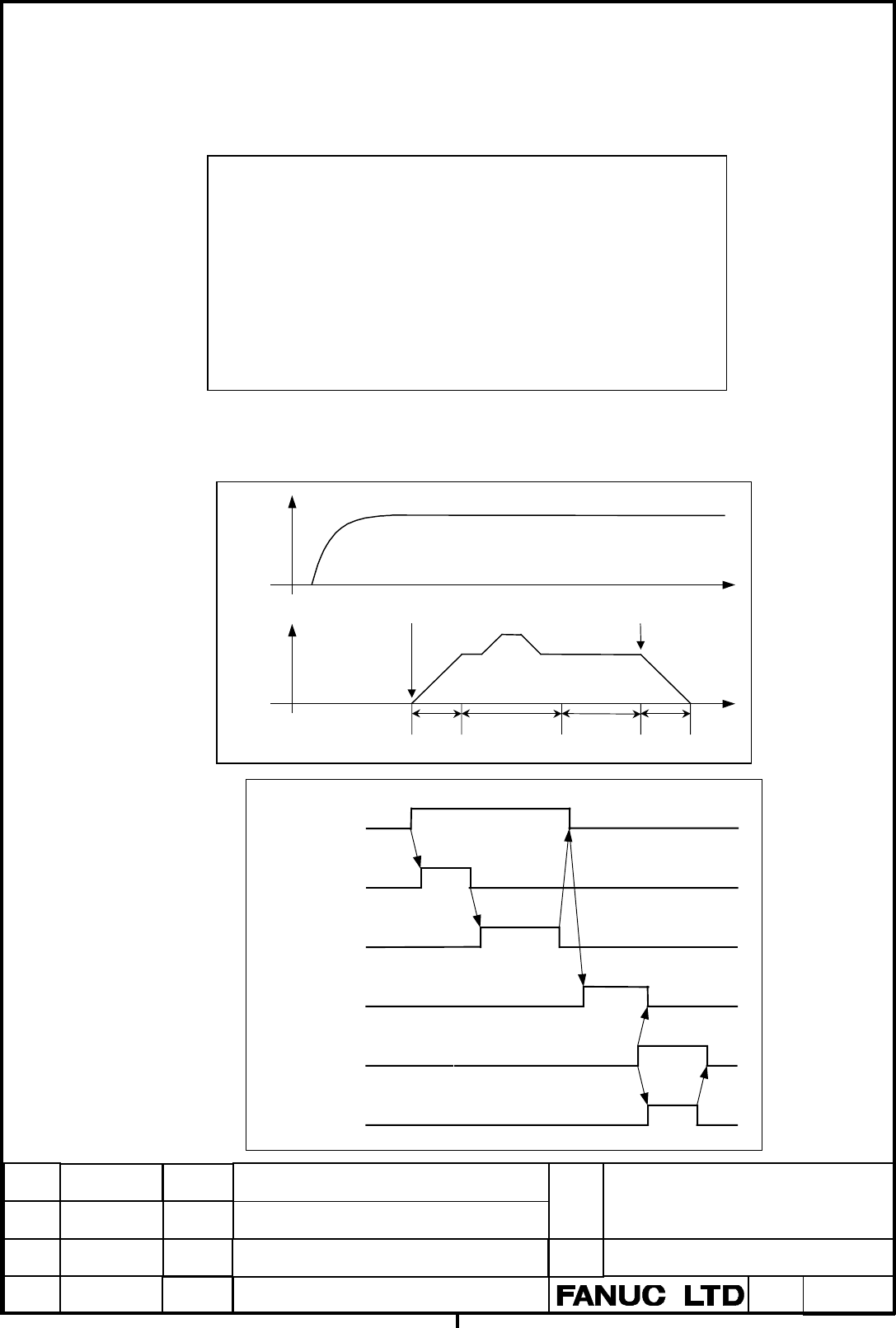

Command sequence
Synchronization
cancellation command
Synchronization start command
Workpiece-
axis speed
Synchro-
nization
state
A
ccele-
ration
Decele-
ration
Spindle
speed
A
utomatic
phase synchro-
nization
G80R2
command execution
Synchronization-set signal
Deceleration
G81R2 command
execution
Acceleration
Automatic phase synchronization
