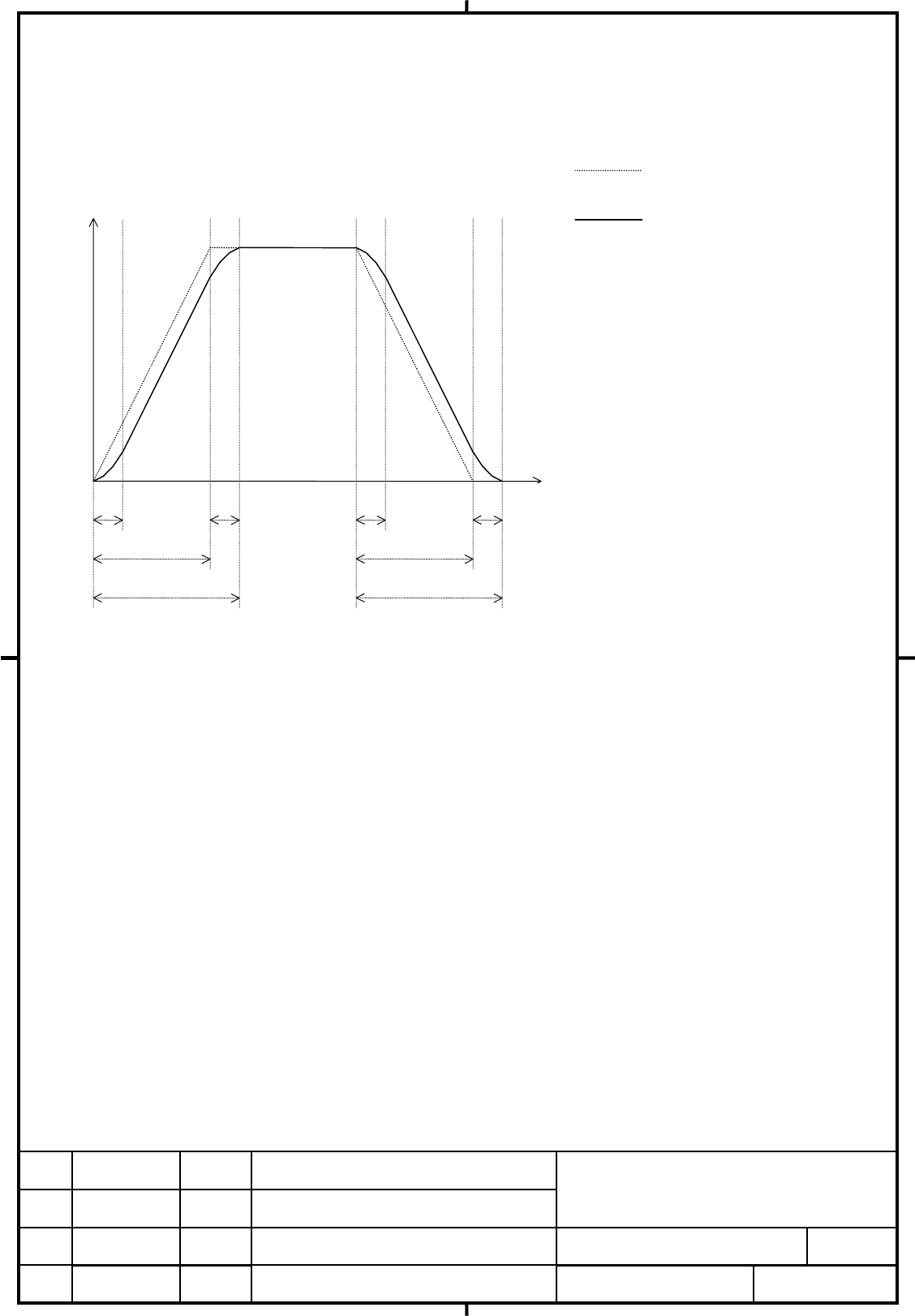

Linear type acceleration /
deceleration
Bell type acceleration /
deceleration
ta It depends on linear type
acceleration.
tb Bell type time constant
tc Acceleration / deceleration
time of bell type
tc = ta + tb
ta is not constant. It depends
on specified feedrate and time
constant of rapid traverse.
tb is decided by the axis.
In case of bell-shaped type acceleration / deceleration
The parameter No.1621 (Time constant t used for bell-shaped acceleration / deceleration
in rapid traverse for each axis ) of the axis that the value which is calculated by the above
expression is the smallest value becomes effective to the feedrate that is calculated as
linear type acceleration / deceleration.
When supposing that the feedrate is F, the acceleration at linear type is A and the time
constant of bell-shaped type is T, the time for acceleration / deceleration is as follows.
Time for acceleration / deceleration = F / A ( in case of linear type )
= F / A + T ( in case of bell-shaped type )
tbtb
tb
tb
ta
ta
tc
tc
Feedrate
Time
Previous page
Next page
