AI contour control, Specifications Additional Manual Page 26
Additional Manual
TITLE
FANUC
S
er
i
es
16/18
-
MC
,
16i/18i
-
MA
AI contour control function
Specifications
EDIT. DATE DESIG. DESCRIPTION
FANUC LTD
SHEET
26/ 32
DRAW. NO.
A-63512EN
CUST.
5616 The override value when beginning the near basic circle override 2 (OVR2)
5617 The override value when beginning the near basic circle override 3 (OVR3)
5618 The override value when beginning the near basic circle override 4 (OVR4)
5619 The override value when beginning the near basic circle override 5 (OVR5)
5620 The minimum override value in the involute interpolation (OVRlo)
Data type : Byte
Unit of data : 1 %
Valid range : 0 to 100

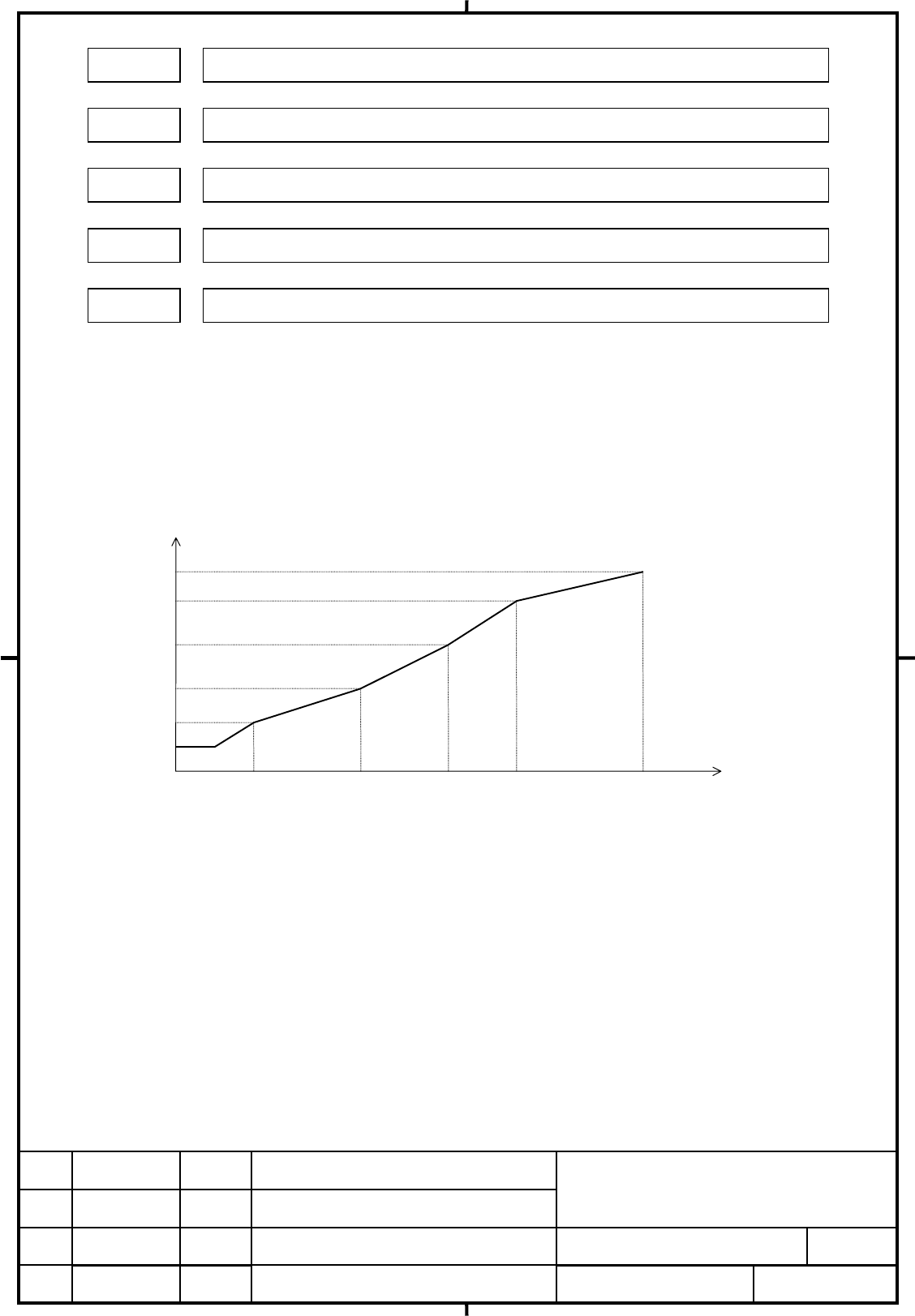

Rlmt1 - Rlmt5 and OVR2 - OVR5 of the following figure are set with the near basic circle
override.
The size relation of the curvature radius value Rlmt1 - Rlmt5 and the override value OVR2 -
OVR5 must be as follows. When this relation is not satisfied, the near basic circle override is
invalid.
Rlmt1 > Rlmt2 > Rlmt3 > Rlmt4 > Rlmt5 > 0
100 > OVR2 > OVR3 > OVR4 > OVR5 > 0
When the setting of the minimum override value (OVRlo) in the involute interpolation is 0,
the cutter compensation inner offset override and the near basic circle override are invalid.
Curvature radius
Rlmt2Rlmt5 Rlmt1Rlmt3Rlmt4
OVRlo
Override value
100
OVR2
OVR3
OVR4
OVR5
