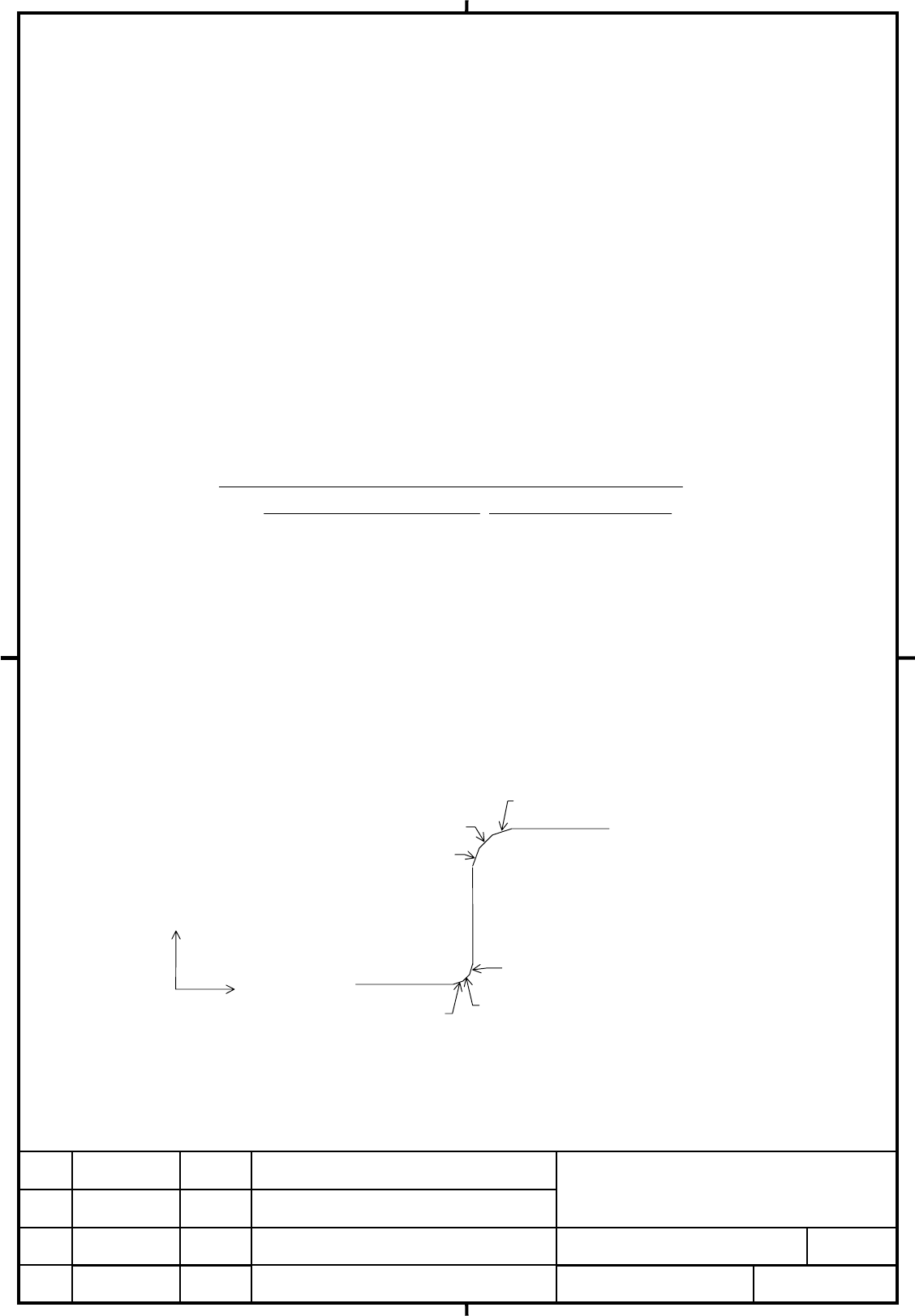

2.5 Feedrate clamp based on acceleration

As shown below, when a curve is formed by very short successive line segments, there is no

significant feedrate difference along each axis at each corner. Consequently, the tool need not

be decelerated to compensate for feedrate differences. When taken as a whole, however,

successive feedrate differences generate a large acceleration along each axis.

In this case, the tool must be decelerated to minimize the stress and strain imposed on the

machine, as well as the machining error that may result from such excessive acceleration. The

tool is decelerated to the feedrate at which the acceleration along each axis, found from the

formula below, is equal to or less than a specified allowable acceleration.

The allowable acceleration is determined from a maximum cutting feedrate (set in parameter

No.1432) and the time needed to reach the maximum cutting feedrate (set in parameter

No.1785).

Acceleration along each axis =

feedrate difference along each axis at a corner

max

travel in the previous block

travel in the next block













The reduced feedrate required for each corner is calculated. The tool is decelerated to the

decreased feedrate found at either the start point or the end point of each block, whichever is

smaller.

(Example) In the example shown below, the tool is decelerated from N2 to N4 and from N6 to

N8 because the acceleration (as indicated by the dashed-line inclinations in the

feedrate graphs) is large.
