15. CUSTOM MACRO

317

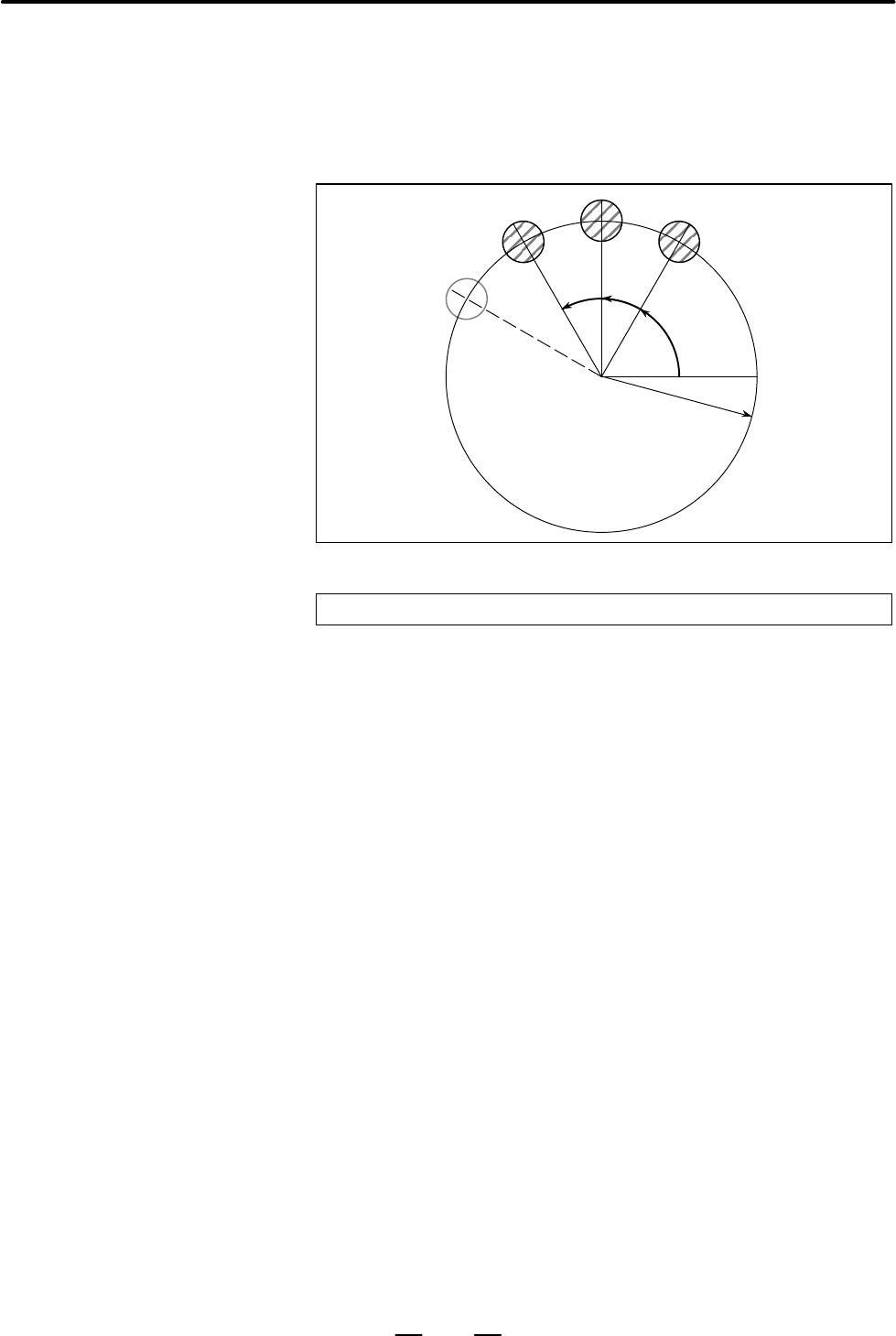

A macro is created which drills H holes at intervals of B degrees after a

start angle of A degrees along the periphery of a circle with radius I.

The center of the circle is (X,Y). Commands can be specified in either

the absolute or incremental mode. To drill in the clockwise direction,

specify a negative value for B.

H=3

H=4

H=2

H=1

Center (X,Y)

Radius I

G65 P9100 X x Y y Z z R r F f I i A a B b H h ;

X: X coordinate of the center of the circle

(absolute or incremental specification)(#24)

Y: Y coordinate of the center of the circle

(absolute or incremental specification)(#25)

Z : Hole depth (#26)

R: Coordinates of an approach point (#18)

F : Cutting feedrate (#9)

I : Radius of the circle (#4)

A: Drilling start angle(#1)

B: Incremental angle (clockwise when a negative value is specified)

(#2)

H: Number of holes (#11)

O0002;

G90 G92 X0 Y0 Z100.0;

G65 P9100 X100.0 Y50.0 R30.0 Z–50.0 F500 I100.0 A0 B45.0 H5;

M30;

Sample program

(bolt hole circle)

D Calling format

D Program calling a macro

program
