PROGRAMMING5. FEED FUNCTIONS

B–63514EN/01

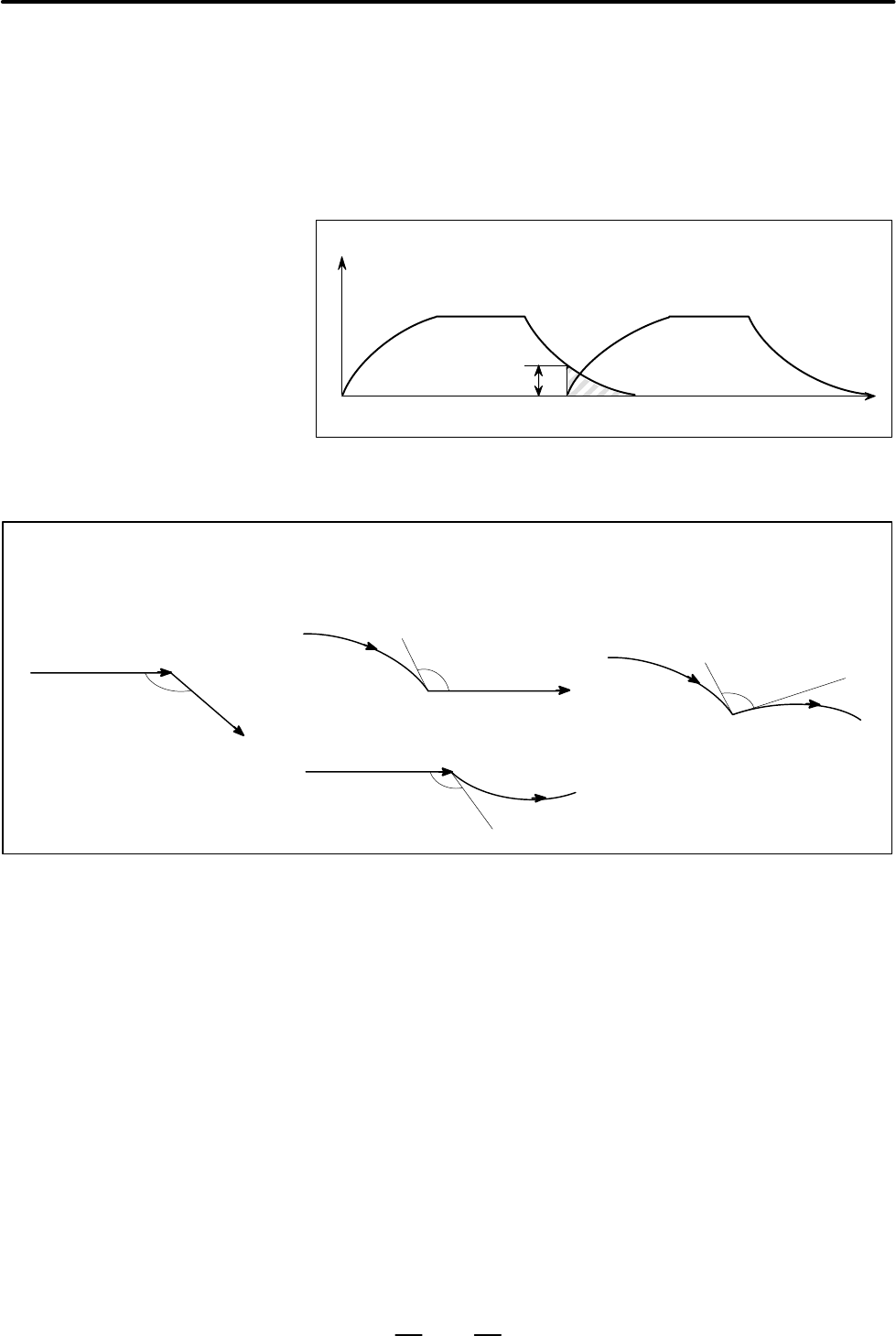

When the corner angle is smaller than the angle specified in the

parameter, the relationship between the feedrate and time is as shown

below. Although accumulated pulses equivalent to the hatched area

remain at time t, the next block is executed because the feedrate of the

automatic acceleration/deceleration circuit is smaller than the

parameter–set value. This function is effective only for movement on

the selected plane.

Feedrate V

Block A

Block B

Parameter–set feedrate

Time t

The angle between two blocks (blocks A and B) is assumed to be angle

θ, as shown below.

1. Between linear movements

2. Between linear and circular movements

(angle between the linear movement

and tangent to the circular movement)

3. Between circular movements

(angle between the tangents to

the circular movements)

The machining angle is compared with the angle specified in parameter

(No. 1740) for movements on the selected plane only. Machining

feedrates are compared with that specified in parameter (No. 1741) for

movement along the first and second axes on the selected plane only. This

means, when movement occurs along three or more axes, only that

movement along the first and second axes on the selected plane is

considered.

Corner roundness is determined by the angle and feedrate specified in

parameter (Nos. 1740 and 1741). To always make a sharp corner, set

the angle to zero and the feedrate to 180000 (equivalent to 180

degrees).

When G90 (exact stop) is specified, exact stop is performed irrespective

of the angle and feedrate specified in parameter (Nos. 1740 and 1741).

This function cannot be enabled for a single block or during dry run.

D Feedrate and time

D Angle between two

blocks

D Selected plane

D Corner roundness

D Exact stop

Limitations
