PROGRAMMING

B–63514EN/01

5. FEED FUNCTIONS

When cutter compensation is performed, the movement of the tool is

automatically decelerated at an inner corner and internal circular area.

This reduces the load on the cutter and produces a smoothly machined

surface.

When G62 is specified, and the tool path with cutter compensation

applied forms an inner corner, the feedrate is automatically overridden

at both ends of the corner.

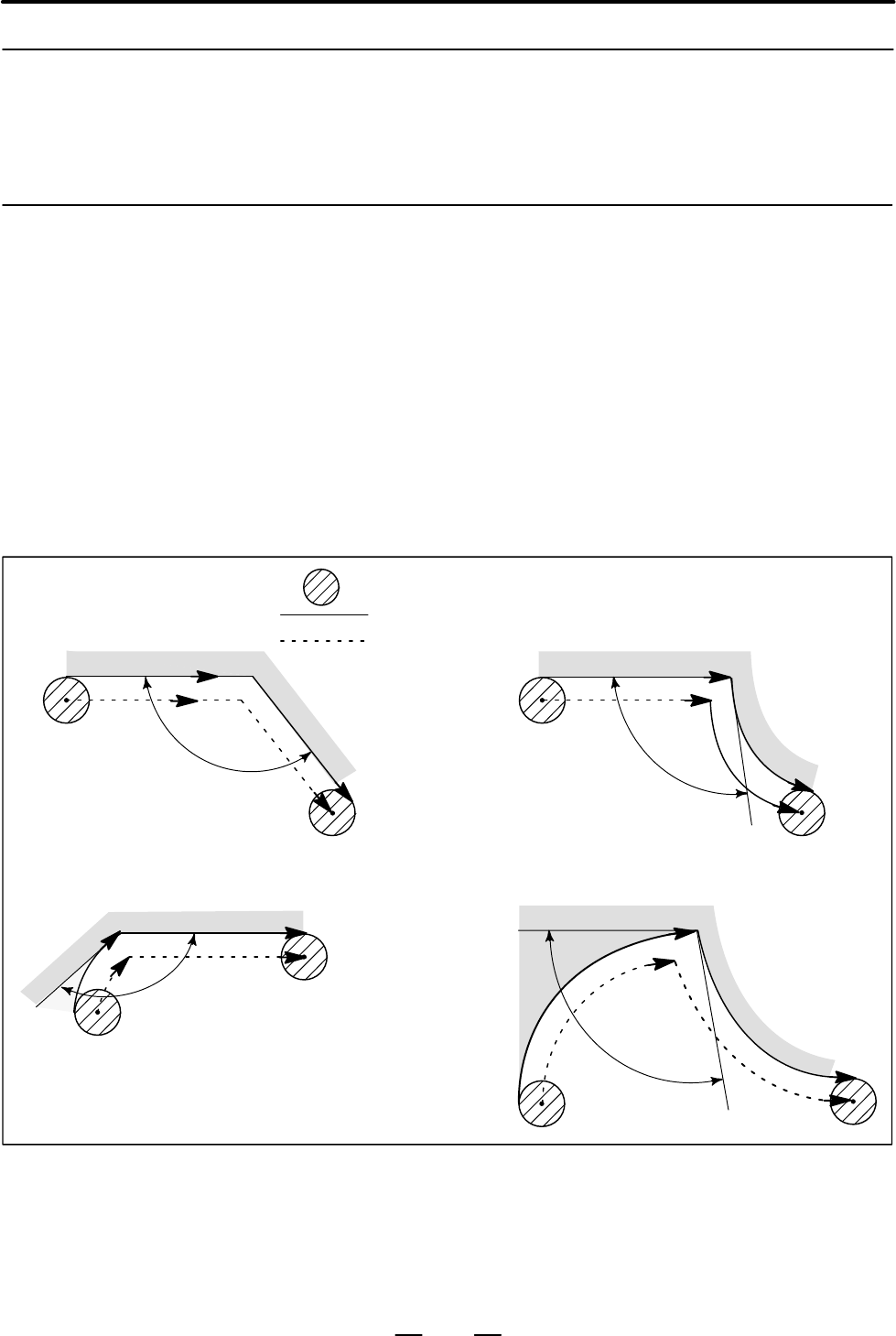

There are four types of inner corners (Fig. 5.4.2.1 (a)).

xθxθpx178_ in Fig. 5.4.2.1 (a)

θp is a value set with parameter No. 1711. When θ is approximately

equal to

θp, the inner corner is determined with an error of 0.001,or

less.

:Cutter center path

:Tool

:Programmed path

1. Straight line–straight line 2. Straight line–arc

3. Arc–straight line 4. Arc–arc

Fig. 5.4.2.1 (a) Inner corner

5.4.2

Automatic Corner

Override

5.4.2.1

Automatic Override for

Inner Corners (G62)

Explanations

D Override condition
