3.2 Piston Lathe
* Cutting Sequence
(1) The piston outside is cut by rotating the spindle to move the tool back and forth along the Y axis. By feeding
the tool along the Z axis, the piston outside is gradually cut deeper.
(2) Both Y axis and C axis use the Suspension mode or the Continuation mode of the Learning control. When
the command of Y axis gradually changes, Y axis should use the Continuation mode of the Preview
repetitive control. If changing rate of the command is small, the Continuation mode of the Learning control
might be sufficient for Y axis.
Oval cross Section
Z axis
Piston axis
Double slide mechanism
Piston Work

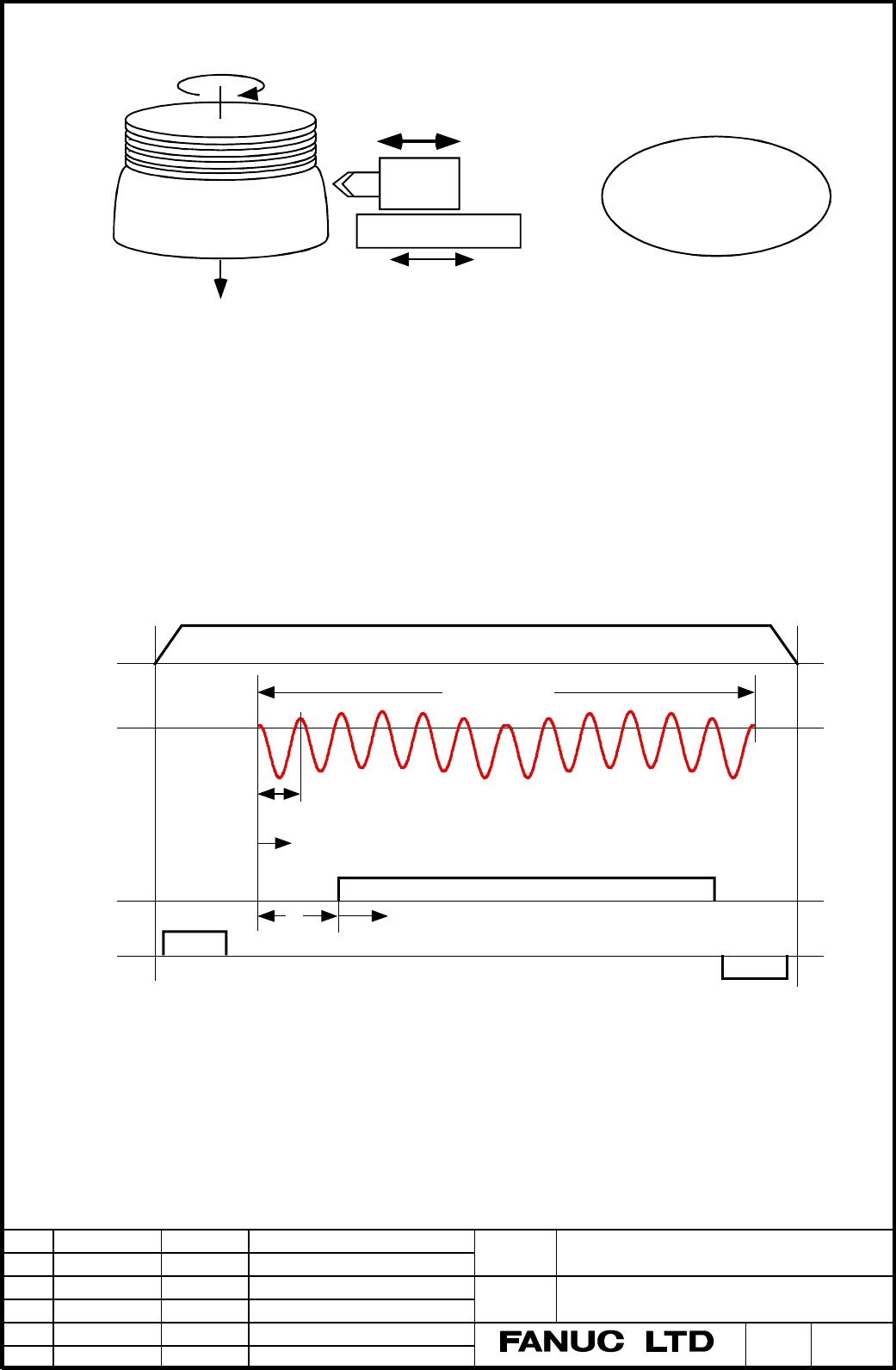

Fi
g
. 3.2.1 Confi
g
uration example of piston lathe
Y axis
X axis
C axis
Y axis
Z axis
X axis
G05 endG05 start
Approach
Retract
Command data period PRIOD
Y axis Learning start
Cutting start
Ly should be longer than the the time the
learning complete to minimize the error.
Fig. 3.2.2 Movement of the tool along each axis when processing
Ly
Repetitive count
RPTCT
