2.NOTES ON INSTALLATION MOTOR TYPES AND USAGE B-65312EN/01
- 8 -

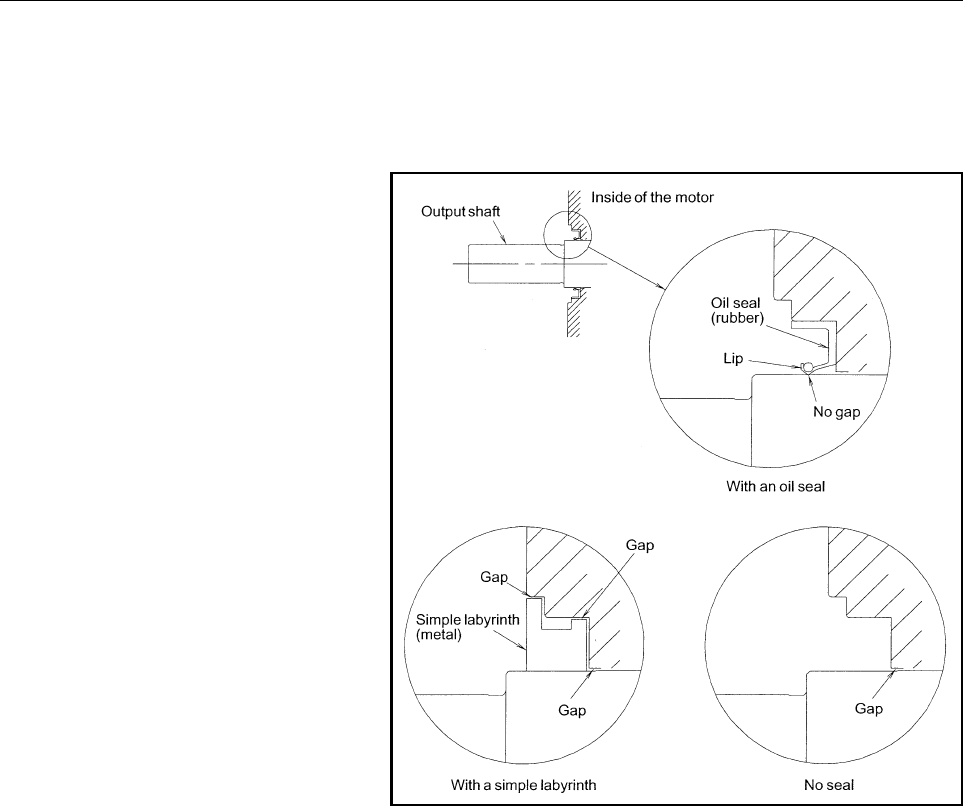

7 Output shaft seal
To prevent cutting lubricant or dust from penetrating inside the
motor, one of the following output shaft seals is provided on the
output shaft. (For the use and applicable motors, see Chapter 1,
"MOTOR TYPES.")
For those models with an oil seal, ensure that the surface of the
lubricant is below the lip of the oil seal.
If a simple labyrinth is used as the output shaft seal (high-speed
model) or if no seal is provided (foot mounting type), ensure that
lubricant does not splash onto the flange surface. (If such a
motor is directly mounted on a gear box, the lubricant may
gradually penetrate inside the motor even when no lubricant
splashes on flange surface, thus resulting in motor failure.
Therefore, do not mount such a motor on a gear box directly.
