AC Spindle Motor Beta i Descriptions Page 27

Descriptions
B-65312EN/01 MOTOR TYPES AND USAGE 2.NOTES ON INSTALLATION
- 13 -
*1 The nut used to fasten the connector to the terminal box
must be smaller than the size listed below. (Any larger nut
interferes with the terminal box.) For the diameter of the
cable hole in each model, refer to the outside dimension
drawing of the respective models.
Cable hole
diameter
Outside diameter e Width t
φ42.5 mm 53 mm (maximum) 9 mm (maximum)

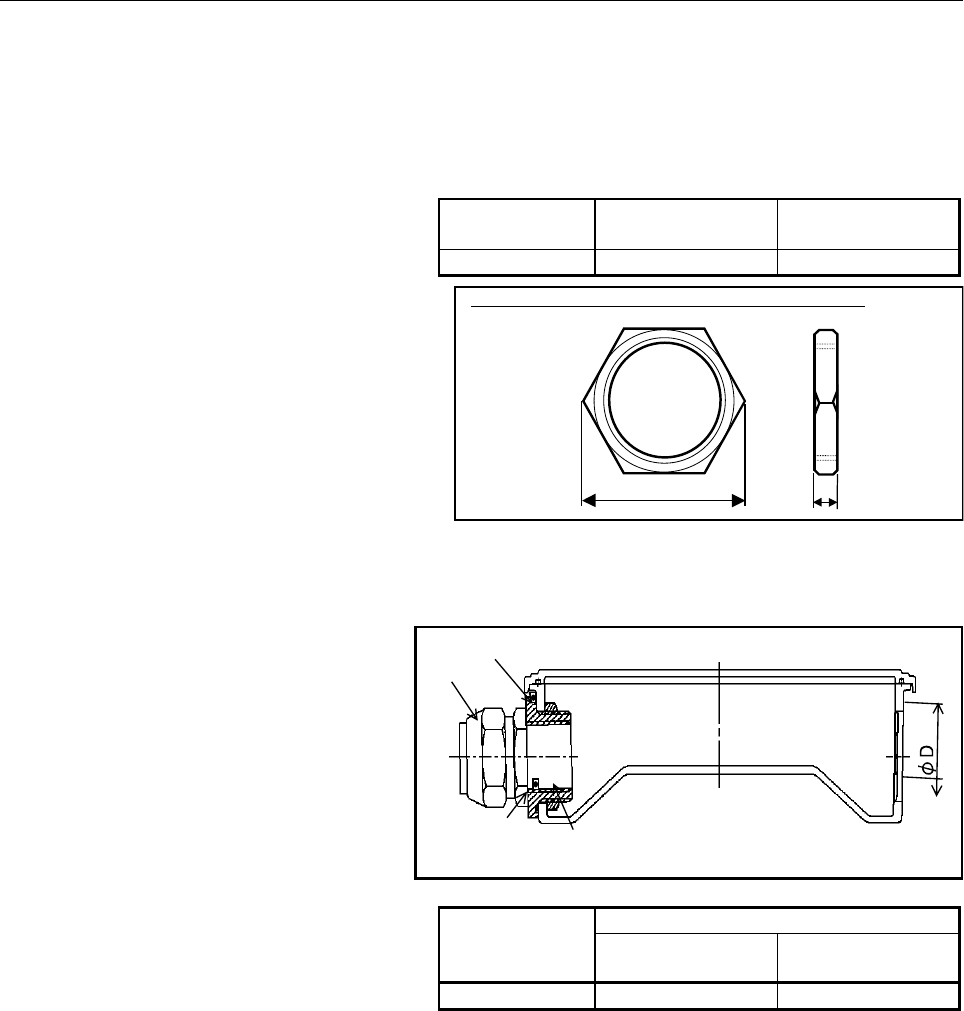

Outside dimensions of the conduit-connector retaining nut
e
t
*2 If the connector you want to use is smaller than the cable
hole on the terminal box, prepare the bushing, nut, and O-
ring shown below.
O-ring
Nut
Bushing
Connector
O-ring codeCable hole
diameter
φ
φφ
φD
JIS B 2401 ISO 3601-1
φ42.5 mm P46 C0462G
