  2. Analog Input Separate Detector Interface Unit

Analog Input Separate Detector Interface Unit Additional Manual Page 15

Additional Manual
Title
Sheet
Draw. No.
A
nalog input
separate detector interface unit
15/18
FANUC LTD
A-56731E-0099
Description Desig. Date Edit.
01 050714 Matsukane

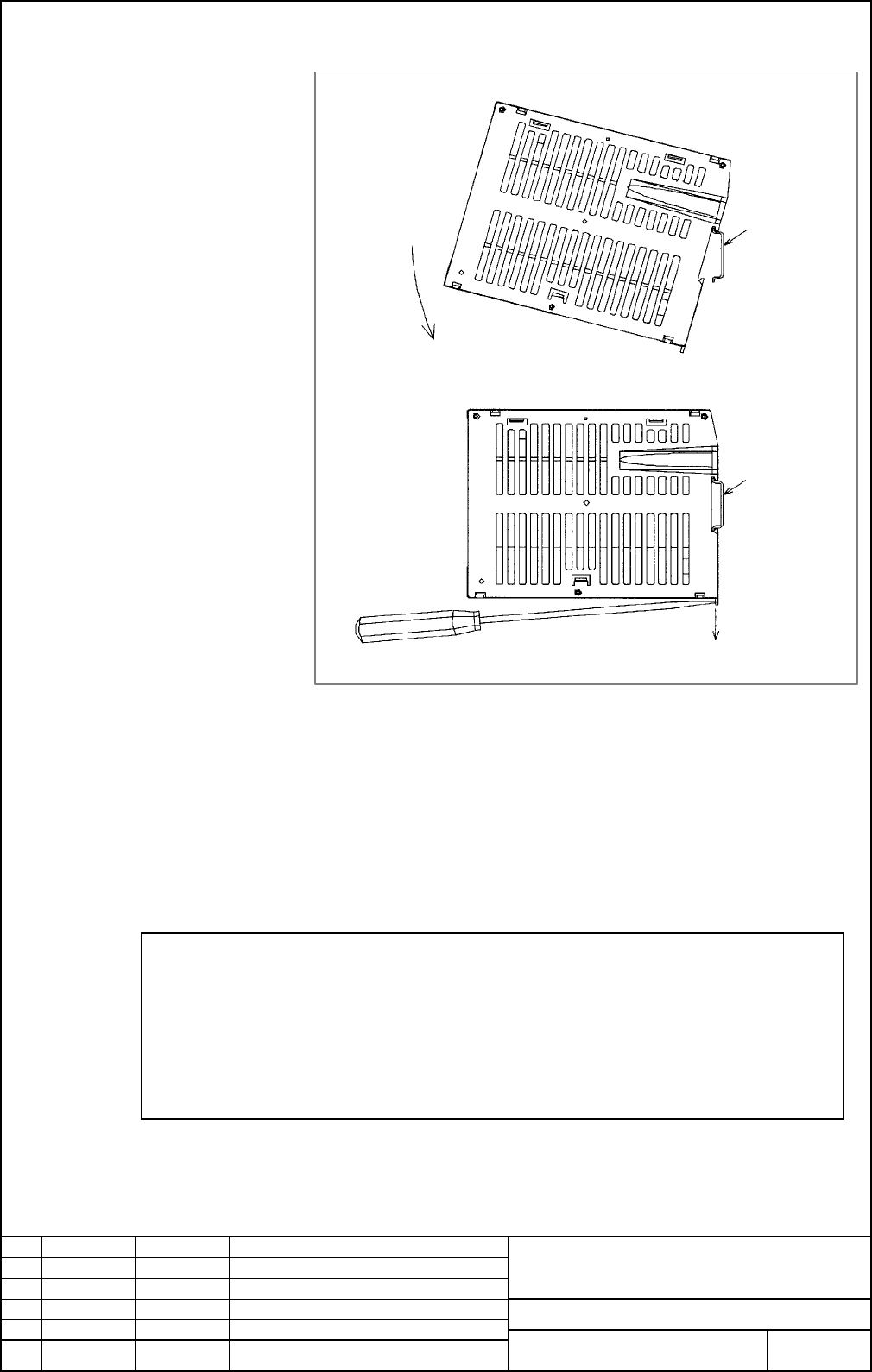

Installing the unit on the DIN rail
Installing the unit
1. Hook the unit on the top of the DIN rail.
2. Push the unit in until it clicks.
Removing the unit
1. Push down the lock by using a screwdriver.
2. Remove the unit by pulling the lower end of the unit in front.
Installing the uni
t
on th DIN rail
Removing the
unit from the
DIN rail
DIN rail
DIN rail
Caution
When removing the unit, be careful not to damage the lock by applying
excessive force. When installing and removing the unit, hold the upper and
lower ends of the unit so that stress is not applied to the side (that is surface
with the slits) of the unit.
Previous page
Next page
