  2. Fanuc Series 30i, Tilted Working Plane Command, The enhancement in tool axis direction command

Fanuc Series 30i, Tilted Working Plane Command, The enhancement in tool axis direction command Additional Manual Page 8

Additional Manual
Edit
Apprv.
Desig.
Sheet
TITLE
Draw
No.
Date
Design
Descri
p
tion
Date
FANUC Series 30i
TILTED WORKING PLANE COMMAND
The enhancement in tool axis direction command
A
- 79449
2002.02.20
T.Sasaki
8
/
12
S.Ide
(3) The case that the table moving angle is smaller and the movement range is
specified (i):
(PRM19608#5=0, PRM19741=355.0, PRM19742=5.0, PRM19743=0,
PRM19744=0)
"Output angles": (Tool rotary axis 330.0, Table rotary axis 90.0)
The computed angle of table rotary axis that is nearest to the
current angle is adopted first. Then, among the computed angles
of tool rotary axis that are paired with that angle, one that is
nearest to the current angle within the specified range is adopted.

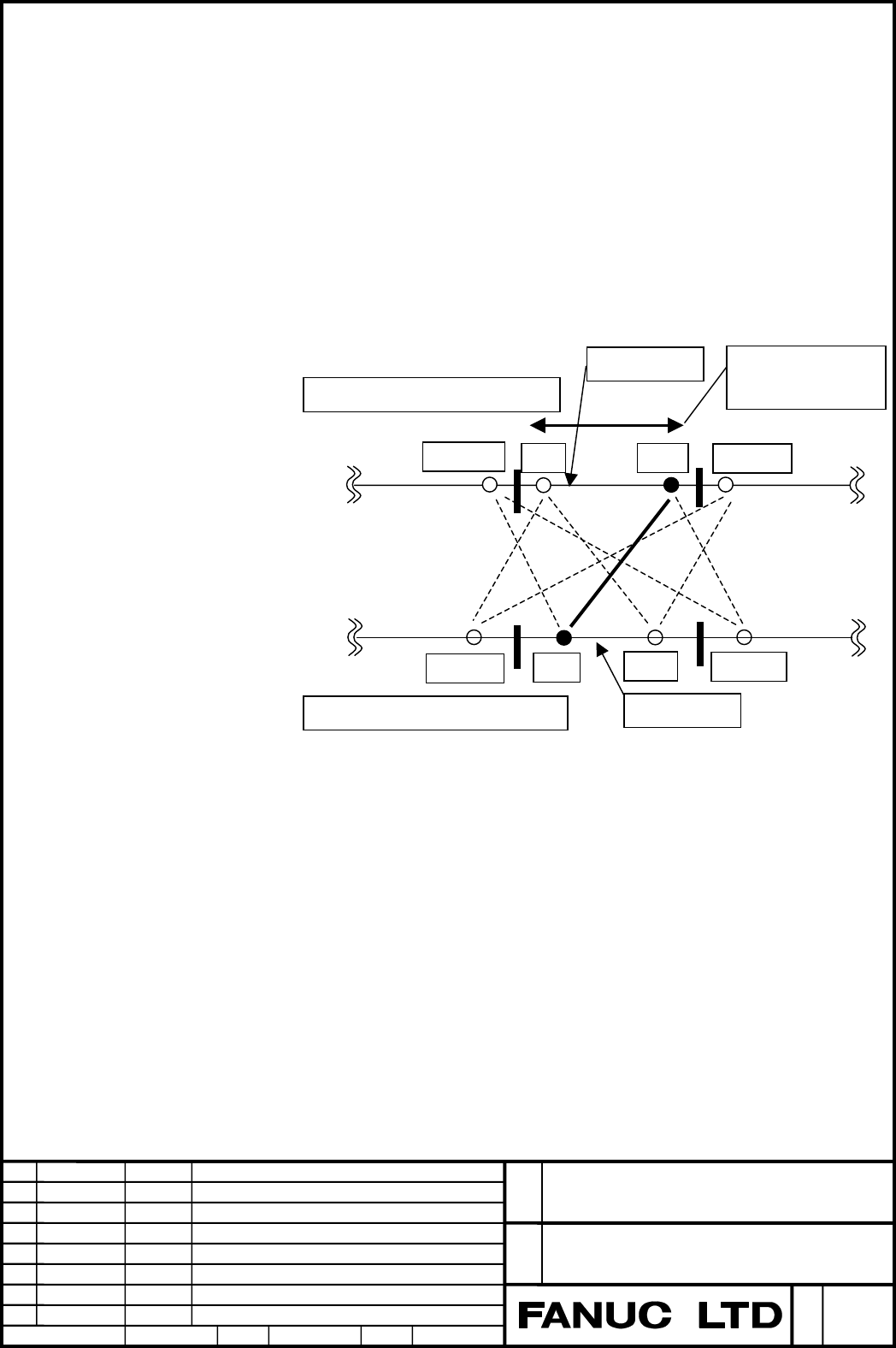

0
360
0
360
The computed angle
within this range
is adopted.
Computed angles of tool rotary axis
Computed angles of table rotary axis
Current angle
Current angle
330-360
30
330
30+360
90
270
270-360
90+360
Previous page
Next page
