Connection manual (Hardware)
B–63503EN/02
B. 20–PIN INTERFACE CONNECTORS AND CABLES
240
Item Specification
FANUC specification number A66L–0001–0403A66L–0001–0402
Manufacturer Oki Electric Cable Co., Ltd.
B–conductorA–conductorB–conductorA–conductor
Finished
Rating 80_C 30V
assembly
performance
Standard Shall comply with UL STYLE 20236 and CSA LL43109 AWM I/II A 80°C
30V FT–1.
Flame resistance Shall comply with VW–1 and FT–1.
Electrical Conductor resistance 103 or lower 25.5 or lower 103 or lower 15.0 or lower
performance Ω/km (20°C)
Insulation resistance
MΩ/km (20°C)
1 or higher
Dielectric strength
V–min
A. C 500
Insulation
performance
Tensile strength
N/mm
2
9.8 or higher
Elongation % 100 or higher
Tensile strength after aging
%
At least 70% of that before aging
Elongation after aging % At least 65% of that before aging
Aging condition For 168 hours at 113°C
Sheathing
performance
Tensile strength
N/mm
2
9.8 or higher
Elongation % 100 or higher
Tensile strength after aging
%
At least 70% of that before aging
Elongation after aging % At least 65% of that before aging
Aging condition For 168 hours at 113°C

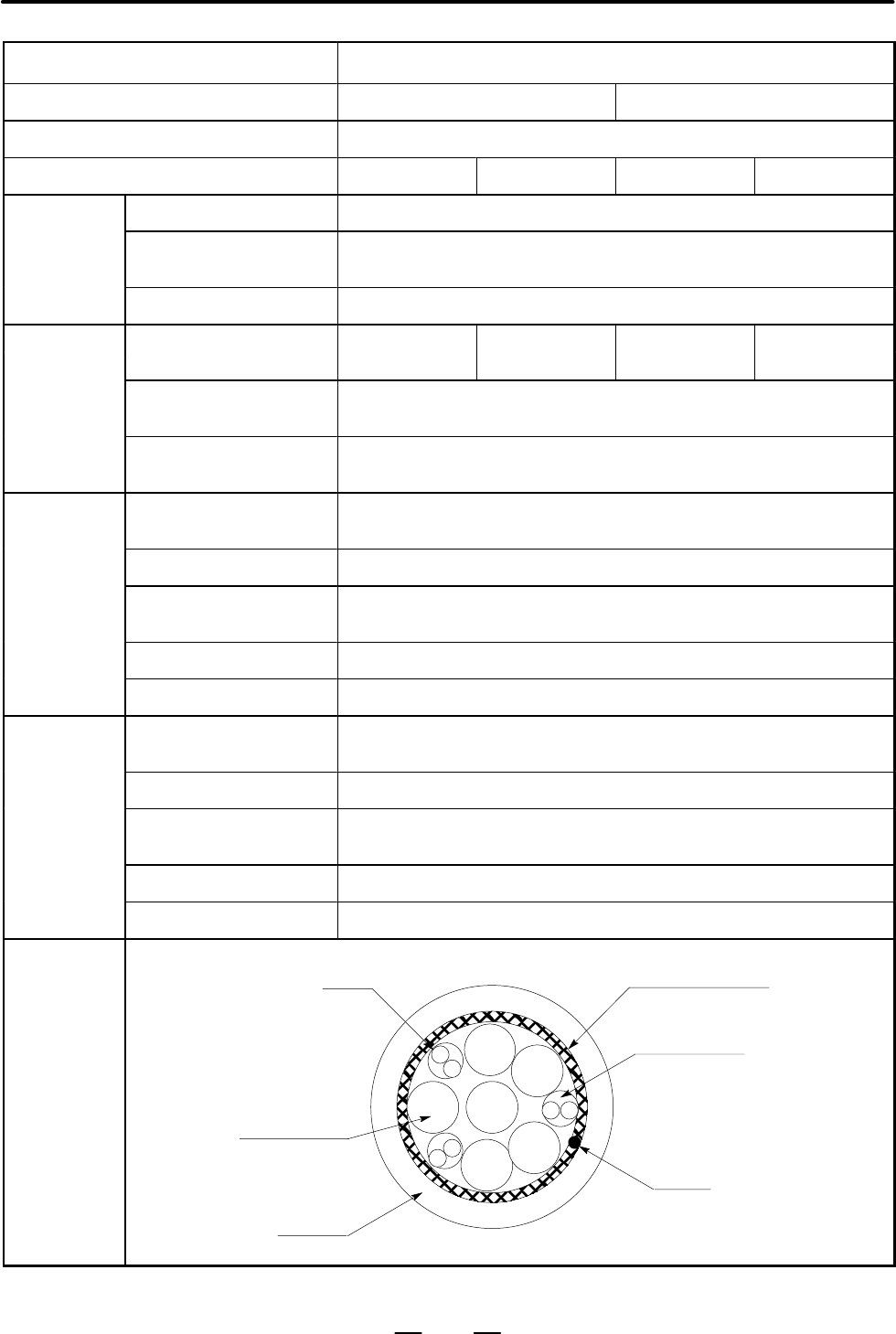

Cable cross
section
Red
Red
White
Red
Black
Black
Black
Black
Red
White
Black
Red
Tape Braided shielding
Twisted pair A
Solid wire B
Sheath
Drain
