D. OPTICAL FIBER CABLE
251
D Fix the reinforcing cover of the external cable by using a cable
clamp, as shown in Fig. D.4, to prevent the weight of the optical
fiber cable from being applied directly to the connecting part of the
optical connector.
(Recommended cable clamp):
Recommended cable clamps are listed below. Use a clamp
that grasps the optical cable lightly; the clamp should not
apply excessive pressure to the cable.
For an external cable:
CKN–13SP (with sponge)(Kitagawa Industry Co., Ltd.)
Optical connector
Optical fiber cord
Reinforcing cover of external
cable or cord binding portion of
internal cord type cable
Bending radius of 25 mm or more
(Make the bending radius as large as
possible.)
Cable clamp
Bending radius of 50 mm or more (for reinforcing cover)
Bending radius of 25 mm or more (for cord binding portion)
(Make the bending radius as large as possible.)

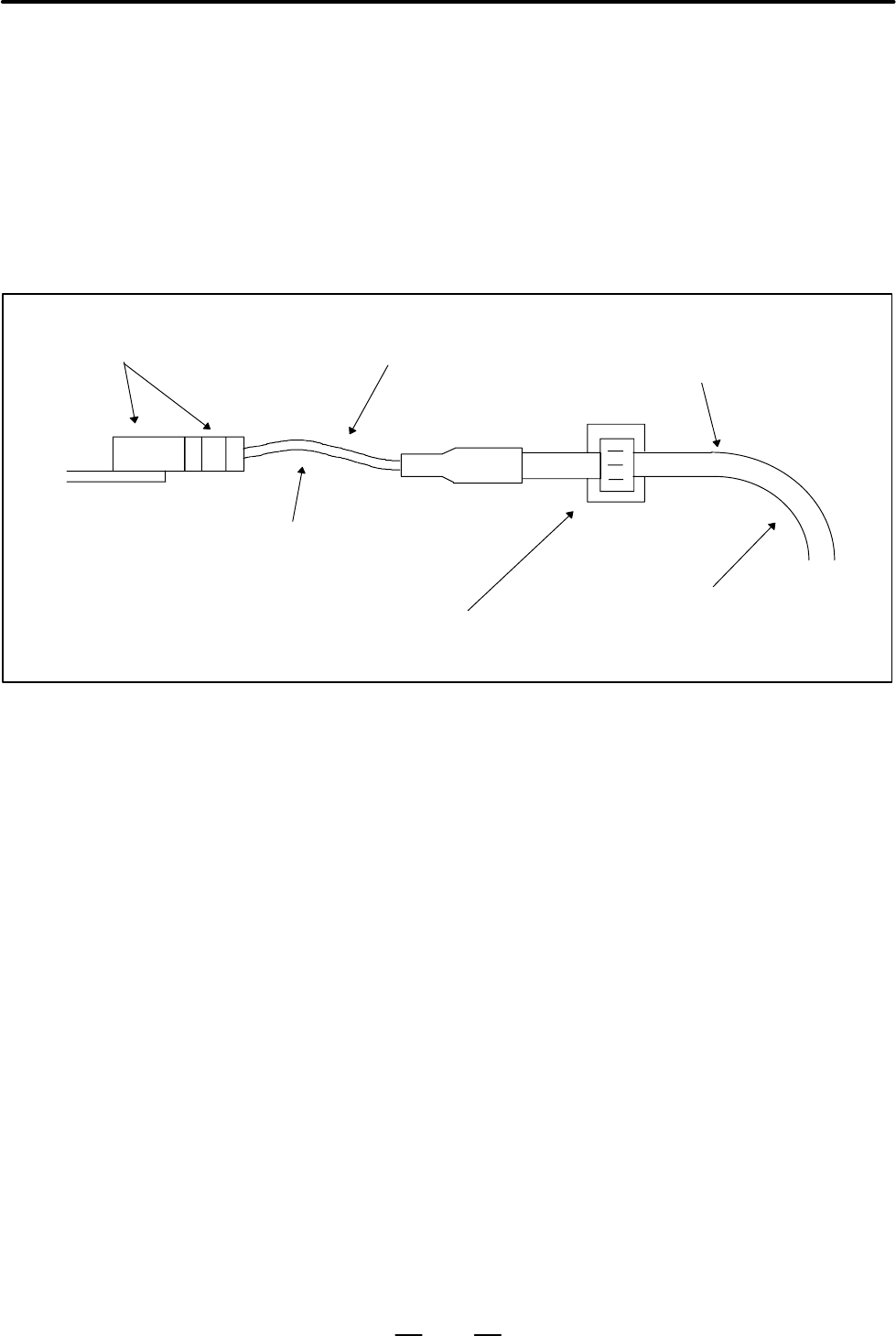

Fig. D.4 Fixing the cable with a clamp
D Any superfluous portion of the cable may be wound into a loops.
Should this prove necessary, make sure the diameter of each loop
is at least 150 mm (for an external cable). Winding the cable into
smaller loops may produce sharp curves that exceed the specified
bending radius limit without the user being aware. Such bending
can result in a greater transmission loss, ultimately leading to a
communication failure.
D When using a nylon band (cable tie) as a cable clamp, follow the
instructions given below. Also, take care not to apply a bending
force to one particular part of the cable when fixing it with a clamp.
Failing to clamp the cable correctly may cut or damage it.
External cable:
Do not clamp the uncovered portion of the cable with a nylon band.
When clamping the cable by the reinforcing cover, the clamping
force is not an important factor to consider. However, ensure that
the clamping force is as small as possible to ensure that the
reinforcing cover is not deformed by the clamping. If possible, the
clamping force should be 5 kg or less.
