3.4. Mode-4 : Cylindrical(path 1)
Mode-4 : Cylindrical(path 1)Mode-4 : Cylindrical(path 1)
Mode-4 : Cylindrical(path 1)
㧙
㧙㧙
㧙
Non cylindrical(path 2)
Non cylindrical(path 2)Non cylindrical(path 2)
Non cylindrical(path 2)
ISO programming operation in path 1, and binary programming operation in path 2 are
executed.
The rotary axis (C,A axes) for workpiece must be programmed by binary in path 2.
Real rotary axis for workpiece, exist in path 1, is driven by binary command of path 2 with using
“Binary synchronous operation” function.
To effect “Binary synchronous operation” function, system parameter No. XXXX#X(“BSYNC”,
No. is decided later) must be set to 1, and DI signal(“SYNC”, address is decided later) should be
ON.
The DI signal(“SYNC”) must be kept off except for mode-4.
㧔
Note
㧕
1. In this mode(Mode-4), high speed interpolation (1ms interval interpolation) can not
be executed for the master A,C axes (in path 2).
2. System parameter No.7505#0(HSC) always must be set to 0 in path 2.
3. Servo side learning function is executed in each 1ms.
4.
4.4.
4. Caution
CautionCaution
Caution
Generally the machining time of path 1 and path 2 are not the same.
Therefore C,A axis commanded by binary data must be continued until the other head
terminates the machining even if the machining of it’s own head terminates.
To remove the grinder from workpiece in the path which the machining terminates faster,
the DI signal and system parameters are prepared( address of DI and No. of parameter are
decided later).
㧔

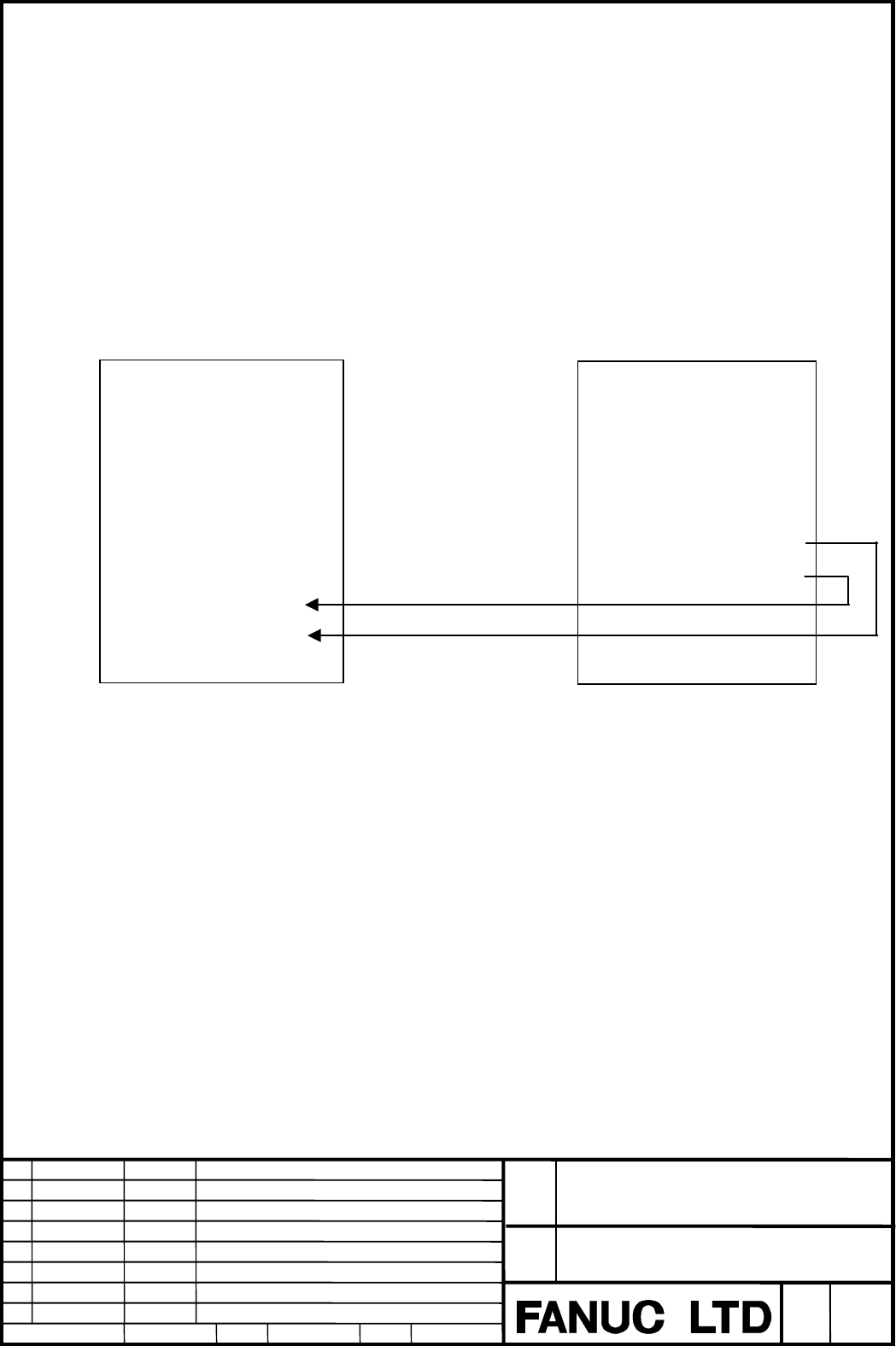

Path 1
㧕
O0001;
G00 X10.0; => X axis
: => Y axis
: => B axis
M30;
%
C axis
A axis
㧔
Path 2
㧕
O0002;
G00 X10.0; => X axis
M198 P2000; => Y axis
: => B axis
M30; => C axis
% => A axis
Param “BSYNC” 1
and
DI “SYNC” ON
Previous page
Next page
