1. Outline
1. Outline1. Outline
1. Outline
This function realizes various grinding, such as cylindrical grinding or non-cylindrical grinding
with dual grinding heads simultaneously.
The cylindrical grinding is commanded by ISO program because of it’s simple command,
and non-cylindrical grinding is commanded by binary program because of it’s complex command.
FANUC series 16i-TA with 2 path system controls those two grinder heads.
Path-1(Grinding Head 1)
X(1) axis
Z(1) axis
B(1) axis
C axis
A axis
Path-2(Grinding Head 2)
X(2) axis
Z(2) axis
B(2) axis
(C axis) dummy
(A axis) dummy
X(1),X(2),Z(1),Z(2) axes
㧦
Machining axis for head 1/ head 2
B(1),B(2) axes
㧦
Coolant control axes for head 1/head 2
C,A axes
㧦
Rotary axes with workpiece
(C,A axes)
㧦
Dummy rotary axes for path-2
(Note 1) Actual rotary axes for fixing workpiece (C,A axes) exist in path-1 side.Dummy Rotary
axes (C,A axes) is prepared in path-2 side for non-cylindrical grinding .
(Note 2) Binary programming operation with data server is executed by the way that the
M198 command calls out the binary program in data server.

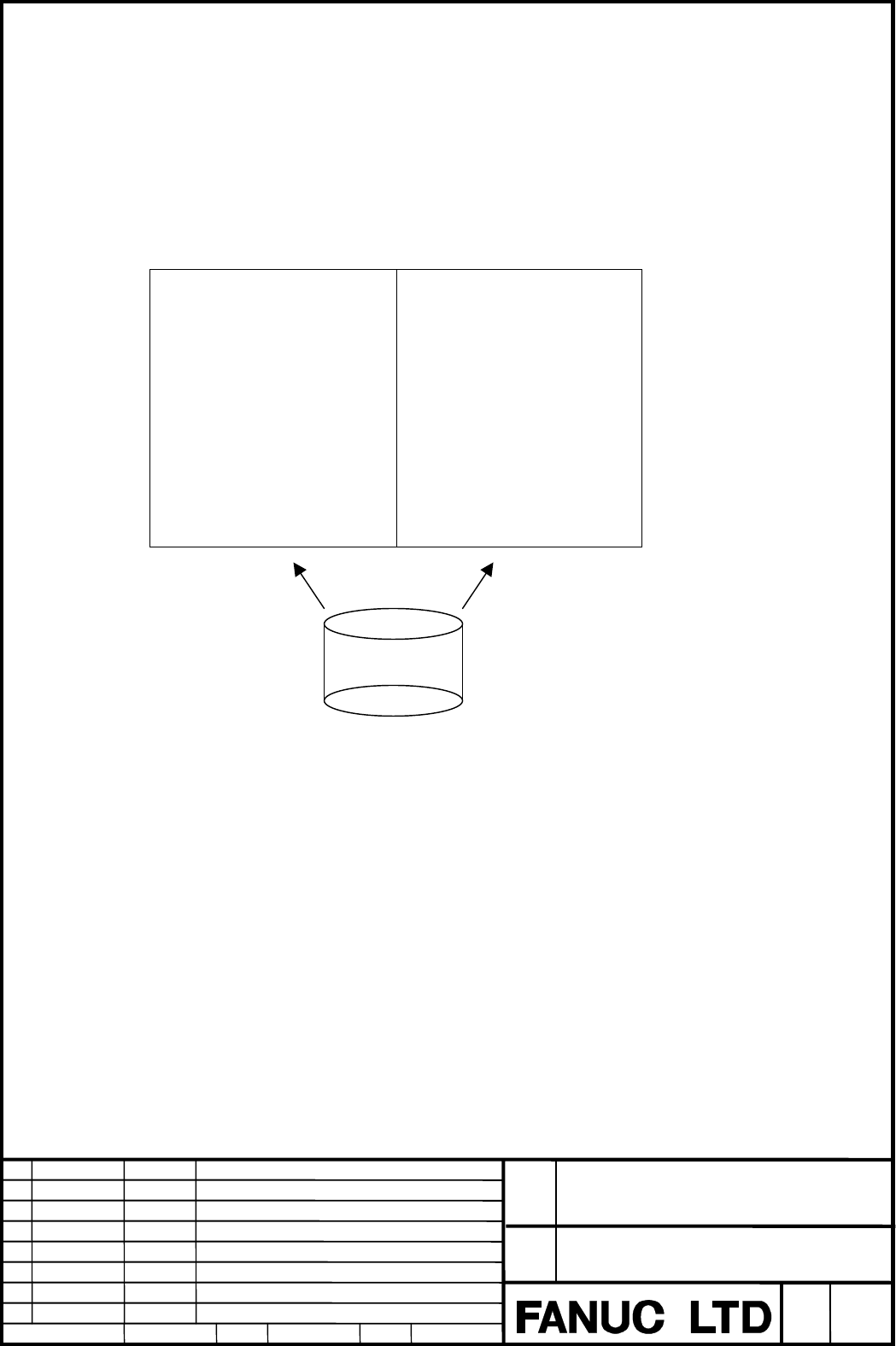

㧔
Axes construction
㧕
Data Server
Binary Program
