2.3. Binary synchronous operation
Binary synchronous operationBinary synchronous operation
Binary synchronous operation
In mode-4, non-cylindrical grinding is executed in path 2.
So binary data include C,A axes command must be programmed in path 2.
When C,A data is commanded in path 2, actual rotary axis for worpiece, C,A axes, in path 1
are driven by this “Binary synchronous operation” function.
To effect “Binary synchronous operation” function, system parameter No. XXXX#X(“BSYNC”,
No. is decided later) must be set to 1, and DI signal(“SYNC”, address is decided later) should be
ON.
The DI signal(“SYNC”) must be kept off except for mode-4.
㧔
Notes
㧕
1. High speed interpolation (1ms interval interpolation) can not be executed for the
master A,C axes (in path 2).
System parameter No.7505#0(HSC) always must be set to 0 in path 2.
2. Servo side learning function is executed in each 1ms.

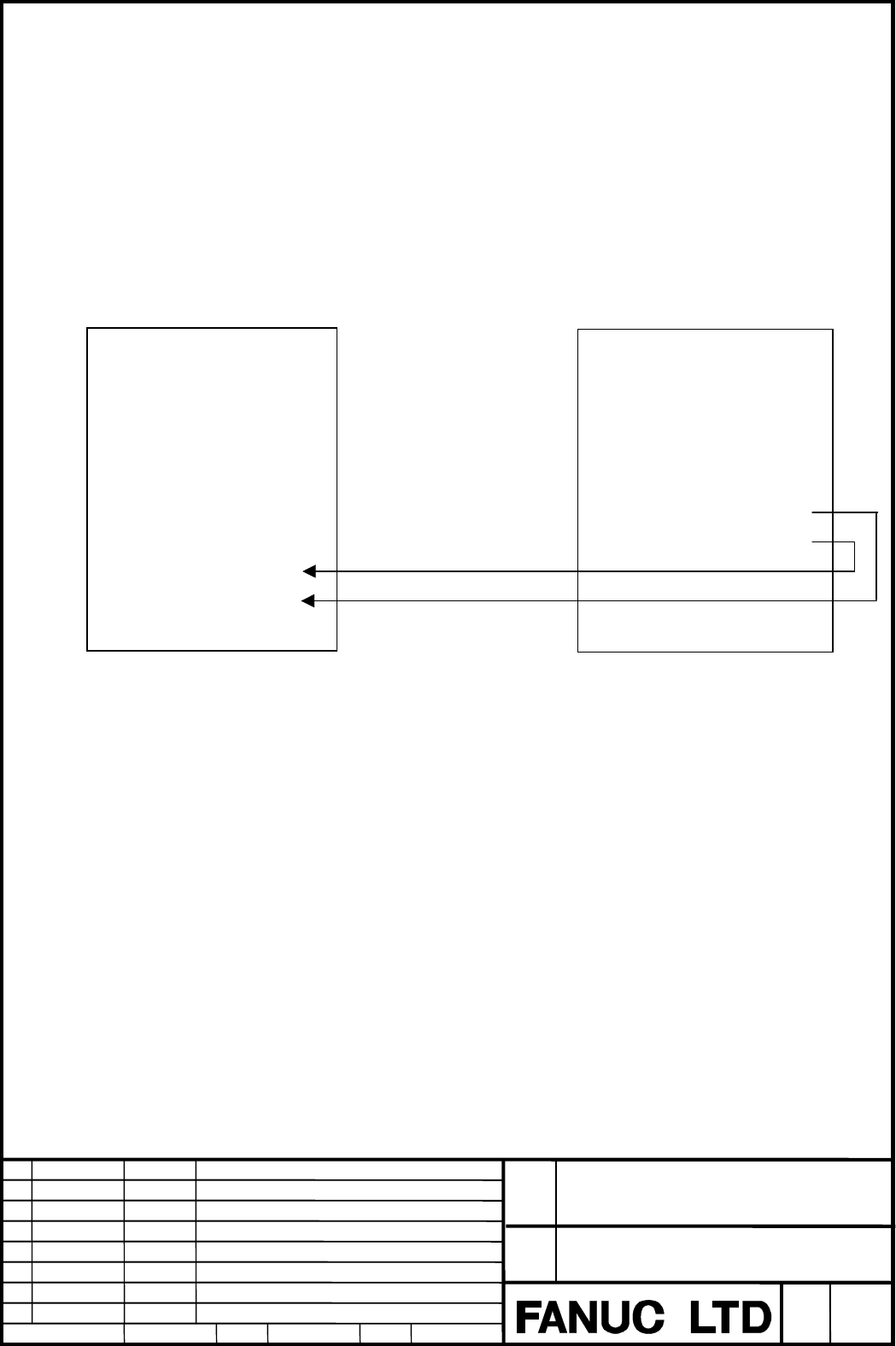

㧔
path 1
㧕
O0001;
G00 X10.0; =>
㨄
axis
: =>
㨅
axis
: =>
㧮
axis
M30;
%
㧯
axis
㧭
axis
㧔
path 2
㧕
O0002;
G00 X10.0; =>
㨄
axis
M198 P2000; =>
㨅
axis
: =>
㧮
axis
M30; => C axis
% => A axis
Param. “BSYNC” 1
and
DI “SYNC” ON
