FANUC Series 30i /31i /32i, Temporary Detaching of Tool Attachment/Detachment Function Additional Manual Page 6

Additional Manual
Edit
Apprv.Desig.
Date
Design
Date
FANUC Series 30
i
/
31
i
/
32
i
-MODEL A
Temporary detaching of tool
attachment/detachiment
A
-90396E
2006.1.6
6/13
Sheet
Title
Draw
No.
Descri
p
tion
Temporary detaching pod
The pod that is detached temporarily is treated as “Temporary detaching pod”. “Temporary
detaching pod” means the pot detached temporarily. It is the target of search for the empty
pod.
And it is not allowed to input the tool management number to a temporary detaching pod.
When above mentioned operation is performed, the warning message “Temporary
detachment pod” is displayed.
As for the temporary detaching pod, “DETACH” is displayed in the column of the
“TYPE-NO.” on the magazine screen.

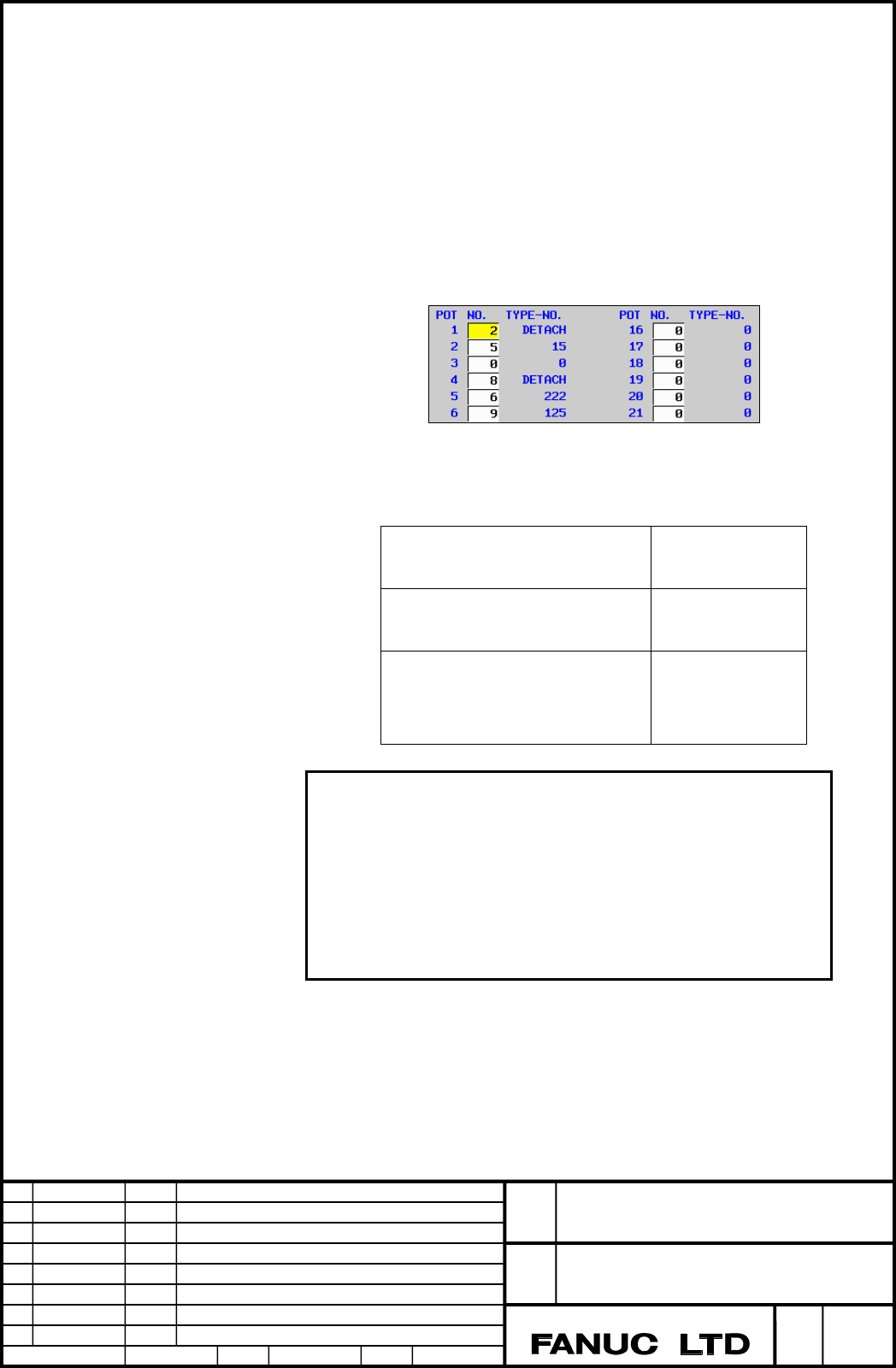

Fig. 1.1.(f) The display of temporary detaching pod
Perform the following operation to return a temporary detaching pot to empty pod.
Table 1.1.(c) Operation to make empty pod
Operation Tool management
data
Detach the tool with specifying the
temporary detaching pod.
Deleted
Delete with specifying the
temporary detaching pod or input
“0”.
Not deleted
Note
１．When tool detaching is performed with specifying the temporary
detaching pod, the signals are not output even if it is automatic
mode. And Tool detachment finish signal TLFDTA and Tool
detachment error signal TLEDTA are ignored.
２．Don’t invalidate temporary detaching function (Parameter TDT
（No.13206#0）= 0) under the condition that the temporary
detaching pod exists.
The tool management data of the temporary detaching tool
Ordinary editing operation is effective even if the tool management data is under the
condition of temporary detaching.
When the tool management data of temporary detaching tool is deleted or all tool
management data are deleted, the temporary detaching pod becomes empty pod.
