FANUC Series 30i/31i/32i-MODEL A, Guidance Screen for Tilted Working Plane Command, Specifications Additional Manual Page 13

Additional Manual

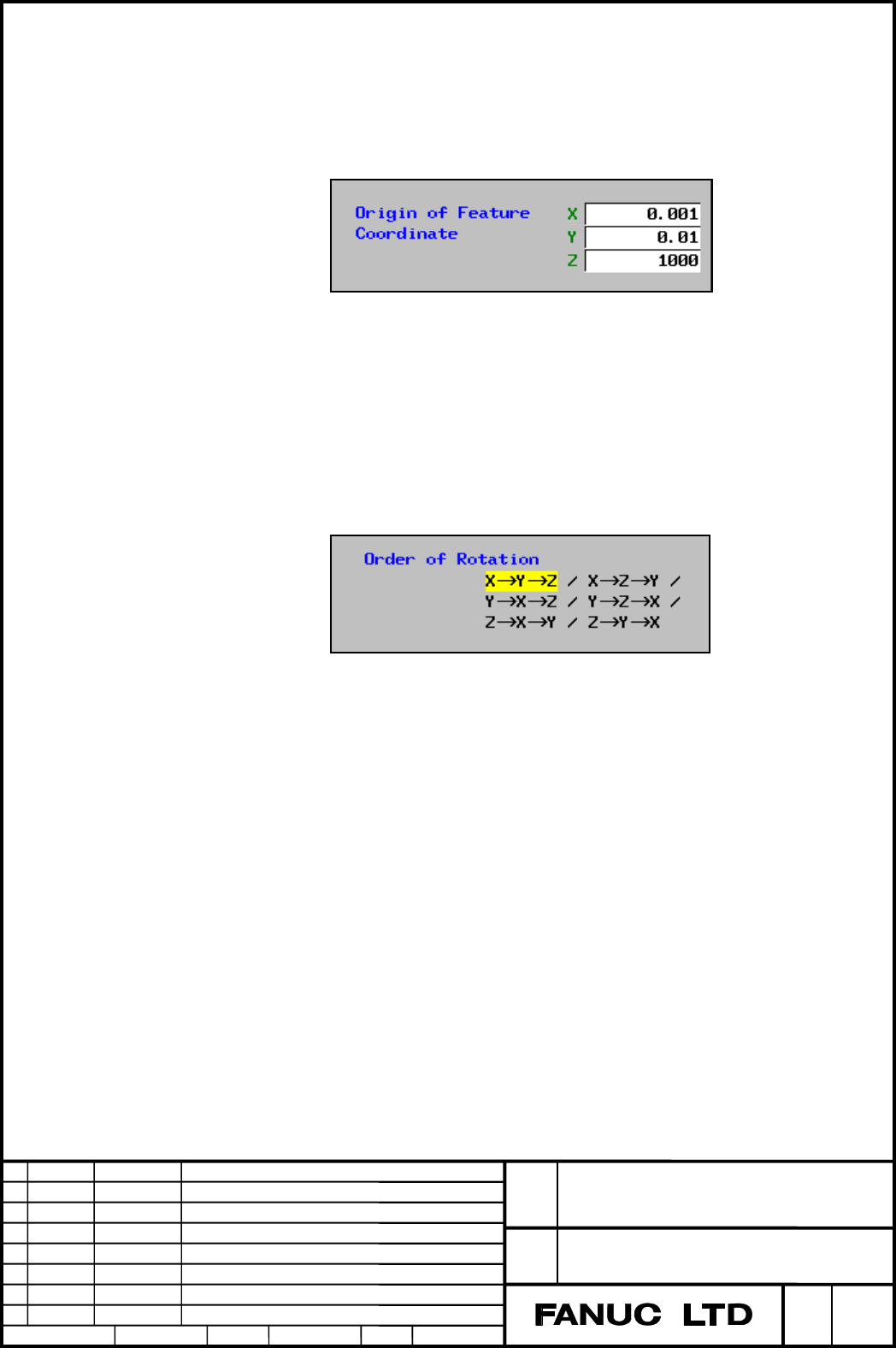

Parameter input
・Items where a value is input
1. With the cursor keys <↑> and <↓>, move the cursor to an item to
be set.
2. Key in a desired value then press the <INPUT> key.
Example) When the origin of a feature coordinate system is set as
shown above, addresses X, Y, and Z are as follows:
G68.2 X0.001 Y0.01 Z1000 ...
・Items where a selection is made from a list
1. With the cursor keys <↑> and <↓>, move the cursor to an item to
be set.
2. With the cursor keys <←> and <→>, move the cursor to an item to
be selected.
Example) Order of rotation for Roll-Pitch-Yaw angle
Insertion of a block
If the guidance screen is displayed when the block of cursor position on the
program editing screen does not include a tilted working plane command,
the soft key [INSERT] is displayed on the data setting screen.
Operation for inserting a tilted working plane command block is described
below. For a warning output at the time of block insertion, see
"Restrictions".
1. Press the soft key [INSERT].
The confirmation message "ARE YOU SURE YOU WANT TO
EXECUTE?" is displayed, and the soft key [YES] and [NO] are
displayed.
2. Press the soft key [YES].
A block is created from the command type and parameters then is
inserted after the block of cursor position on the program editing
screen. After block insertion, the guidance screen is terminated then
the program editing screen is displayed.
Pressing the soft key [NO] returns the screen display to the data
setting screen.
A-90404 E
Title
Draw
No.
13/24
Sheet
FANUC Series 30
i
/ 31
i
/ 32
i
Guidance screen for
Tilted Woking Plane command
Edit
Apprv.
Desig.
Date
Design
Descri
p
tion
Date
Feb.02.2006
