･Origin of Feature Coordinate
Specify the origin (X, Y, and Z of point P) of the feature coordinate
system as coordinates in the workpiece coordinate system (in case of the
absolute type) / present feature coordinate system (in case of the
incremental type).
･Rotation Angle around X-axis
Specify rotation angle around the X-axis of the workpiece coordinate
system (in case of the absolute type) / present feature coordinate system
(in case of the incremental type).
･Rotation Angle around Y-axis
Specify rotation angle around the Y-axis of the workpiece coordinate
system (in case of the absolute type) / present feature coordinate system
(in case of the incremental type).
･Rotation Angle of Z-axis
Specify rotation angle around the Z-axis of the workpiece coordinate
system (in case of the absolute type) / present feature coordinate system
(in case of the incremental type).

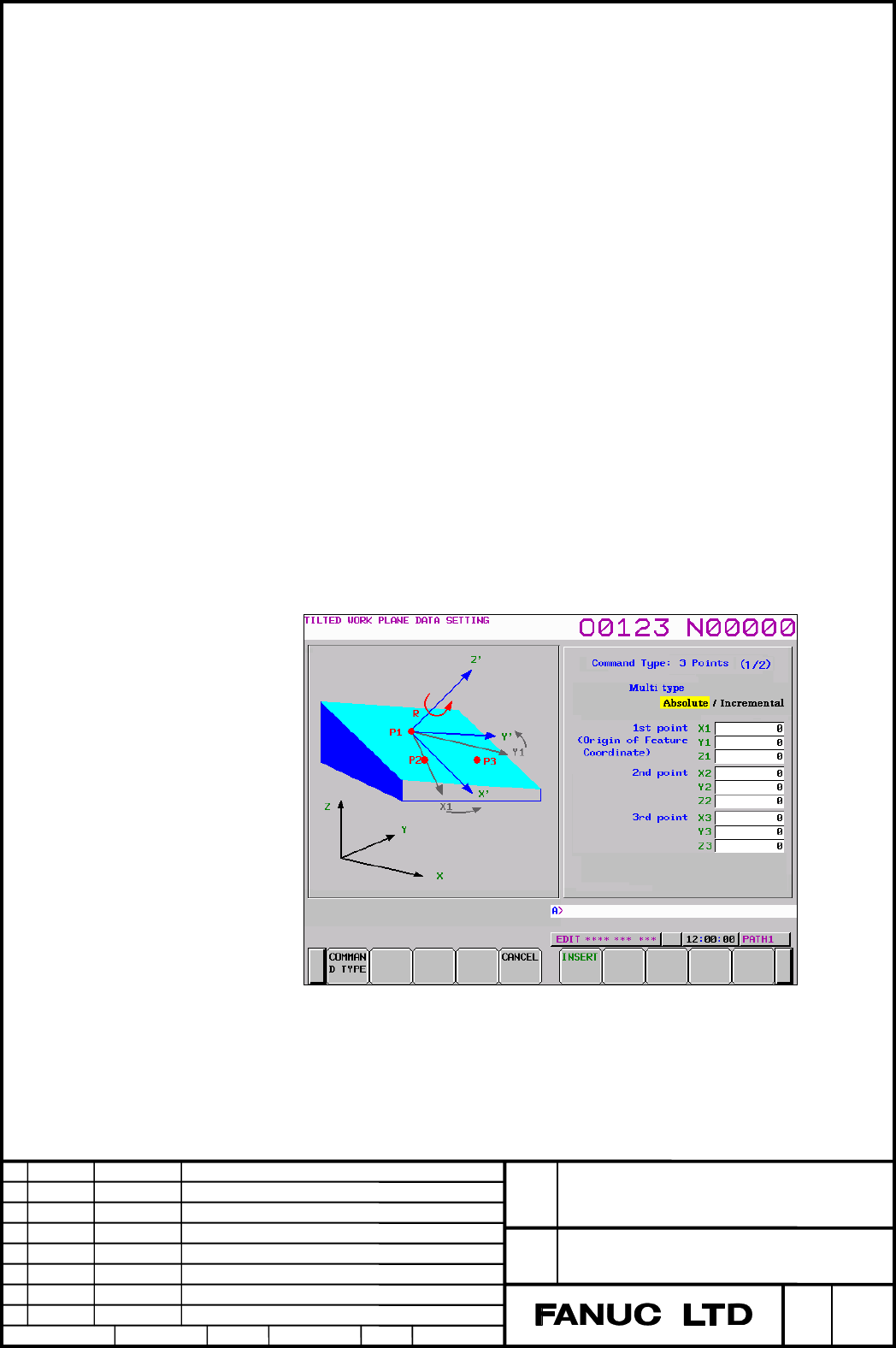

G68.2 (3 points specification)
A-90404 E
Title
Draw
No.
18/24
Sheet
FANUC Series 30
i
/ 31
i
/ 32
i
Guidance screen for
Tilted Woking Plane command
Edit
Apprv.
Desig.
Date
Design
Descri
p
tion
Date
Feb.02.2006
