FANUC Series 30i/31i/32i-MODEL A, Guidance Screen for Tilted Working Plane Command, Specifications Additional Manual Page 21

Additional Manual
G68.2（Projection angle）

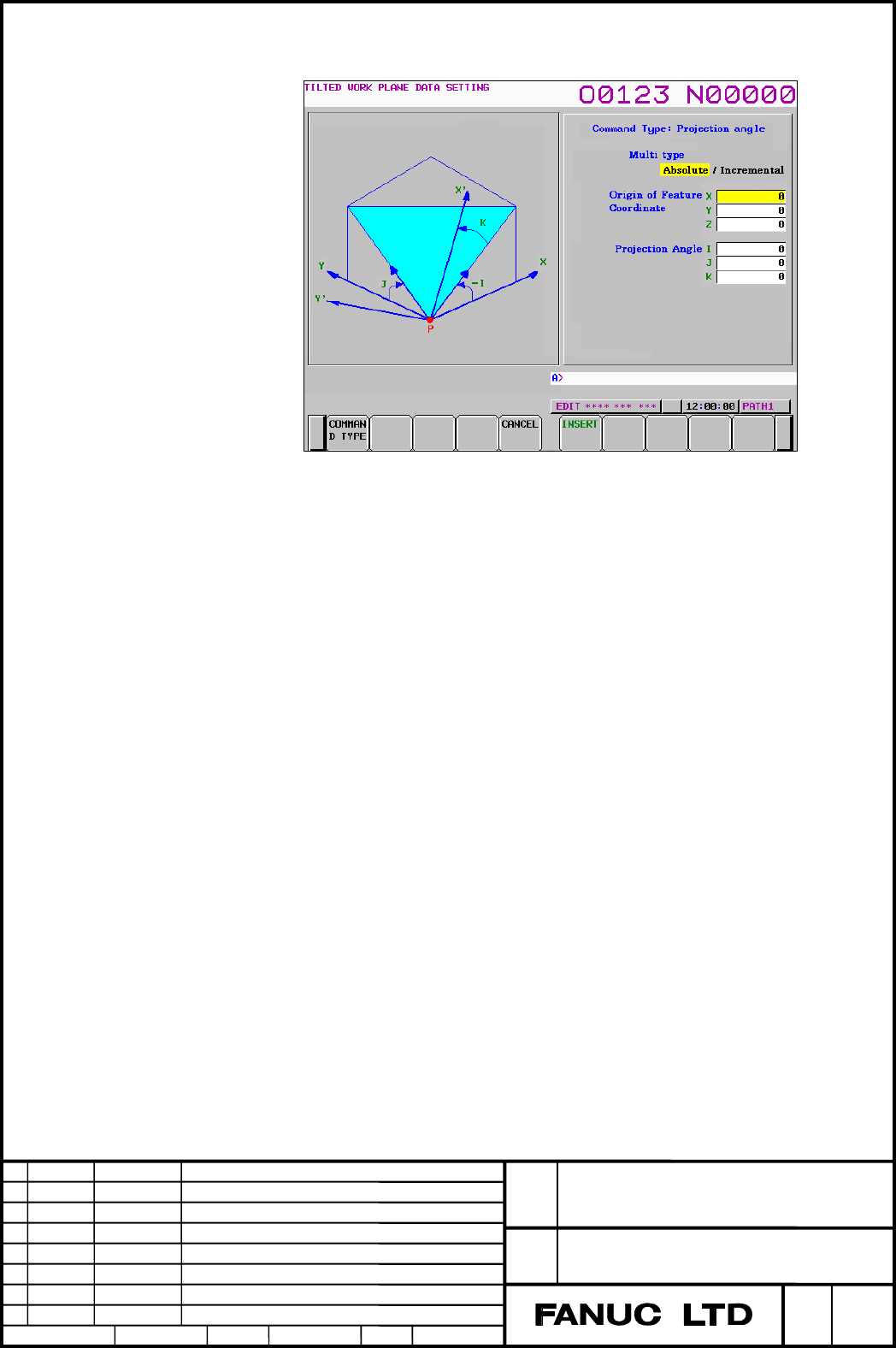

Fig. 1.2 (i) Data setting screen - projection angle
･Multi type
Absolute: Feature coordinate system is transformed from workpiece
coordinate system.
Incremental: Feature coordinate system is additionally transformed
from present feature coordinate system.
･Origin of Feature Coordinate
Specify the origin (X, Y, and Z of point P) of the feature coordinate
system as coordinates in the workpiece coordinate system (in case of the
absolute type) / present feature coordinate system (in case of the
incremental type).
･Projection angle
I: Specify projection angle between X axis in the workpiece
coordinate system (in case of the absolute type) / present feature
coordinate system (in case of the incremental type).
J: Specify projection angle between Y axis in the workpiece
coordinate system (in case of the absolute type) / present feature
coordinate system (in case of the incremental type).
K: Specify rotation angle around the Z-axis of the feature coordinate
system.
A-90404 E
Title
Draw
No.
21/24
Sheet
FANUC Series 30
i
/ 31
i
/ 32
i
Guidance screen for
Tilted Woking Plane command
Edit
Apprv.
Desig.
Date
Design
Descri
p
tion
Date
Feb.02.2006
