FANUC Series 30i/31i/32i-MODEL A, Guidance Screen for Tilted Working Plane Command, Specifications Additional Manual Page 19

Additional Manual

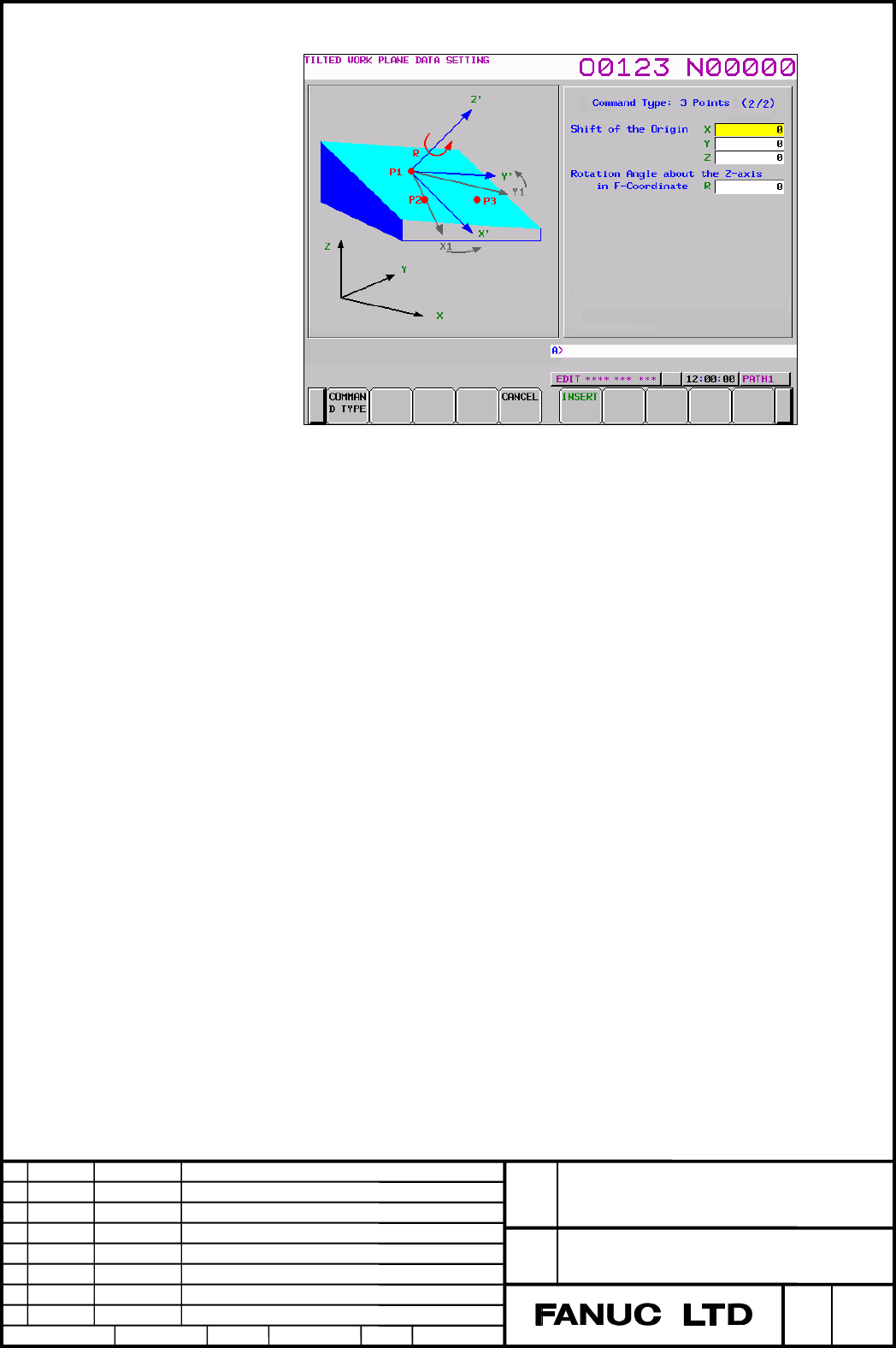

Fig. 1.2 (e) Data setting screen - 3 points specification
･Multi type
Absolute: Feature coordinate system is transformed from workpiece
coordinate system.
Incremental: Feature coordinate system is additionally transformed
from present feature coordinate system.
･Shift of the Origin
Specify a shift amount specified for the 1st point (point P1) from the
feature coordinate system origin in the feature coordinate system.
･Rotation Angle around the Z-axis in F-Coordinate R
Specify rotation angle around the Z-axis of the feature coordinate system.
Rotation angle R is positive when a rotation is made clockwise as viewed
in the Z-axis direction of the feature coordinate system.
･1st point (Origin of Feature Coordinate)
Specify the origin (X, Y, and Z of point P1) of the feature coordinate
system as coordinates in the workpiece coordinate system (in case of the
absolute type) / present feature coordinate system (in case of the
incremental type).
･2nd point
Specify the coordinates (X, Y, and Z of point P2) of the 2nd point as
coordinates in the workpiece coordinate system (in case of the absolute
type) / present feature coordinate system (in case of the incremental type).
The 1st point and 2nd point determine the X-axis of the feature coordinate
system.
･3rd point
A-90404 E
Specify the coordinates (X, Y, and Z of point P3) of the 3rd point as
coordinates in the workpiece coordinate system (in case of the absolute
Title
Draw
No.
19/24
Sheet
FANUC Series 30
i
/ 31
i
/ 32
i
Guidance screen for
Tilted Woking Plane command
Edit
Apprv.
Desig.
Date
Design
Descri
p
tion
Date
Feb.02.2006
Previous page
Next page
