  2. Machine Operator's Panel Interface Unit (with 3-MPG interfaces) A-73282E/01

Machine Operator's Panel Interface Unit (with 3-MPG interfaces) A-73282E/01 Additional Manual Page 7

Additional Manual

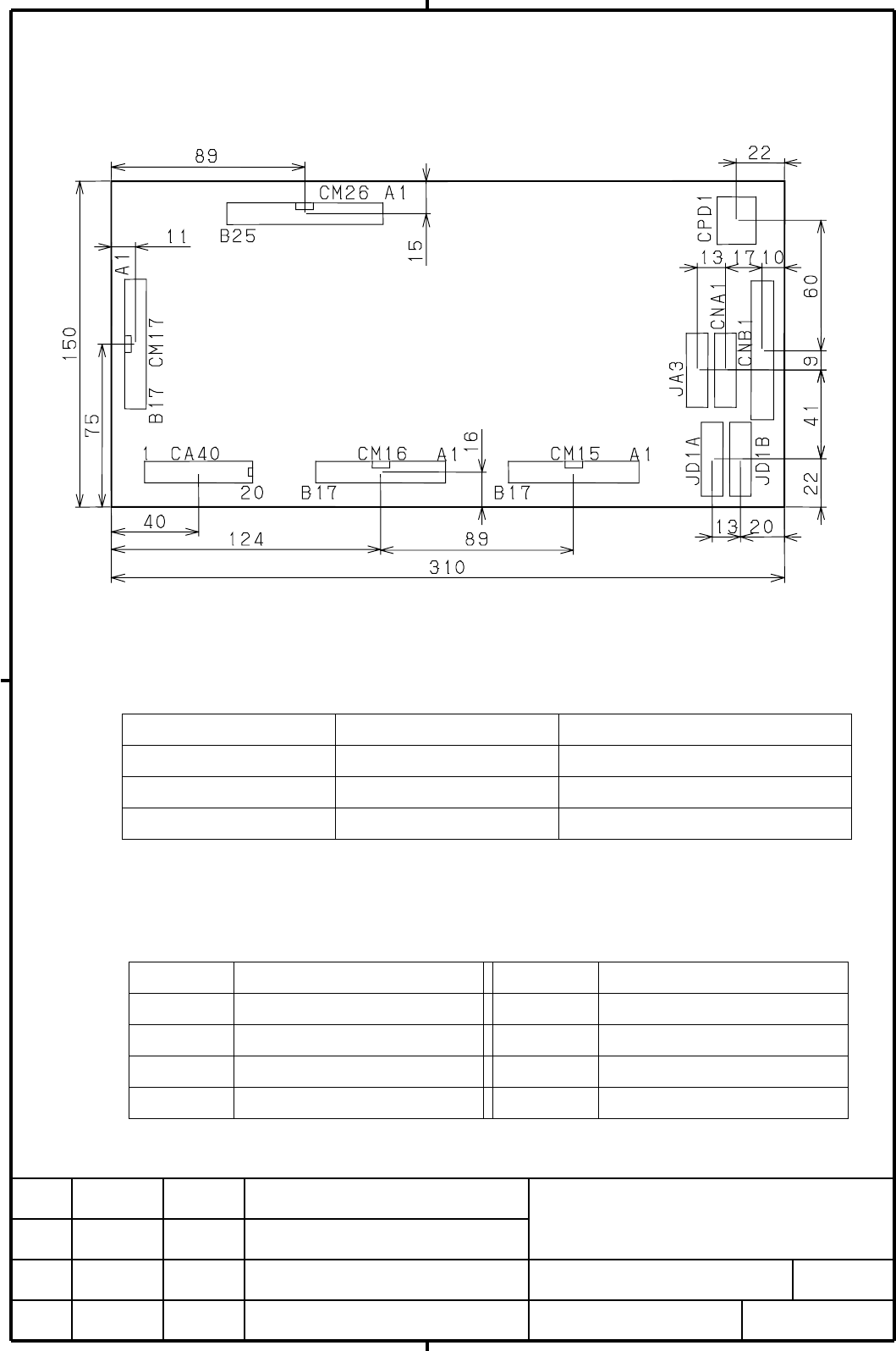

3-5.Dimension Diagram (Including Connector Locations)
4．
．．
．Other notices
4-1. Address Allocation
Allocation name of this unit is as follows.
Allocation name PMC address
Note 1) Remarks
ＯＣ０２Ｉ (16byte) DI+00～DI+15 1 MPG interface can be used
ＯＣ０３Ｉ (32byte) DI+00～DI+21 3 MPG interfaces can be used
ＣＭ１５Ｉ (15byte) DI+00～DI+14 MPG interface cannot be used
Note 1）Refer to Item 3-4.PMC Address.
4-2.Applicable system and software
（for 3 MPG interfaces）
CNC Software series／Edition CNC Software series／Edition
FS16-MC Ｂ０Ｂ１／２１ or later FS16i-MA Ｂ０Ｆ１／１５ or later
FS16-TC Ｂ１Ｂ１／１８ or later FS16i-TA Ｂ１Ｆ１／１４ or later
FS18-MC ＢＤＢ１／１９ or later FS18i-MA ＢＤＦ１／１５ or later
FS18-TC ＢＥＢ１／１９ or later FS18i-TA ＢＥＦ１／１４ or later
FS21i-MA, FS21i-TA: It will be applicable from end of May 1998.
EDIT.
FANUC LTD
SHEET
DRAW. NO. CUST.
TITLE
006/6
DESCRIPTIONDESIG.DATE
Ａ－７３２８２Ｅ／０１
