Flexible Synchronous Control Specifications, Series 16i/18i-MB/TB, 18i-MB5 Additional Manual Page 3

Additional Manual
1998/ 5/26

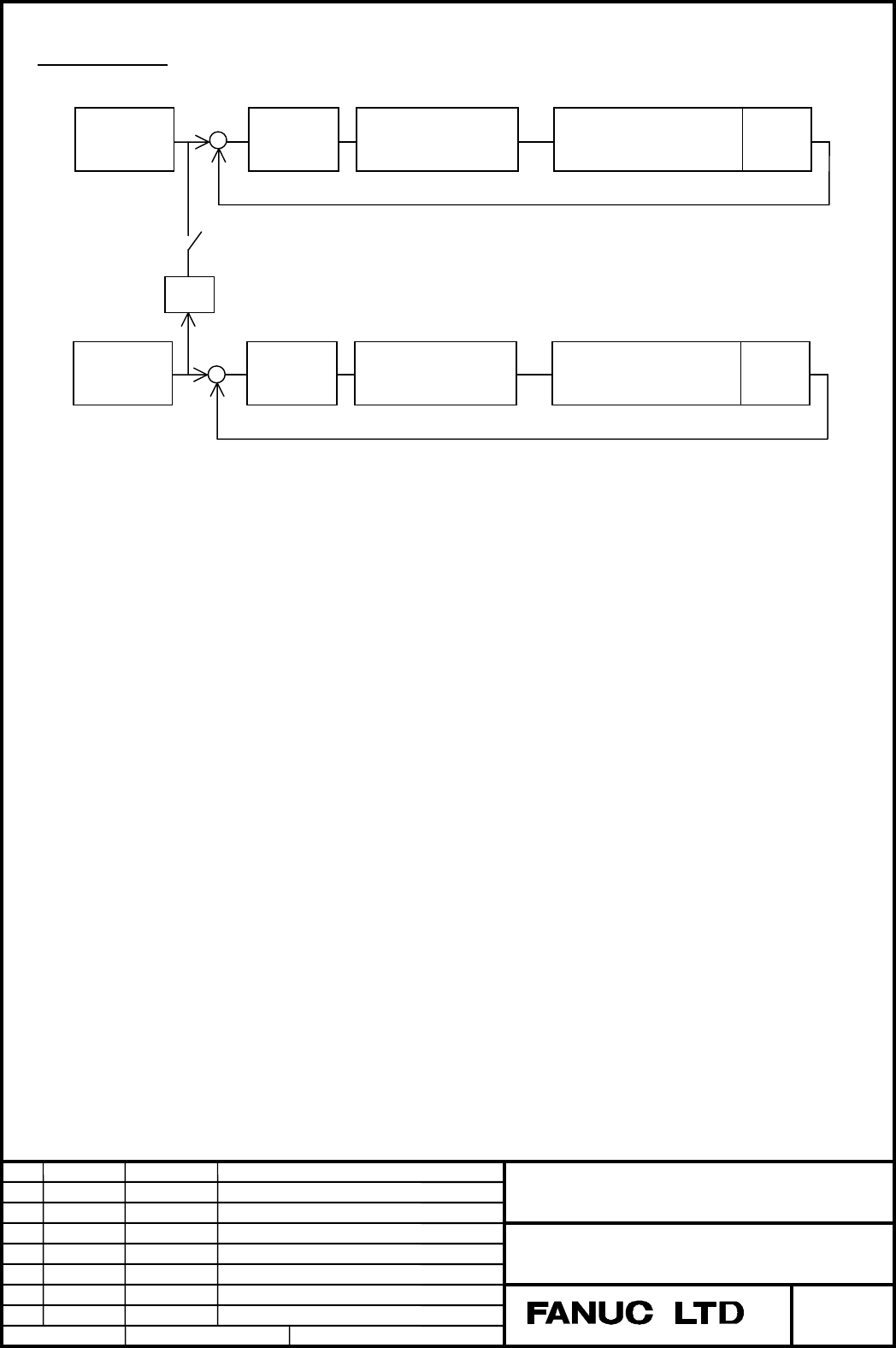

Block diagram
Position
control
Spindle amplifier
or servo amplifier
Spindle motor (Cs axis)
or servo motor
De-
tector
Command
pulse
+ -
Master axis
Position
control
Spindle amplifier
or servo amplifier
Spindle motor (Cs axis)
or servo motor
De-
tector
Command
pulse
K
+ -
Slave axis
Synchronization switch
K: Synchronization coefficient
1.2 Details
1.2.1Parameter setting
The flexible synchronous control parameters are listed below:
(1) Denominators determining gear ratios
(parameter Nos. 5681, 5683, 5685, and 5687)
(2) Numerators determining gear ratios
(parameter Nos. 5680, 5682, 5684, and 5686)
(3) Indexes to gear ratio denominators
(parameter Nos. 5690, 5691, 5692, and 5693)
(4) Master axis numbers
(parameter Nos. 5660, 5662, 5664, and 5666)
(5) Slave axis numbers
(parameter Nos. 5661, 5663, 5665, and 5667)
(6) M code numbers for turning synchronization mode ON
(parameter Nos. 5670, 5672, 5674, and 5676)
(7) M code numbers for turning synchronization mode OFF
(parameter Nos. 5671, 5673, 5675, and 5677)
Edit
3/30
Data Si
g
nature
Descri
p
tion
Flexible synchronous control Specifications
A-63540EN
Drawing No.
Page
2004/08/10 H.Minami
Whole revision E.Genma
04
05
2004/08/19
A
ddition of (5)
FANUC Series 16i/18i - MB/TB, 18i - MB5
Title
Previous page
Next page
