DIGITAL SERVO ADAPTER Maintenance manual Page 159

Maintenance manual
B–63465EN/01
F. SETTING/DISPLAY/MAINTENANCE
USING THE MAIN UNIT OF
THE Digital Servo Adapter
APPENDIX
143

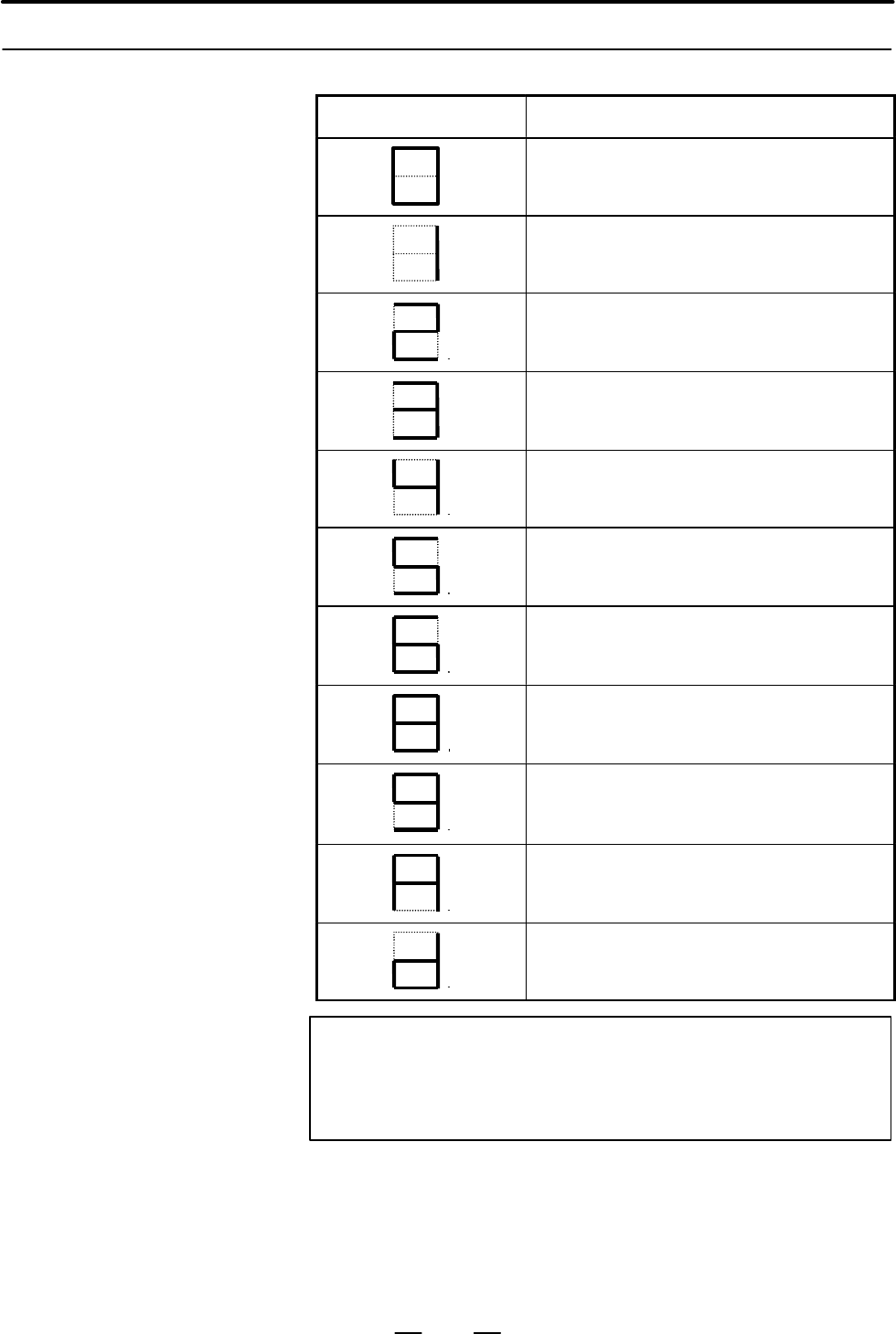

The 7–segment LED blinks, indicating the number of an alarm type.
LED indication (blinking) Meaning of alarm
P/S alarm 100
P/S alarm 000
P/S alarm 101
With the Digital Servo Adapter, this alarm does not
appear.
P/S alarm other than 0, 1, and 2 above (0 to 299)
Alarm from the PMC (1000 to 1999, 3000 to 3200)
Overtravel alarm (500 to 599)
Overheat alarm (700 to 701)
Servo alarm (400 to 499)
Pulse coder alarm (300 to 399)
Spindle alarm (749 to 754)
With the Digital Servo Adapter, this alarm does not
appear.
P/S alarm 5000 and up
Rigid tapping alarm (740 to 742)
With the Digital Servo Adapter, this alarm does not
appear.
NOTE
1 When more than one alarm is generated, all their
corresponding numbers blink alternatively.
2 With the Digital Servo Adapter, some alarms do not appear.
F.3.2
Indication in Alarm
Condition
