If the setting of table rotation axis position 1/table rotation axis position 2 differs
between the workpiece setting error of No. 00 and each workpiece setting error
when a 5-axis machine (machine of table rotation type or composite type) with
table rotation axes is used, no simple additions are made. Instead, before
additions are made, conversion is made to values based on the machine
coordinate on a table rotation axis being 0.

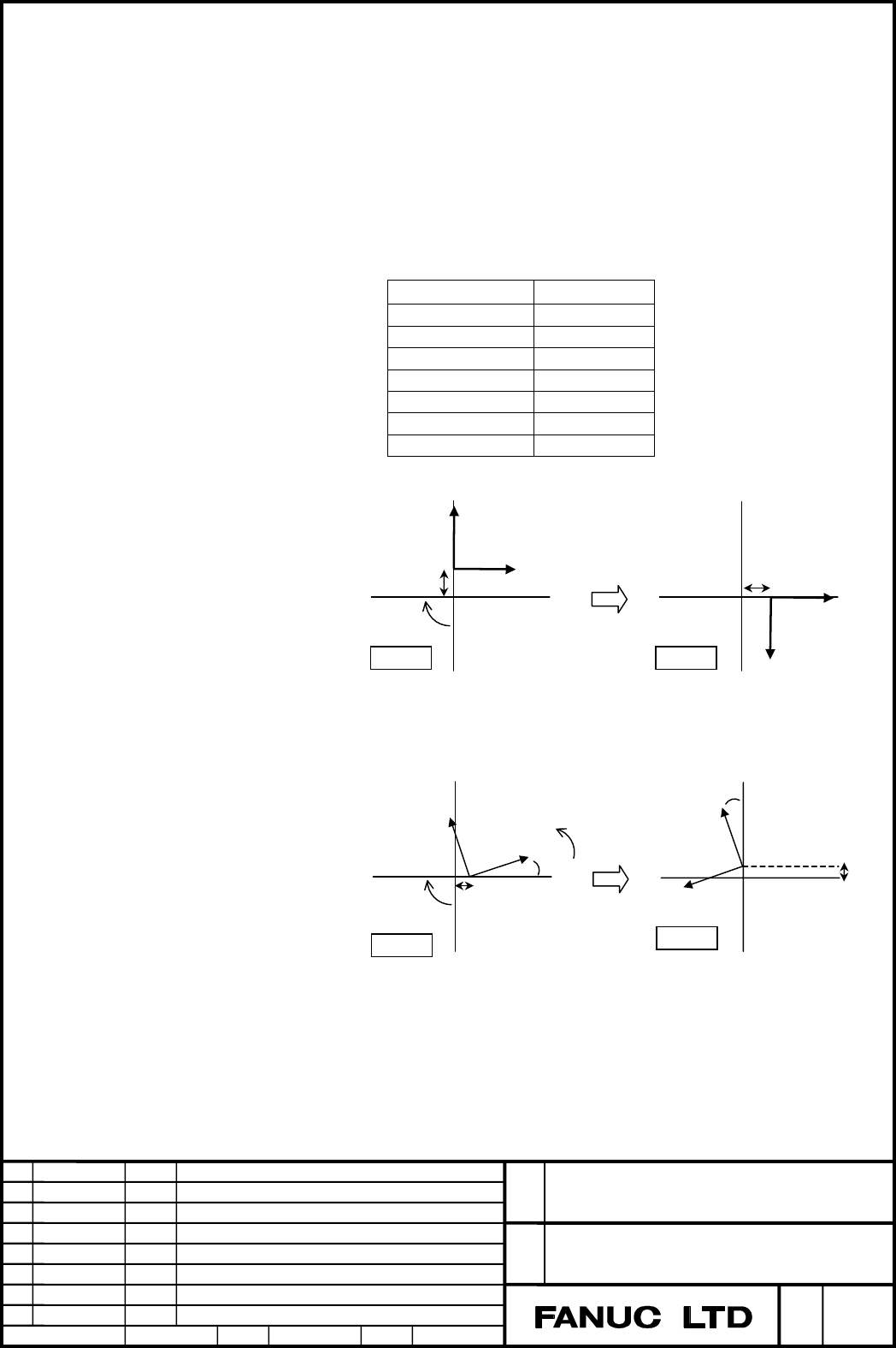

Example:
Suppose that workpiece setting errors are set as follows on a 5-axis machine
with table rotation axis C about the Z-axis.
No. 00 (COMMON) No. 01
X 0.000 x 5.000
y 10.000 y 0.000
z 0.000 z 0.000
a 0.000
b 0.000
c 2.000
C -90.000 C 90.000
First, the error values of No. 00 are converted to those based on C = 0.000.
Next, the error values of No. 01 are converted to those based on C = 0.000.
X
Y
X'
Y
'
Δy = 5.000, Δc = 2.000
5
C = 0
2°
C positive direction
5
X
Y
X'
Y
'
2°
Δx = 5.000, Δc = 2.000
C = 90
∆c positive direction
C positive direction
X
Y
X'
Y
'
10
Δy = 10.000
C = -90 C = 0
X
Y
X'
Y
'
10
Δx = 10.000
