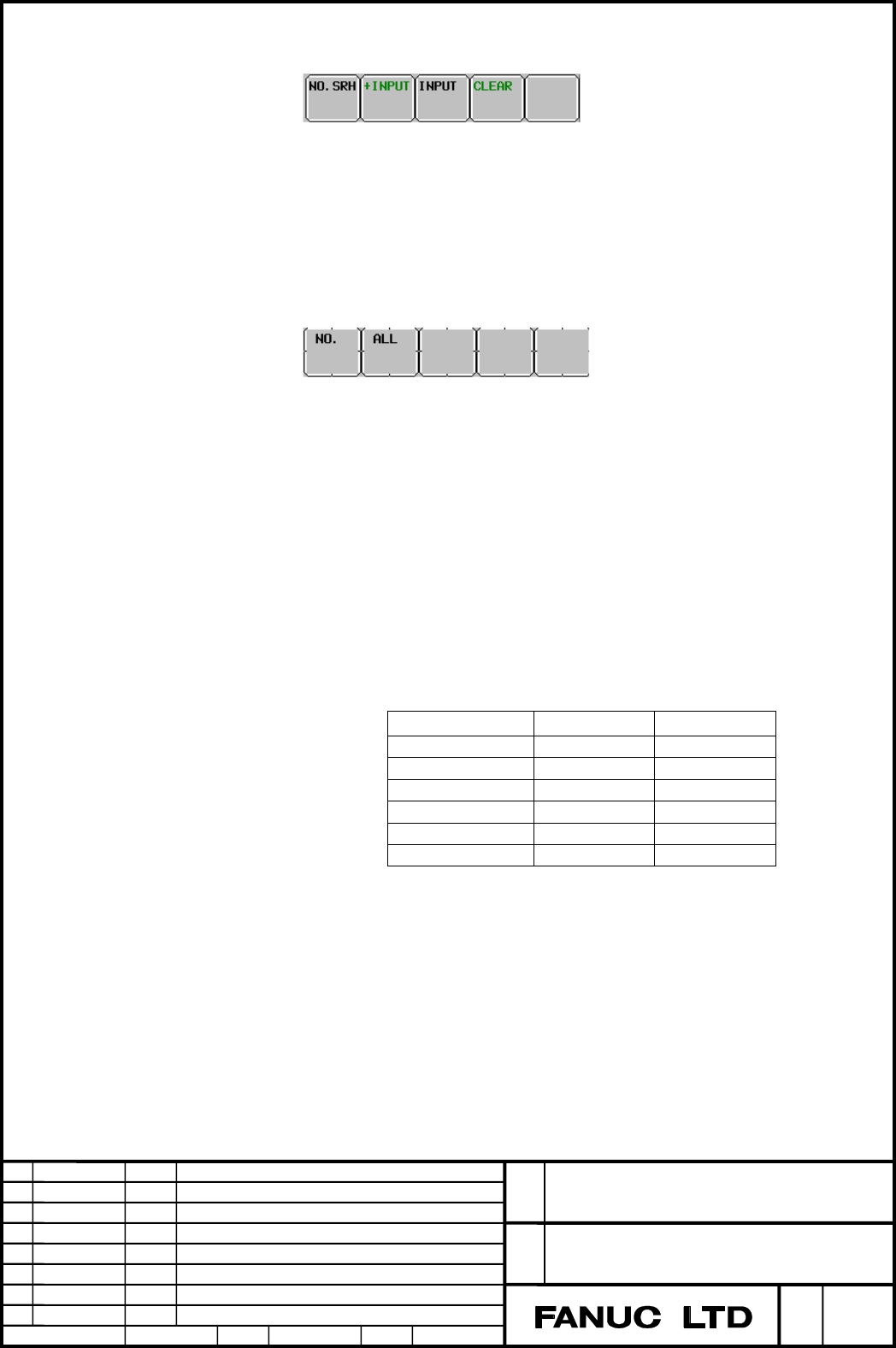

In data setting, the following soft keys can be used.
- When you press [NO. SRH] after entering a workpiece setting error number to
be displayed, the screen for setting the desired workpiece setting error is
displayed.
- When you enter a numeric value then press [+INPUT], the value is added.
- When you enter a numeric value then press [INPUT], the value is set.
- When you press [CLEAR], the following soft keys are displayed:
- When you press [NO.] after entering a workpiece setting error number
to be deleted, the data of the workpiece setting error number is deleted.
- When you press [ALL], the data of all workpiece setting error numbers
is deleted.
・Workpiece setting error of No. 00 (COMMON)
Each of the values set in No. 00 (COMMON) is added to the corresponding value
of each of No. 01 through No. 07.
Note that rotation direction errors for No.00(COMMON) are not available.
Example:
Suppose that workpiece setting errors are set as follows:
No. 00 (COMMON) No. 01 No. 02
X 10.000 x 0.500 x 0.800
Y 0.000 y 0.000 y 0.000
Z 0.000 z 0.000 z 0.000
a 1.500 a 1.800
b 0.000 b 0.000
c 0.000 c 0.000
When the workpiece setting error of No. 01 is selected, workpiece setting
error compensation is performed based on the following:
∆x = 10.000+0.500 = 10.500
∆a = 1.500
When the workpiece setting error of No. 02 is selected, workpiece setting
error compensation is performed based on the following:
∆x = 10.000+0.800 = 10.800
∆a = 1.800
