If linear interpolation or circular interpolation is specified on a machine of table
rotation type or composite type, linear interpolation or circular interpolation is
performed as viewed from the workpiece on the table.
<Example>
The machine is a table rotation type with A axis(master axis) around X axis and C
axis (slave axis) around Z axis (when A=0).
Firstly, suppose that Workpiece setting error is 0 and the following program is
commanded.
O1
N10 G55 (G55 is X50.0 Y0.0 Z0.0.)
N20 X0 Y0 Z0 C0 A0 C0
N30 G01 X－50.0 Y150.0 C－90.0 F100.0
Next, suppose that Workpiece setting error has ∆c=5.0, which is the error around Z
axis, and N15,N16 are added to O2 as follows :
When Tool direction compensation is available(Parameter RCM(No.11200#0) is 1),
the path will be as follows :
O2
N10 G55
N15 G05.1 Q1
N16 G54.4 P1
N20 X0 Y0 Z0 C0 A0 C0
N30 G01 X－50.0 Y150.0 C－90.0 F100.0

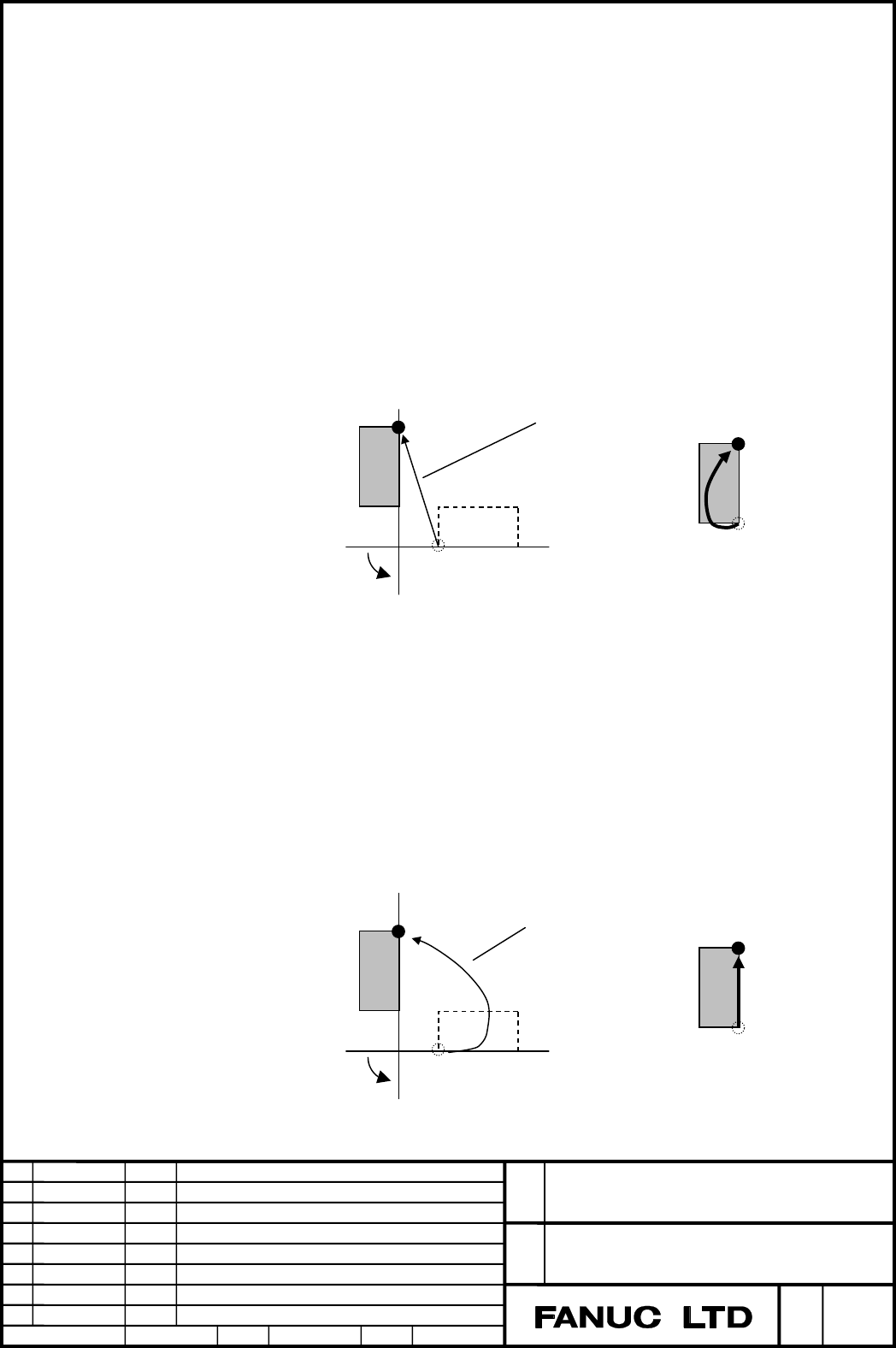

The path looked from the workpiece in the middle of the block is linear.
C -90
N20 end
N30 end
Path in the middle o
f
the block
Path looked from the
workpiece in the middle of the
block
X
Y
C -90
N20 end
N30 and
Path in the middle
of the block
Path looked from the
workpiece in the middle of the
block
X
Y
Previous page
Next page
