FANUC Series 30i-MODEL A, Series 31i-MODEL A5, Series 31i-MODEL A Workpiece setting error compensation Additional Manual Page 62

Additional Manual
FANUC Series 30i/31i-MODEL A/31i-MODEL A5
Workpiece Setting Error Compensation
A
-79634E
6
2
/
75
Ed. Date Design Description
Date Feb
.08.’05 Design. Apprv.
page
Title
Draw
No.
19698 Angle when the reference tool axis direction is tilted (reference angle RA)
19699 Angle when the reference tool axis direction is tilted (reference angle RB)
[Input type] Parameter input
[Data type] Real path
[Unit of data] Degree
[Minimum unit of data] Depend on the increment system of the reference axis
[Valid data range] 9 digit of minimum unit of data (refer to standard parameter setting
(When the increment system is IS-B, -999999.999 to +999999.999)
When the reference tool axis direction (parameter No. 19697) is set to 1, the tool
axis is tilted the RA degrees on the Z-axis from the positive X-axis direction to
positive Y-axis direction, then the tool axis is tilted the RB degrees on the X-
axis from the positive Y-axis direction to positive Z-axis direction.
When the reference tool axis direction (parameter No. 19697) is set to 2, the tool
axis is tilted the RA degrees on the X-axis from the positive Y-axis direction to
positive Z-axis direction, then the tool axis is tilted the RB degrees on the Y-
axis from the positive Z-axis direction to positive X-axis direction.
When the reference tool axis direction (parameter No. 19697) is set to 3, the tool
axis is tilted the RA degrees on the Y-axis from the positive Z-axis direction to
positive X-axis direction, then the tool axis is tilted the RB degrees on the Z-
axis from the positive X-axis direction to positive Y-axis direction.

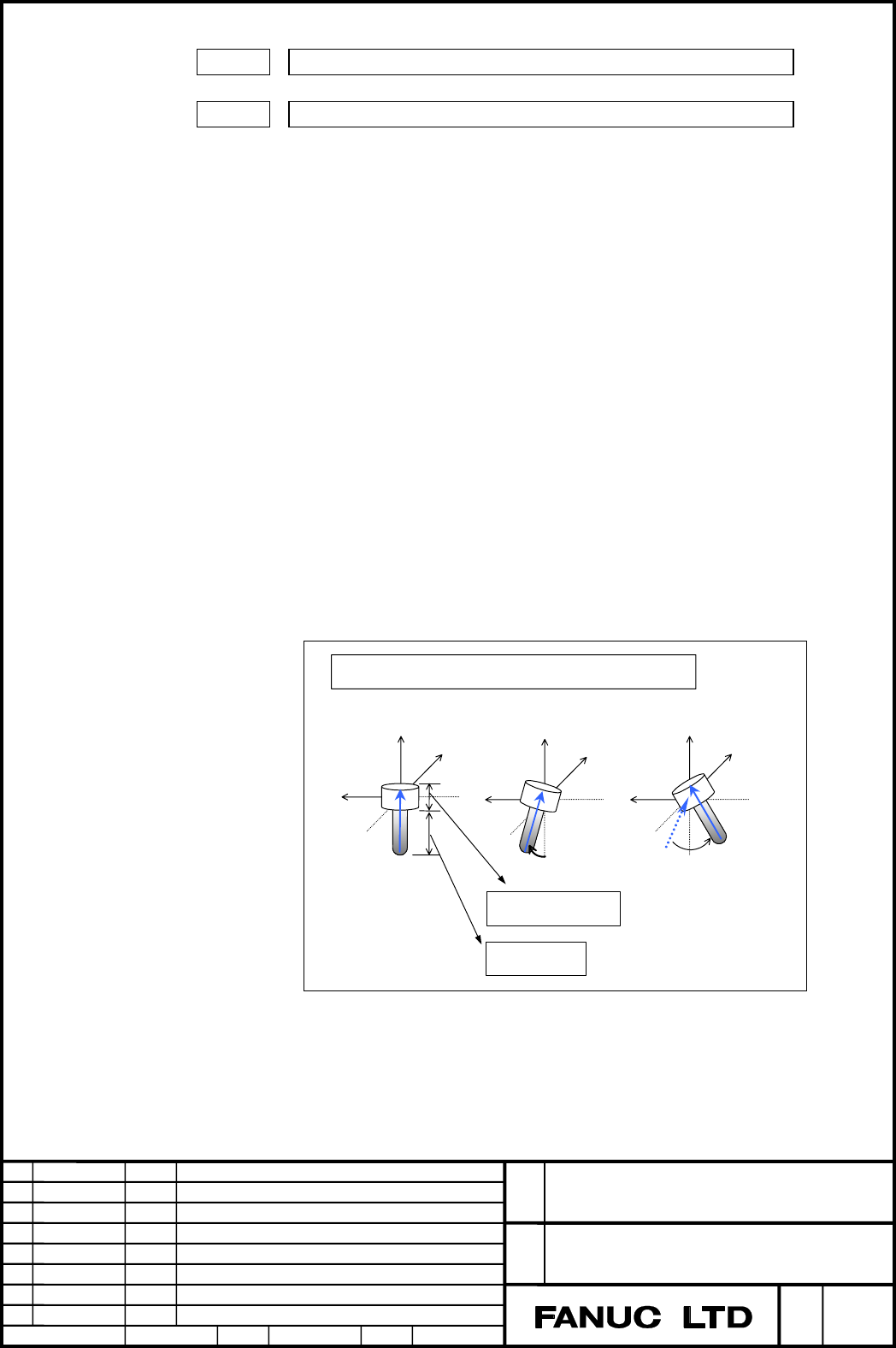

Tool axis direction when the reference tool axis direction is Z-axis
RA
X
Y
Z
X
Y
Z
RB
X
Z
Tool holder offset
Tool length offset
Y
Previous page
Next page
