FANUC Series 30i-MODEL A
One Touch Macro call
Interruption of sequence
Interruption by reset or emergency stop
The abnormal end signal (MCSP) becomes “1” when the operation is
interrupted by reset or emergency stop, and the execution of the program is
stopped. At this time, the mode change request signal (MCRQ) and mode
notification signal are output to recover the mode, and the selection program
number is recovered automatically.
Please set “1” in mode change completion signal (MCFIN) on the PMC side
to complete the sequence.
Feed hold or single block
The abnormal end signal (MCSP) is not output when stopping in feed hold
or single block. Under such a condition, when the cycle start signal (ST) is
turned on and off, the continuity of the macro program is executed.
Under such a condition, even if macro call start signal (MCSTx) is turned on
and off, it is not effective.

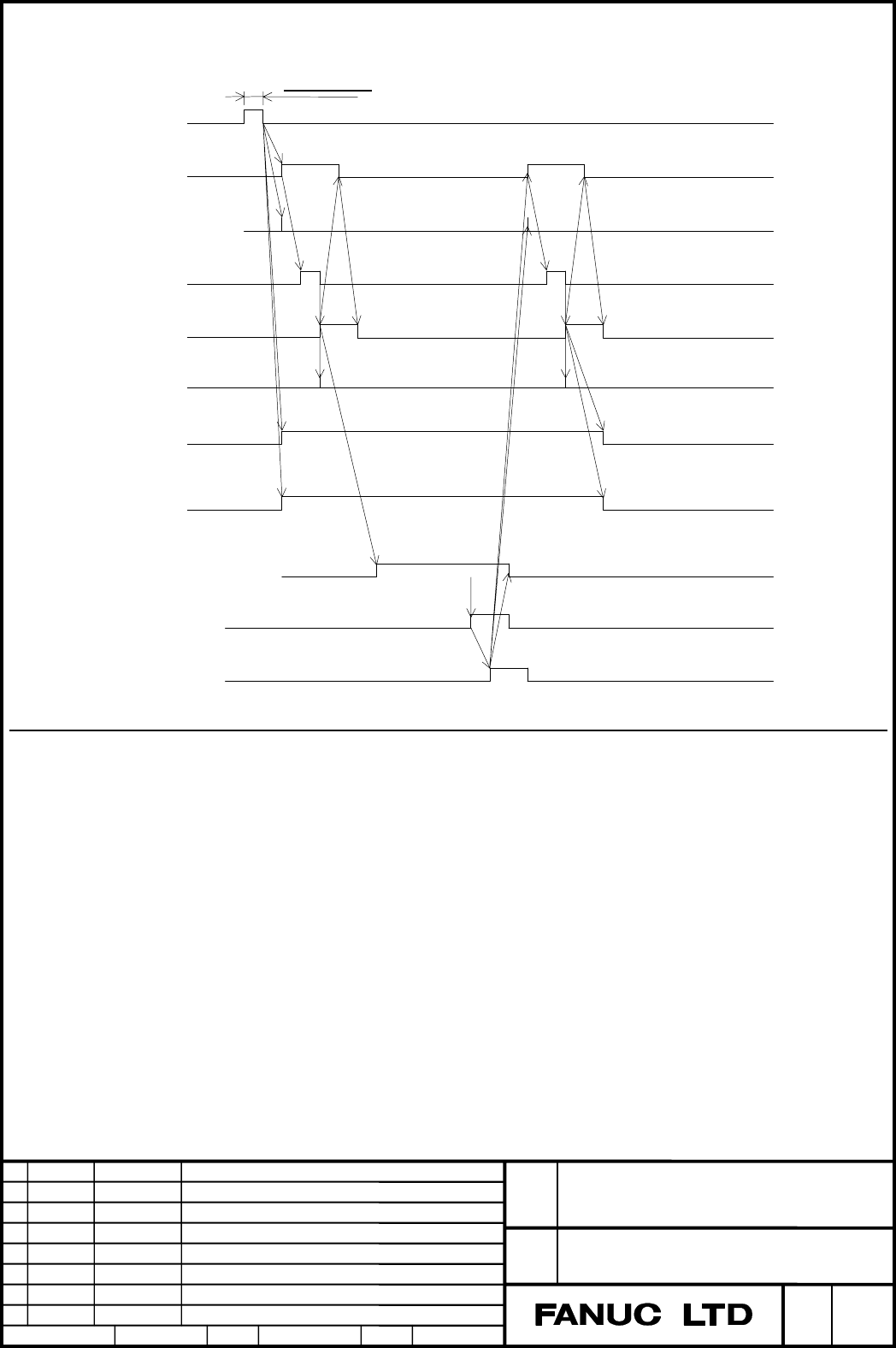

Mode notification
signal(CNC→PMC)
MEM
before macro execution
Mode
indefinite
MEM
before macro
MCEXE
(CNC→PMC)
Mode Change
process(PMC)
MCFIN
(PMC→CNC)
MCRQ
(CNC→PMC)
MCEXx
(CNC→PMC)
Program Execution
(CNC)
M30 or M02
(CNC→PMC)
ERS or RRW
(PMC→CNC)
MCST
(PMC→CNC)
Least 32ms
