Series 30i-MODEL A, One Touch Macro call Additional Manual Page 7

Additional Manual
A-79226E
Title
Draw
No.
Ed. Date Design Description
Date Jan.09.’04 Design. Apprv.
5/10
Page
FANUC Series 30i-MODEL A
One Touch Macro call
Under such a condition, when reset or emergency stop are input, the
operation which is described in “Interruption by reset or emergency stop” is
executed.
Stop by alarm
When the execution of macro program is stopped by alarm, the abnormal
end signal (MCSP) is output.
Under such a condition, when reset or the emergency stop are input, the
operation which is described in “Interruption by reset or emergency stop” is
executed.

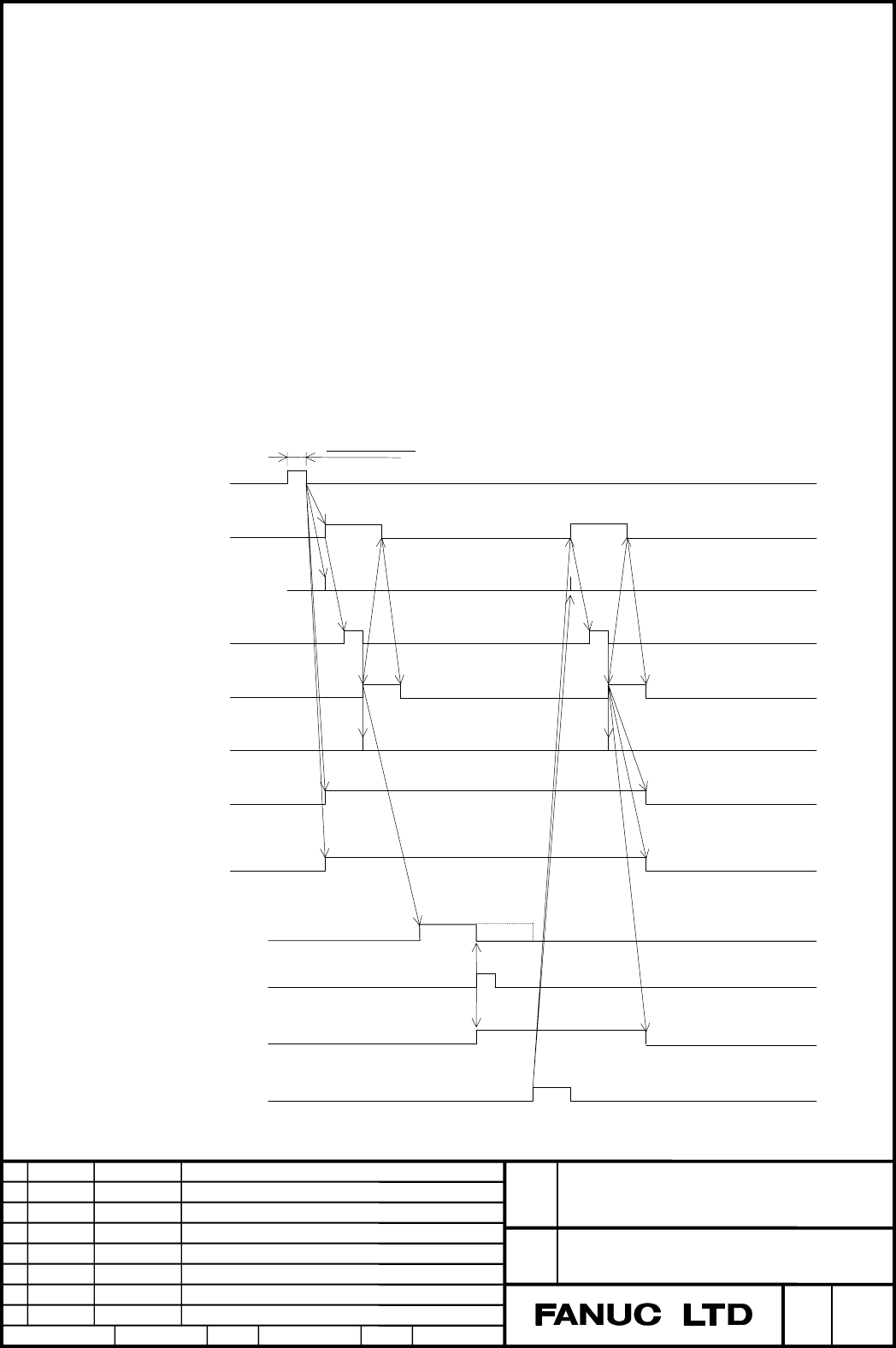

Following Figure shows the timing chart of each signal when the sequence is
interrupted by alarm.
MCRQ
(CNC→PMC)
MCEXE
(CNC→PMC)
Mode notification
signal(CNC→PMC)
MEM
Mode
indefinite
MEM
before macro execution
Mode Change
process(PMC)
MCEXx
(CNC→PMC)
MCFIN
(PMC→CNC)
A
L (Alarm)
(CNC→PMC)
Reset
Program Execution
(CNC)
MCSP
(CNC→PMC)
MCST
(PMC→CNC)
Least 32ms
