14. TOOL COMPENSATION FUNCTION

NC FUNCTION

163

With this function, the programmed tool path can be offset when actually

machining, for value of the tool radius set in the CNC.

By measuring cutting radius for actual cutting, and setting the value in the

NC as offset value, the tool can machine the programmed pattern, via the

offset path. There is no need to change the program even when tool radius

changes; just change the offset value.

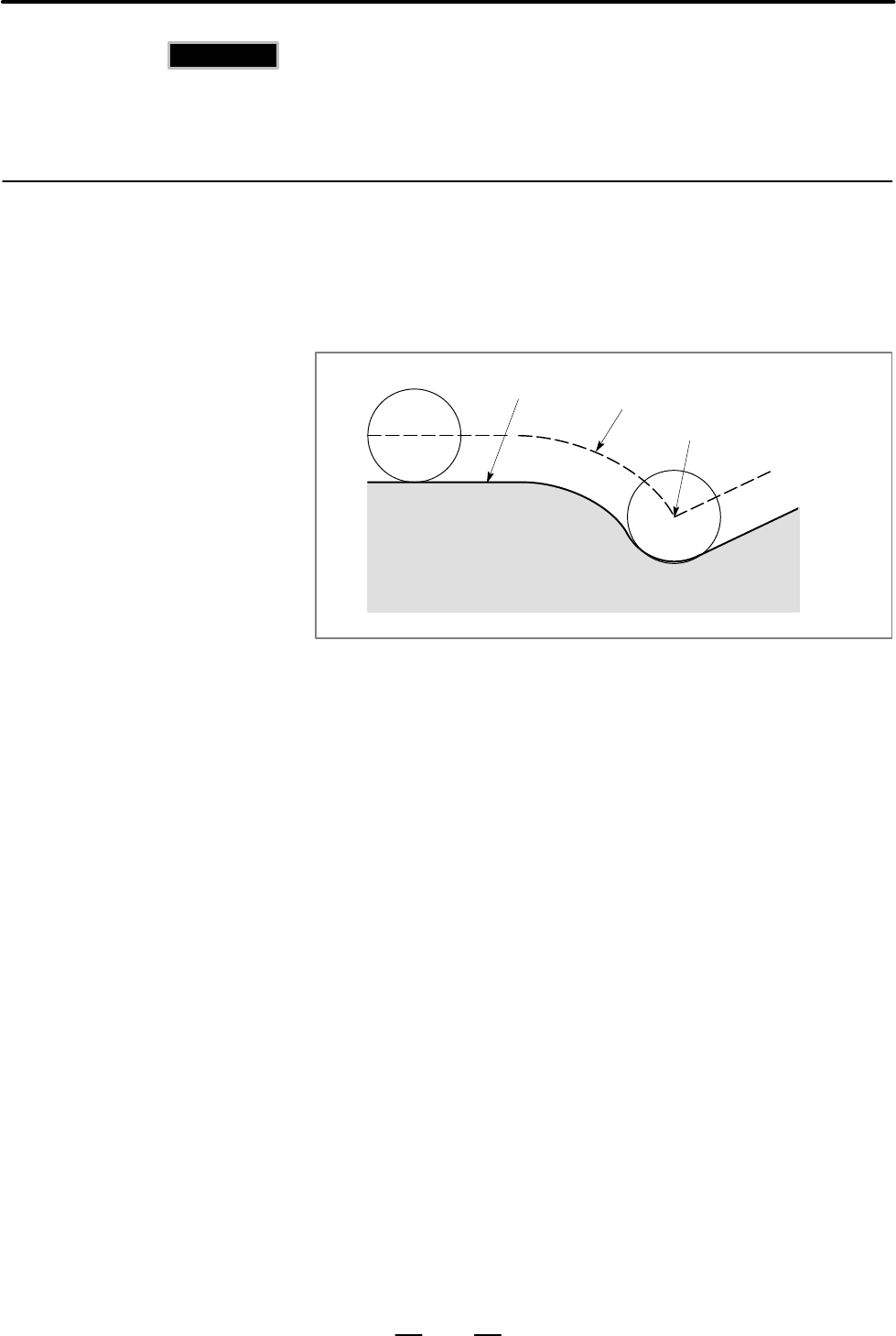

Programmed path

Tool center path

Cross point

Cross points of line and line, arc and arc, line and arc is automatically

calculated in the CNC to obtain offset actual tool path. So, programming

becomes simple, because it is only necessary to program the machining

pattern.

G40 : Cutter radius compensation cancel

G41 : Cutter radius compensation left

G42 : Cutter radius compensation right

G41 and G42 are commands for cutter radius compensation mode. The

cutter is offset to the left forward in the cutter movement in G42 and right

forward in G42. Cutter radius compensation is cancelled with G40.

The offset amount can be set in the cutter radius compensation memory.

When the D code is commanded as an offset number, corresponding offset

amount in the tool compensation memory is applied as the offset amount

for cutter radius compensation.

The offset can be specified with an H code when the parameter is set

accordingly.

14.5

CUTTER

COMPENSATION

(M series)

M series

14.5.1

Cutter Compensation C

(G40 - G42)

D Cutter compensation and

its cancellation

(G40, G41, G42)

D Assignment of offset

amount (D code)
