B–63832EN/01

17. MEASUREMENT FUNCTIONS

NC FUNCTION

185

This is a function of setting an offset value by key-inputting a workpiece

diameter manually cut and measured from the MDI keyboard.

First the workpiece is cut in the longitudinal or in the cross direction

manually. When a button on the machine operator’s panel is pressed upon

completion of the cutting, the work coordinate value at that time is

recorded. Then, withdraw the tool, stop the spindle, and measure the

diameter if the cutting was on the longitudinal direction or distance from

the standard face if it was on the facing. (The standard face is made as Z

= 0.) When the measured value is entered into the offset number desired

plus 100, NC inputs the difference between the input measured value and

the coordinate value recorded in NC, as the offset value of the offset

number.

The work coordinate system can be shifted using the technique of directly

inputting the measured value for offset. This technique is used when the

coordinate system planned in the program does not match with the

coordinate system set by the G92 command or by the automatic

coordinate system setting.

The procedures are the same as those for direct input for offset, except a

difference of using the standard tool.

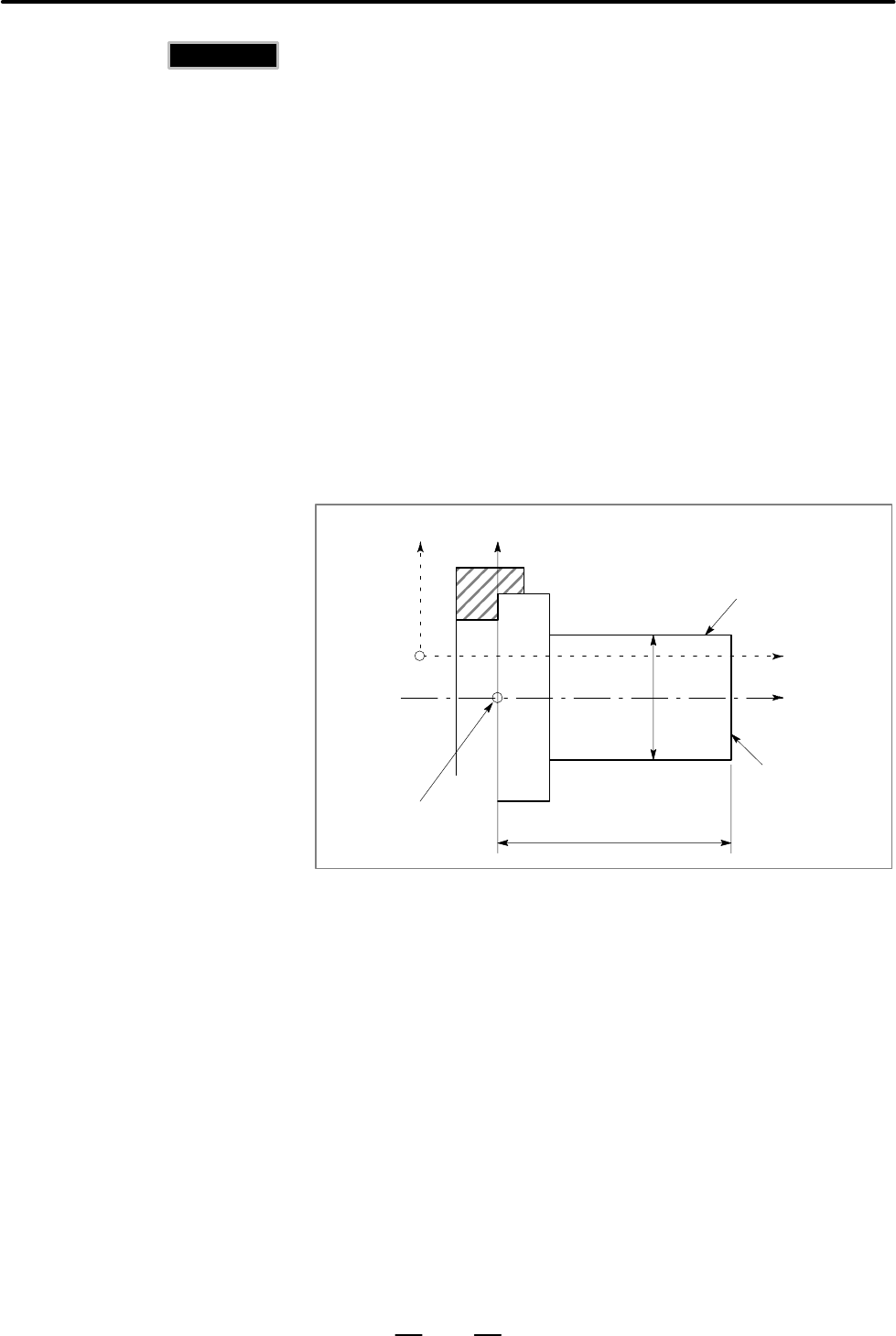

O’

B face

A face

X-Z:Coordinate system planned in the program

x-z : Coordinate set actually

Reference point

planned in the program

Cut A or B face and measure β or α. Direct input the measured value.

17.8

DIRECT INPUT OF

TOOL

COMPENSATION

MEASURED VALUE/

DIRECT INPUT OF

WORKPIECE

COORDINATE

SYSTEM SHIFT

AMOUNT (T series)

T series
