Feed per minute (G98)
Feed per revolution (G99)
Chamfering, Corner R

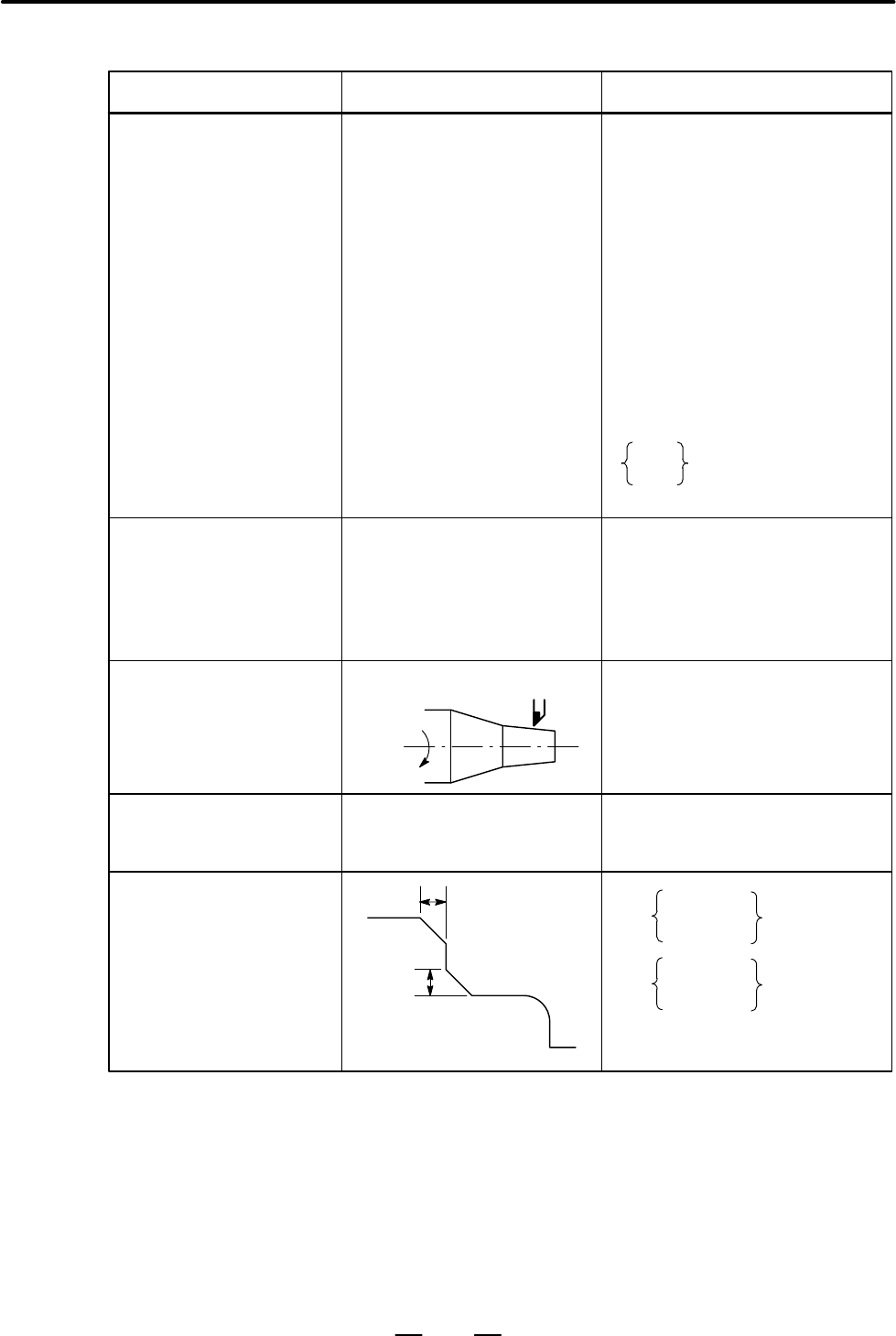

Functions Illustration Tape format
mm/min inch/min
mm/rev inch/rev
G98 … F_ ;
G99 … F_ ;
k
i
R
C(K) "k
R_
P_ ;
X_ ;
C(I)"i
R_
P_ ;
Z_ ;
(4/5)
Canned cycle for drilling
(G80 to G89)
See Chapter 13, “Functions to
Simplify Programming” in Part II.
G80 ; Cancel
G83 X(U)_C(H)_Z(W)_R_Q_P_F_M_K_;
G84 X(U)_C(H)_Z(W)_R_P_F_M_K_;
G85 X(U)_C(H)_Z(W)_R_P_F_M_K_;
G87 Z(W)_C(H)_X(U)_R_Q_P_F_M_K_;
G88 Z(W)_C(H)_X(U)_R_P_F_M_K_;
G89 Z(W)_C(H)_X(U)_R_P_F_M_K_;
Constant surface speed
control (G96/G97)
G96 S_ ;
G97 ; Cancel
m/min or feet/min
N (rpm)
Refer to II.13. FUNCTIONS TO
SIMPLIFY PROGRAMMING
Canned cycle
(G71 to G76)
(G90, G92, G94)
N_ G70 P_ Q_ ;
G71 U_ R_ ;
G71 P_ Q_ U_ W_ F_ S_ T_ ;
G72 W_ R_ ;
G72 P_ Q_ U_ W_ F_ S_ T_ ;
G73 U_ W_ R_ ;
G73 P_ Q_ U_ W_ F_ S_ T_ ;
G74 R_ ;
G74 X(u)_ Z(w)_ P_ Q_ R_ F_ ;
G75 R_ ;
G75 X(u)_ Z(w)_ P_ Q_ R_ F_ ;
G76 P_ Q_ R_ ;
G76 X(u)_ Z(w)_ P_ Q_ R_ F_ ;
G90
G92
G94
X_ Z_ R_ F_ ;
