26. DISPLAYING AND SETTING DATA

B–63832EN/01

NC FUNCTION

266

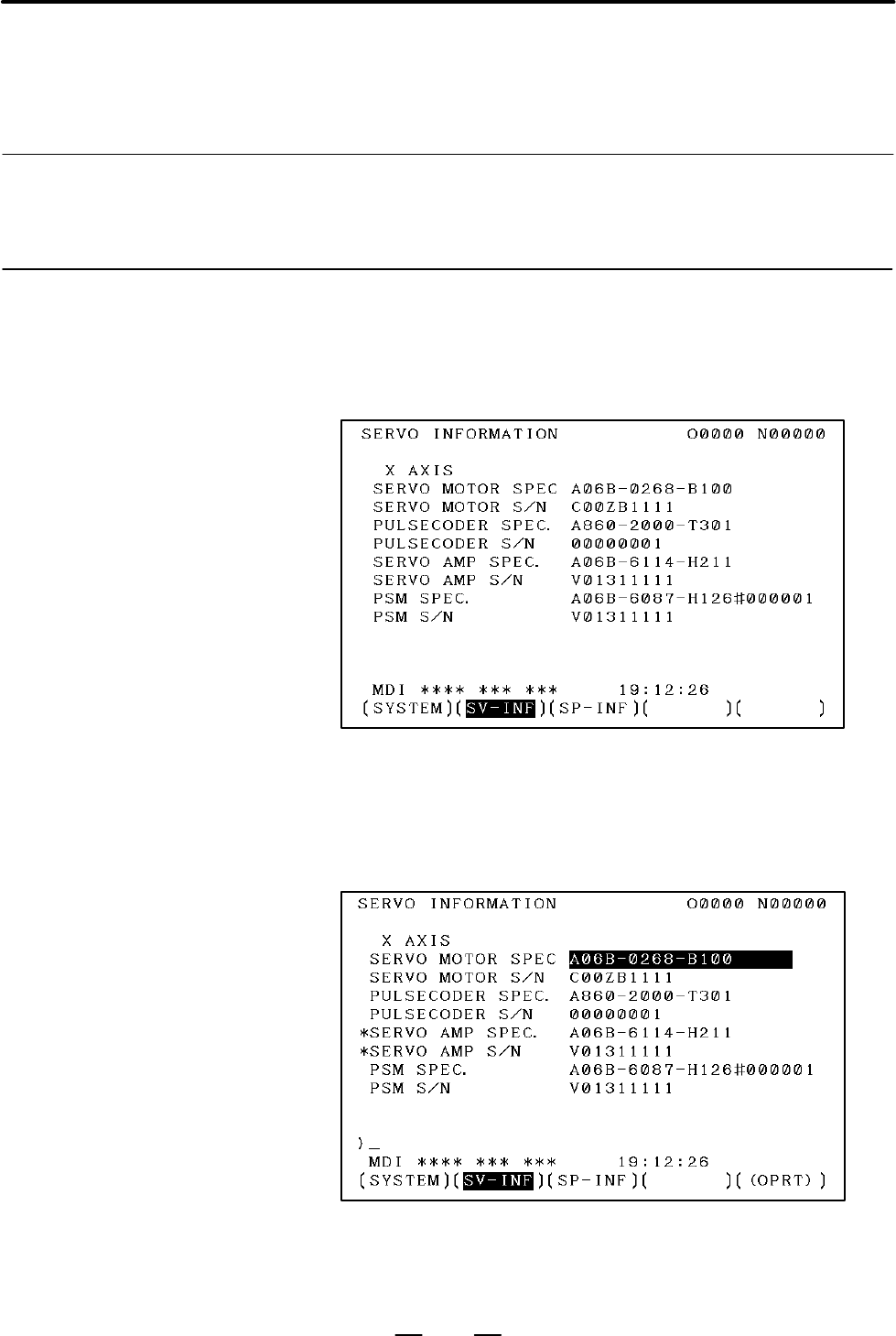

When the αi servo or αi spindle is connected, if each of the units (motor

or amplifier) actually connected it has ID information, the ID information

can be read and displayed on the CNC screen.

: If no servo information is recorded, servo information is automatically

stored in flash ROM. On the screen, if there is a difference between the

servo information in flash ROM and the actual servo information, the

corresponding items are preceded by *, as shown below. This allows

you to determine whether the configuration of connected units is

changed. At this time, the servo information is read from flash ROM.

The servo information recorded or stored in flash ROM can also be edited.

See Chapter 5 “Digital Servo” in the Maintenance Manual (B–63835EN).

26.20

ID INFORMATION

SCREEN

Overview

26.20.1

Servo Information

Screen

Displaying the servo ID

screen

Editing the servo ID

screen
