14. TOOL COMPENSATION FUNCTION

B–63832EN/01

NC FUNCTION

164

Cutter radius compensation is done on XY, ZX, YZ planes and on parallel

axes of X, Y, Z axes.

Plane to perform cutter radius compensation is selected with G17, G18,

G19.

G17 : Xp-Yp plane

G18 : Zp-Xp plane

G19 : Yp-Zp plane

where

Xp : X axis or its parallel axis

Yp : Y axis or its parallel axis

Zp : Z axis or its parallel axis

Parameters are used to set which parallel axis of the X, Y, Z axes is to be

the additional axis.

Plane to perform cutter radius compensation is decided in the axis address

commanded in the G17, G18, or G19 block.

Example)

(U, V, W axes are parallel axes of X, Y, Z axes respectively)

G17 X_ ; XY plane

G17 U_ W_ ; UV plane

G19 Y_ W_ ; YW plane

If axis address of Xp, Yp, or Zp was omitted, compensation plane is

decided regarding that X, Y, or Z was omitted.

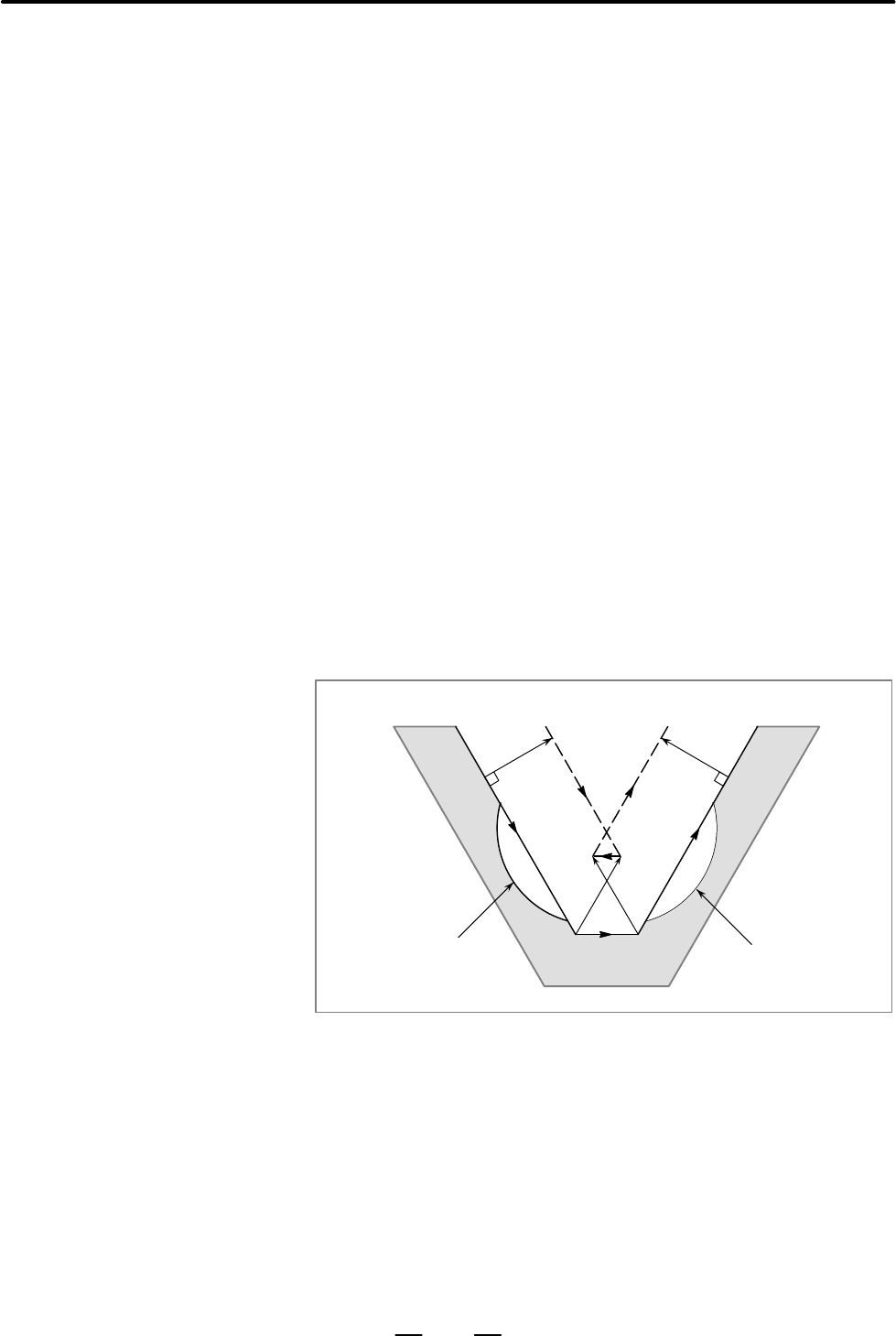

Tool overcutting is called ’interference’. This function checks whether

interference occurs, if cutter radius compensation is performed.

Programmed

path

Tool nose

center path

OvercuttingOvercutting

D Plane selection

(G17, G18, G19)

D Interference check
