To Meet the Requirement of the EMC Directive Additional Manual Page 20

Additional Manual
A-72937EN/11
To meet the requirement of the EMC Directive
TMN06007E_A-72937EN_11.DOC
- 18 -
This kind of clamp is available from Kitagawa Kogyo as FG-series clamps
(parts number FGC-3 and others) or from Osada (parts number
P01 and
others).
It is not recommended to solder a vinyl copper wire to the braided wire and
ground it.
4.2 Ferrite core
FANUC recommends to use ferrite cores for the cables for display unit (CRT
or LCD) and also for the cables for serial port like RS232C. One of the
available ferrite cores in the market is ZCAT3035-1330 from TDK. According

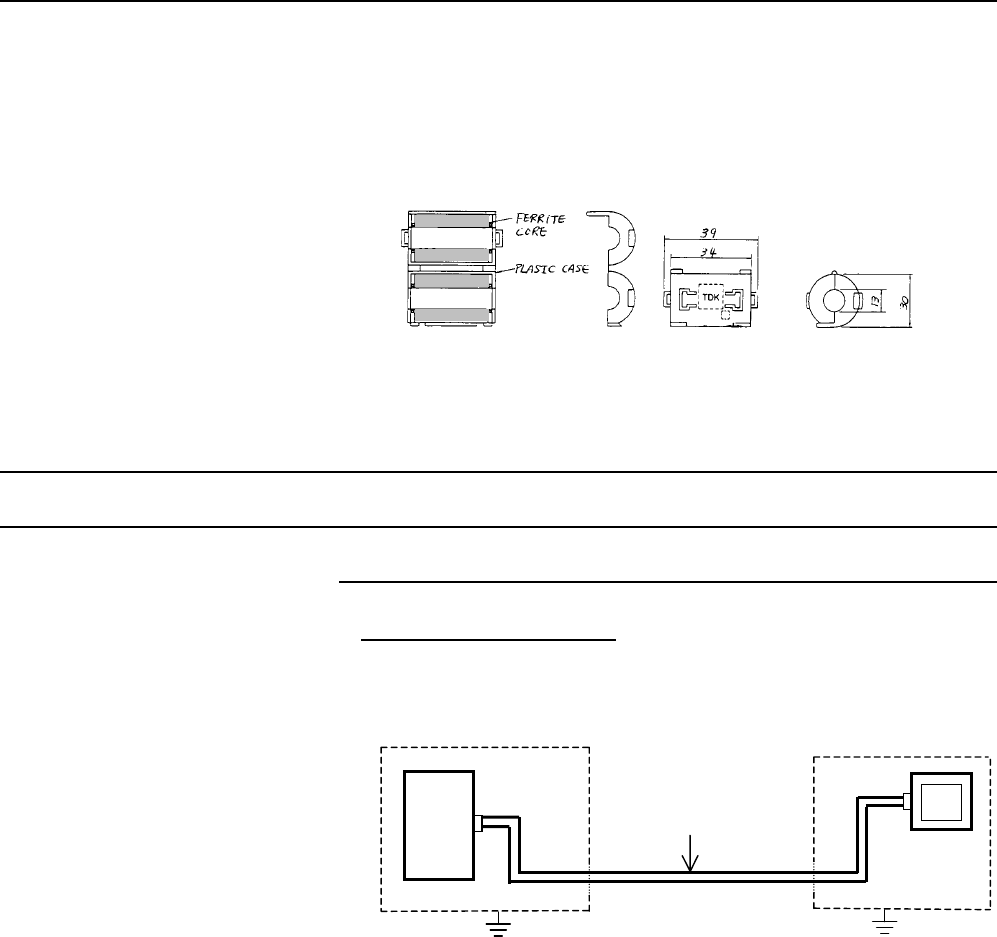

to their product brochure, the outer dimension of the ferrite core is as follows.
This is a splitted type ferrite core put in a plastic case and it is easy to install
it even to assembled cables. E04SR301334 from SEIWA Electric, the outer
dimension is the same as follows, is also available.
It may be necessary to use ferrite cores to get the certificate from a competent
body. As to a location to put the cores in each cable, refer to section 4.3.
4.3 Detailed description of each cable
4.3.1 Cables to be connected to the CNC
(1) Video cable
[In case of optical cable]
Neither shield nor ferrite core is needed.
NC cabinet (Metallic)
O
p
tical cable
NC
Display
Operator’s panel
(Metallic, enclosed)
LCD
