To Meet the Requirement of the EMC Directive Additional Manual Page 50

Additional Manual
A-72937EN/11
To meet the requirement of the EMC Directive
TMN06007E_A-72937EN_11.DOC
- 48 -

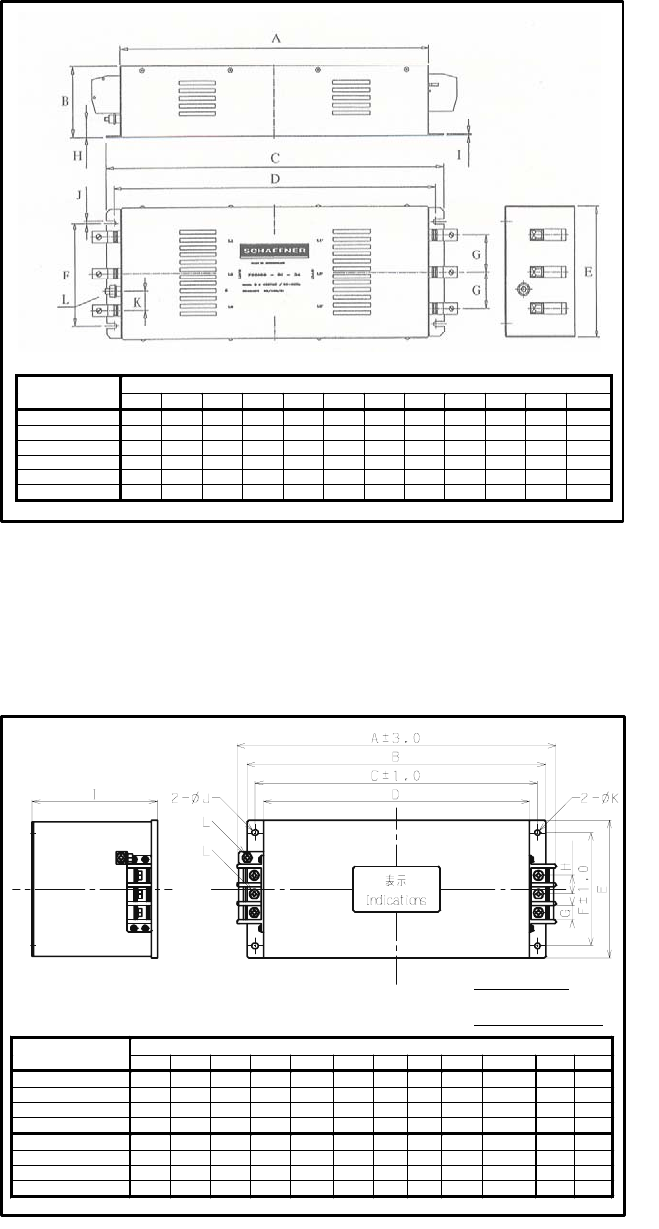

Fig.3 Outer dimensions of FS5559 noise filter
寸法
Dimensions (mm)
品名
Type
ABCDEFGH I JK L
FS5559-35-33 330 85 370 348 110 80 30 25 1.5 6.5 M6
FS5559-60-34 370 95 410 388 170 140 50 25 1.5 6.5 25 M8
FS5559-80-100 420 95 460 438 180 140 50 25 1.5 6.5 25 M8
FS5559-100-34 370 155 410 388 170 140 50 70 1.5 6.5 25 M8
FS5559-150-35 440 150 480 458 200 170 50 35 1.5 6.5 25 M10
FS5559-200-40 440 170 480 458 200 170 50 35 1.5 6.5 25 M10
単　位　：
mm
一般公差：±1.5mm
品名 寸法
Dimensions (mm)
Type
ABCD E FGHI J KL
3SUP-HK30-ER-6 226 210 195 180 120 90 13 18 100
5.5×7
5.5 M4
3SUP-HK75-ER-6 306 280 260 240 150 110 18 23 110
6.5×8
6.5 M6
3SUP-HK150-ER-6 364 320 300 280 180 150 30 25 130
6.5×8
6.5 M8
3SUP-HK200-ER-6 384 340 320 300 210 180 30 25 140
6.5×8
6.5 M8
3SUP-HK30-ER-6-360
226 210 195 180 120 90 13 18 100
5.5×7
5.5 M4
3SUP-HK75-ER-6-360
306 280 260 240 150 110 18 23 110
6.5×8
6.5 M6
3SUP-HK150-ER-6-360
364 320 300 280 180 150 30 25 130
6.5×8
6.5 M8
3SUP-HK200-ER-6-360
384 340 320 300 210 180 30 25 140
6.5×8
6.5 M8
Fig.4 Outer dimensions of 3SUP-HK□-ER-6 ＆ -ER-6-360 noise filter
