FS 16i/160i-PB, FS 18i/180i-PB, Program Auto Restart Additional Manual Page 2

Additional Manual
1. Outline
This function is used for resuming the machining after interrupted (e.g. reset, power-off, etc.).
This is optional function.
2. Specification
There are two resume methods. One is a resume from interrupted block, and other is a resume from
mode start position. These methods are selected by a signal (Restart position select signal :
RSRSEL<G248#7>)
2.1 Resume from interrupted block
CNC positions the workpiece to the interrupted block, and resumes the machining. Restart process is
separated as the following two processes.
2.1.1 Restart position return process
CNC positions the workpiece to the restart position in the rapid traverse. Setting a parameter
(No.16960#0), the restart position is selected as the interrupted position or as the head position that is
the interrupted block.
When the restart position is selected as the head position that is the interrupted block and a cycle
motion (pattern command, nibbling, T-axis block, etc.) is interrupted, the restart position is not the head
position of block, but the head position of a cycle motion.
*2
2.1.2 Restart position search process
CNC searches the restart program, and searches the restart position on this program by using
memorized data. After finishing the search process, CNC stops as the Feed-hold State. During
searching, the machine does not move, however, M, S, T, B code, MF, SF, TF, BF, EF, and PF are
output as same as usually program execution.
Restart positioning
Program start position
Arbitrary position
Restart position
(Interrupted position)
N1
N2 N3
N4
Restart position
(
Head
p
osition of interru
p
ted block
)

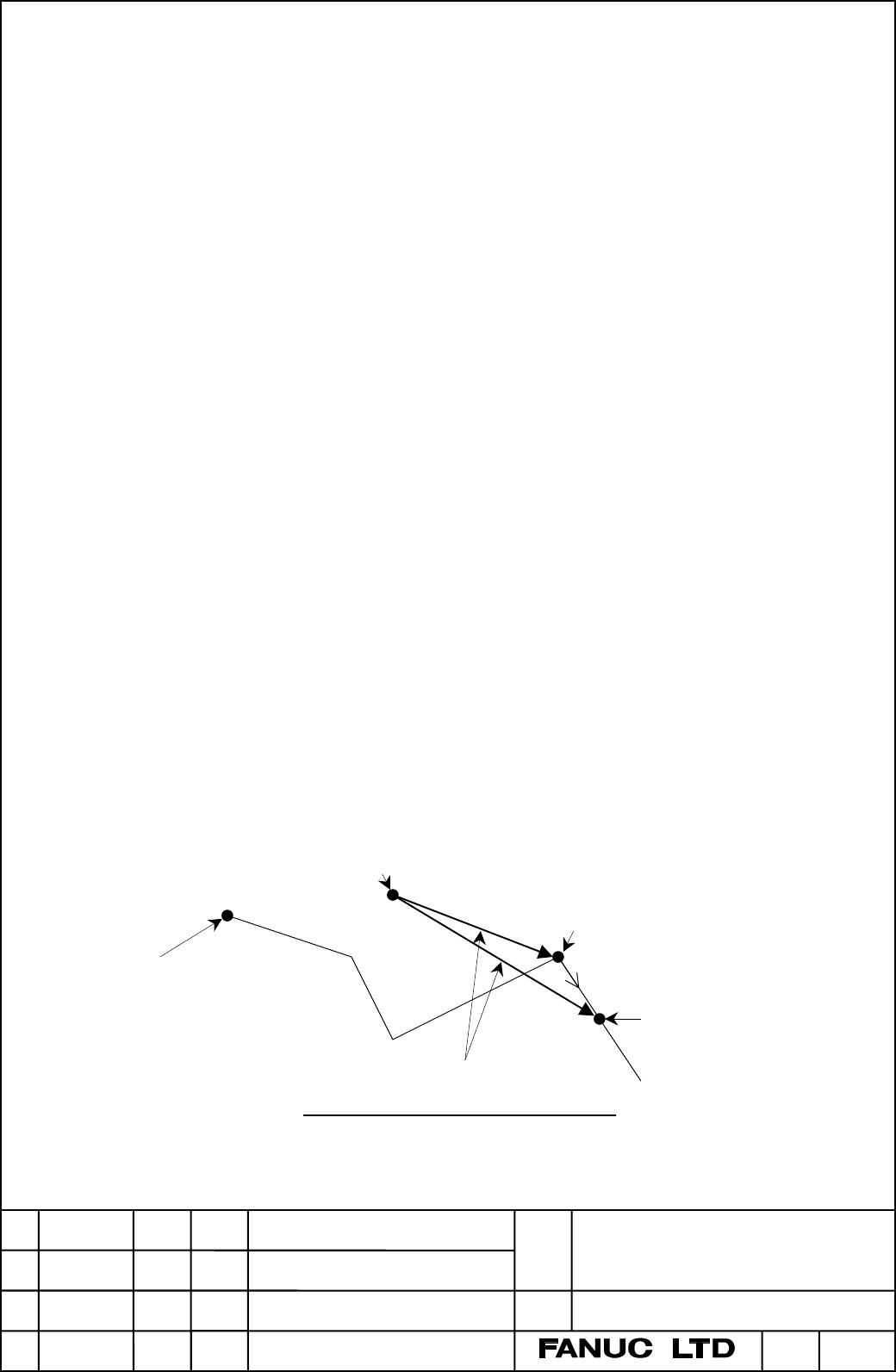

Fig.1 Resume from interrupted position
Edit Date
Desig
Contents
Title
of
Drawing
Drawing
No.
FS16i/18i/160i/180i-PB
Program Auto Restart
S
p
ecifications
A-78518E
Page
2 / 2
Recog
nition
Newly designed Miyajima
Matsu
moto
01.06.01 01
01.09.21 02
Matsu
moto
Revision for mark *2
Miyajima
