  2. FANUC Series 16i/18i/21i-MB, Active Block Cancel Function, Specifications

FANUC Series 16i/18i/21i-MB, Active Block Cancel Function, Specifications Additional Manual Page 3

Additional Manual
Ed.
ApprovalCharge
Page
Name
3/9
Date
2002.4.25
Contents
Making
FANUC Series 16i/18i/21i-MB
Active Block Cancel Function
A-78889EN
Nagano
Draw
Operation when operation restarts
G90/G91
When the operation is restarted, the operation of the restart is decided
depending on the instruction in the next block of the canceled block.
When the next block is absolute instruction (G90), the operation is
restarted toward the terminal from the stopping position to the next block.
When the next block is incremental instruction (G91), the incremental
operation is restarted from the stopping position.
Position where tool halts b
y
si
g
nal
next block
When G91 is specified i
n
next block
p
rogrammed tool path
When G90 is specified i
n
next block

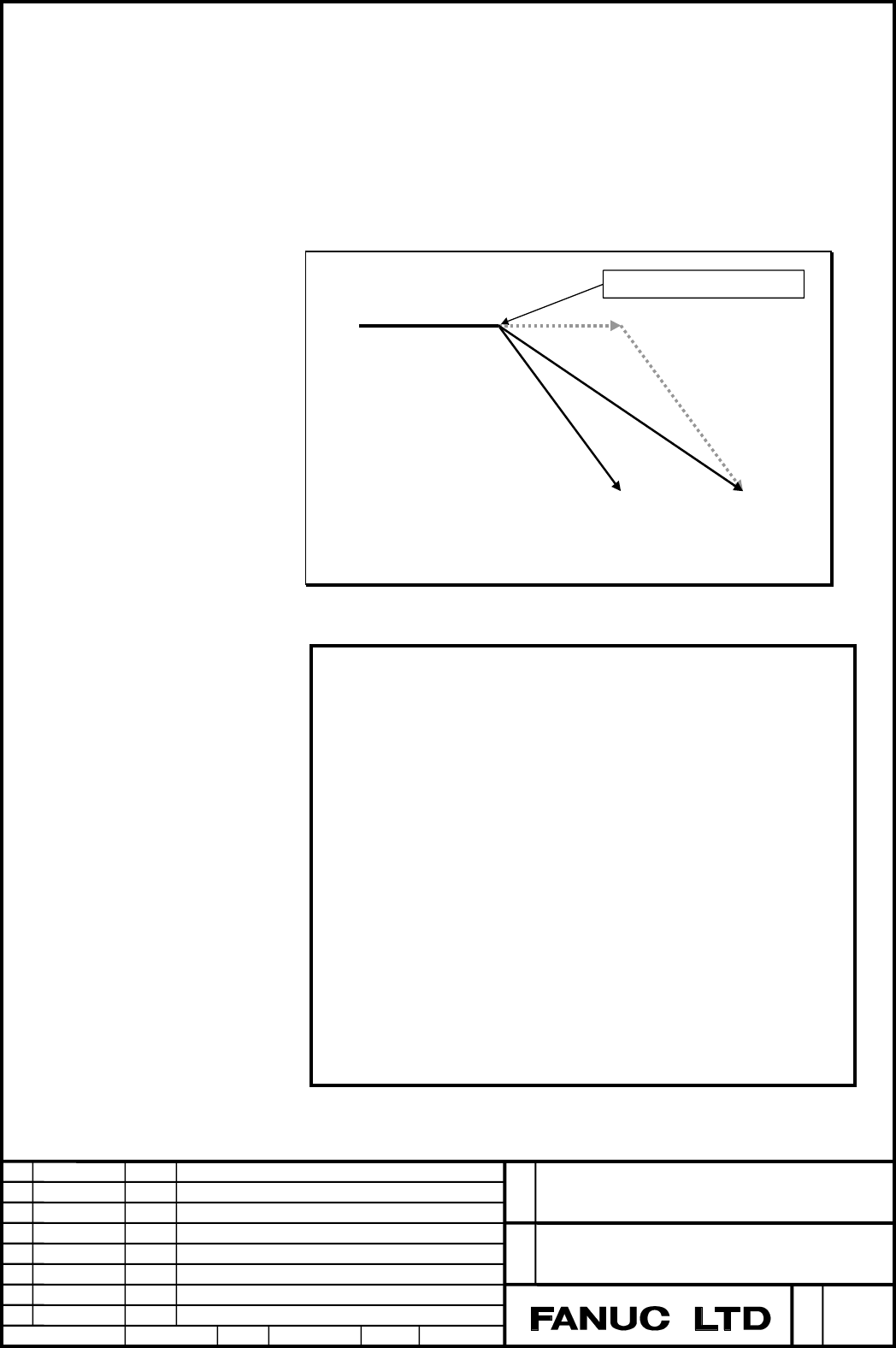

Fig 1. Absolute / Incremental
NOTE
- Because the tool becomes a start from the canceled
position when an automatic operation restarts, the
route of an actual movement is different from original
program route. Therefore, there is a possibility that
the tool route and the work piece interfere when
restarting. Please do the restart operation after
confirming neither the tool nor work piece interfere
enough.
- If the part program is incremental instruction, the
terminal of the next block shifts cancellation amount
when automatic operation restarts. This amount of
the gap keeps remaining until the absolute instruction
is executed next. Therefore, this function cannot be
used to check the block terminal by the program
made by the incremental instruction.
