FANUC Series 16i/18i/21i-MB, Active Block Cancel Function, Specifications Additional Manual Page 8

Additional Manual
Ed.
ApprovalCharge
Page
Name
8/9
Date
2002.4.25
Contents
Making
FANUC Series 16i/18i/21i-MB
Active Block Cancel Function
A-78889EN
Nagano
Draw

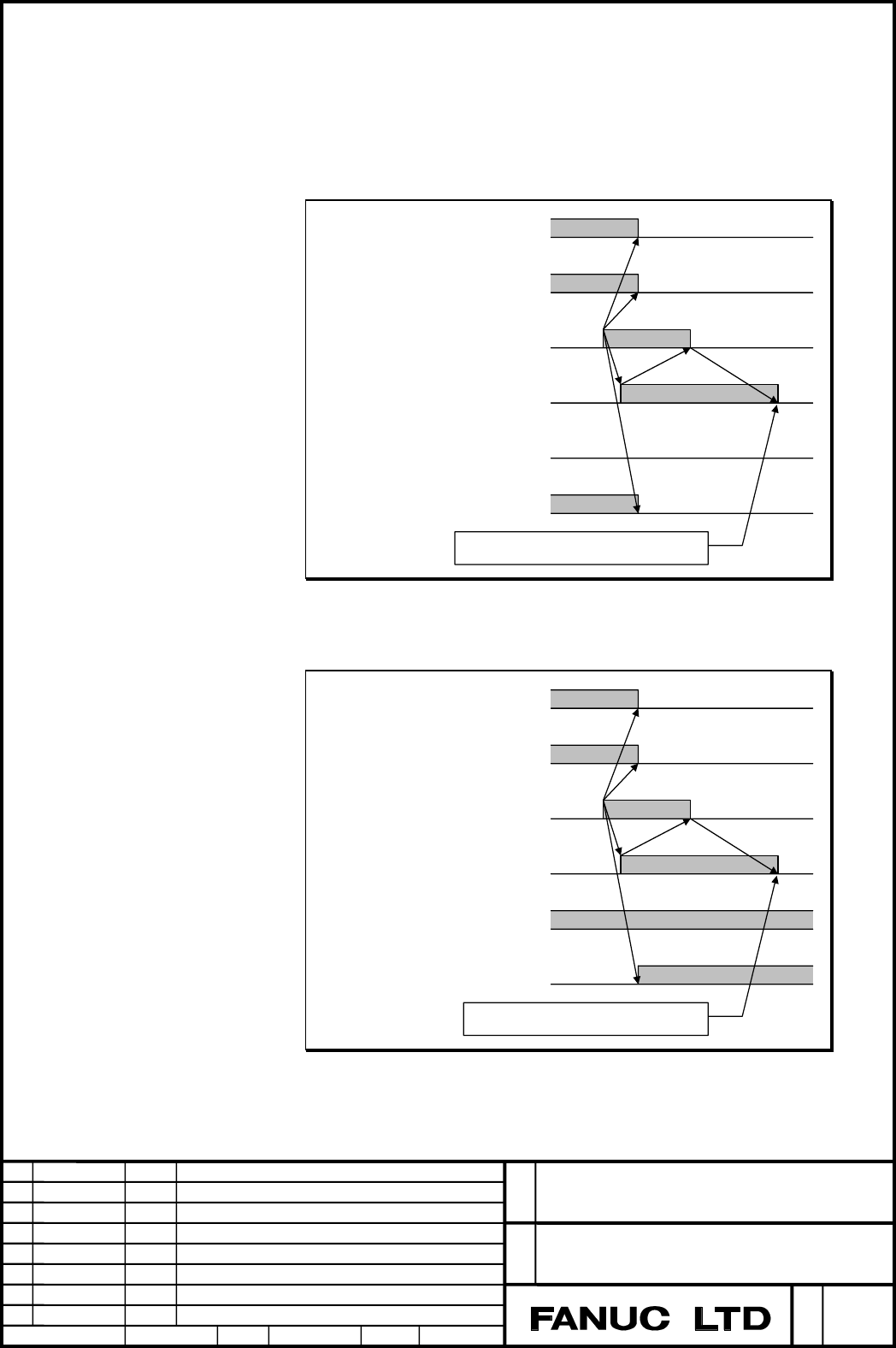

If using the high speed M/S/T/B interface (parameter MHI (No.3001#7) =
1) , the each strobe signal MF, SF, TF, BF is not changed. Therefore,
after completion signal MFIN / SFIN / TFIN / BFIN is matched in the
same logical level as the strobe signal, it is necessary to restart the
operation. (Fig.7 / Fig.8)
Automatic operation signal : OP
Block cancel acknowledgement signal : MBCAN
Cycle start lamp signal : STL
Block cancel signal : BCAN
Strobe signal : MF
End signal : MFIN
When the deceleration of all axes terminates
Fig7. Block cancel of executing high speed auxiliary function (MF=0)
Automatic operation signal : OP
Block cancel acknowledgement signal : MBCAN
Cycle start lamp signal : STL
Block cancel signal : BCAN
Strobe signal : MF
End signal : MFIN
When the deceleration of all axes terminates
Fig8. Block cancel of executing high speed auxiliary function (MF=1)
