FANUC Series 16i/18i/21i-MB, Active Block Cancel Function, Specifications Additional Manual Page 7

Additional Manual
Ed.
ApprovalCharge
Page
Name
7/9
Date
2002.4.25
Contents
Making
FANUC Series 16i/18i/21i-MB
Active Block Cancel Function
A-78889EN
Nagano
Draw

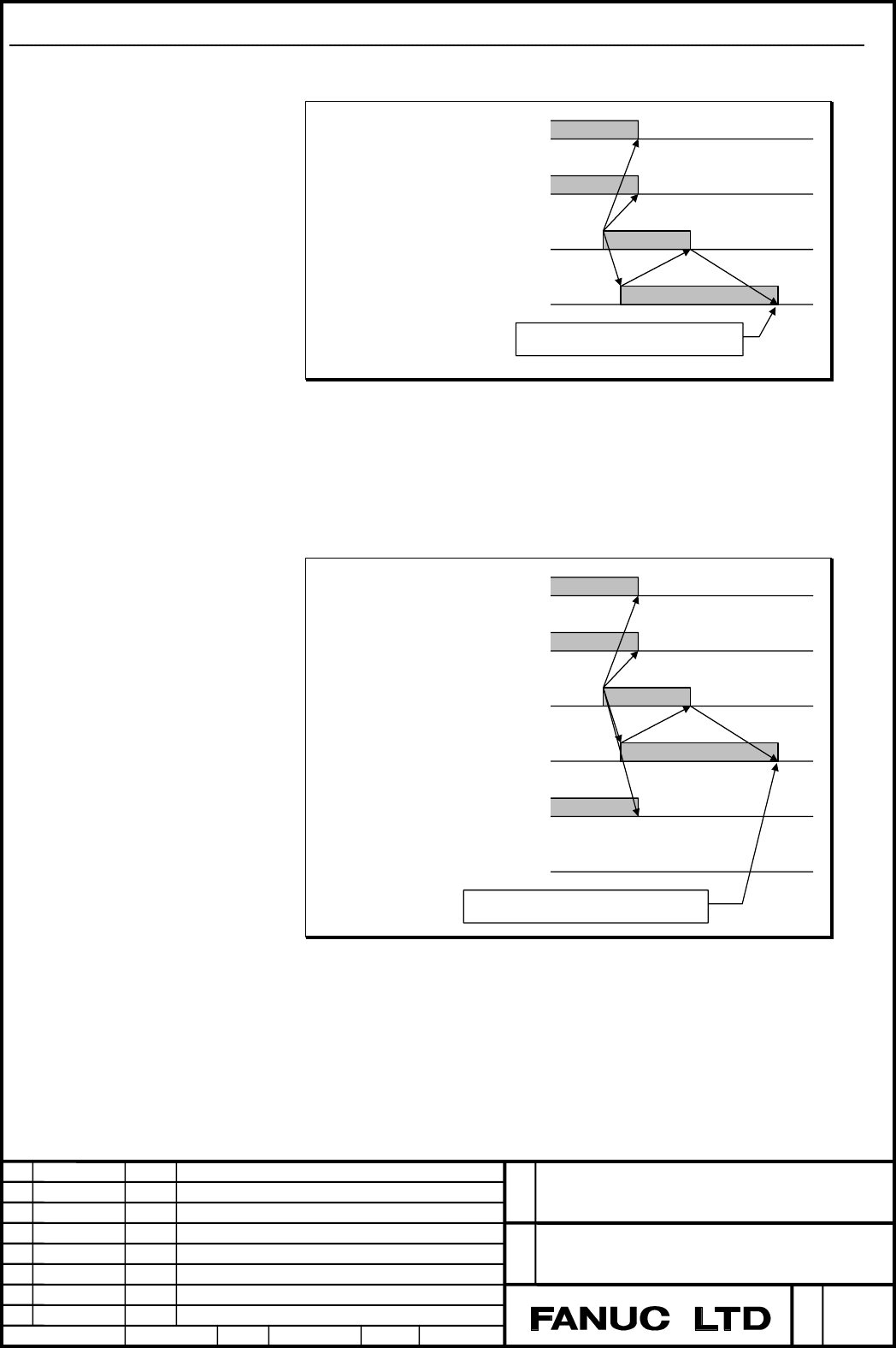

Timing chart for block cancel operation
Automatic operation signal : OP
Block cancel acknowledgement signal : MBCAN
Cycle start lamp signal : STL
Block cancel signal : BCAN
When the deceleration of all axes terminates
Fig5.Timing chart for block cancel operation
If the auxiliary function such as miscellaneous function, spindle speed,
tool function, second auxiliary function is executing, the each strobe
signal MF, SF, TF, BF becomes "0".
Automatic operation signal : OP
Block cancel acknowledgement signal : MBCAN
Cycle start lamp signal : STL
Block cancel signal : BCAN
Strobe signal : MF
End signal : FIN
When the deceleration of all axes terminates
Fig6.Block cancel of executing auxiliary function
