Canned cycle
When a block is canceled during a canned cycle, that canned cycle is
canceled. Program execution is restarted from the next block.
Example1 N10 G91 G84 X_ Y_ Z_ R_ K3 ;
N20 G90 G00 X_ Y_ Z_ ;
Position where tool halts by signal
N
10
N
20

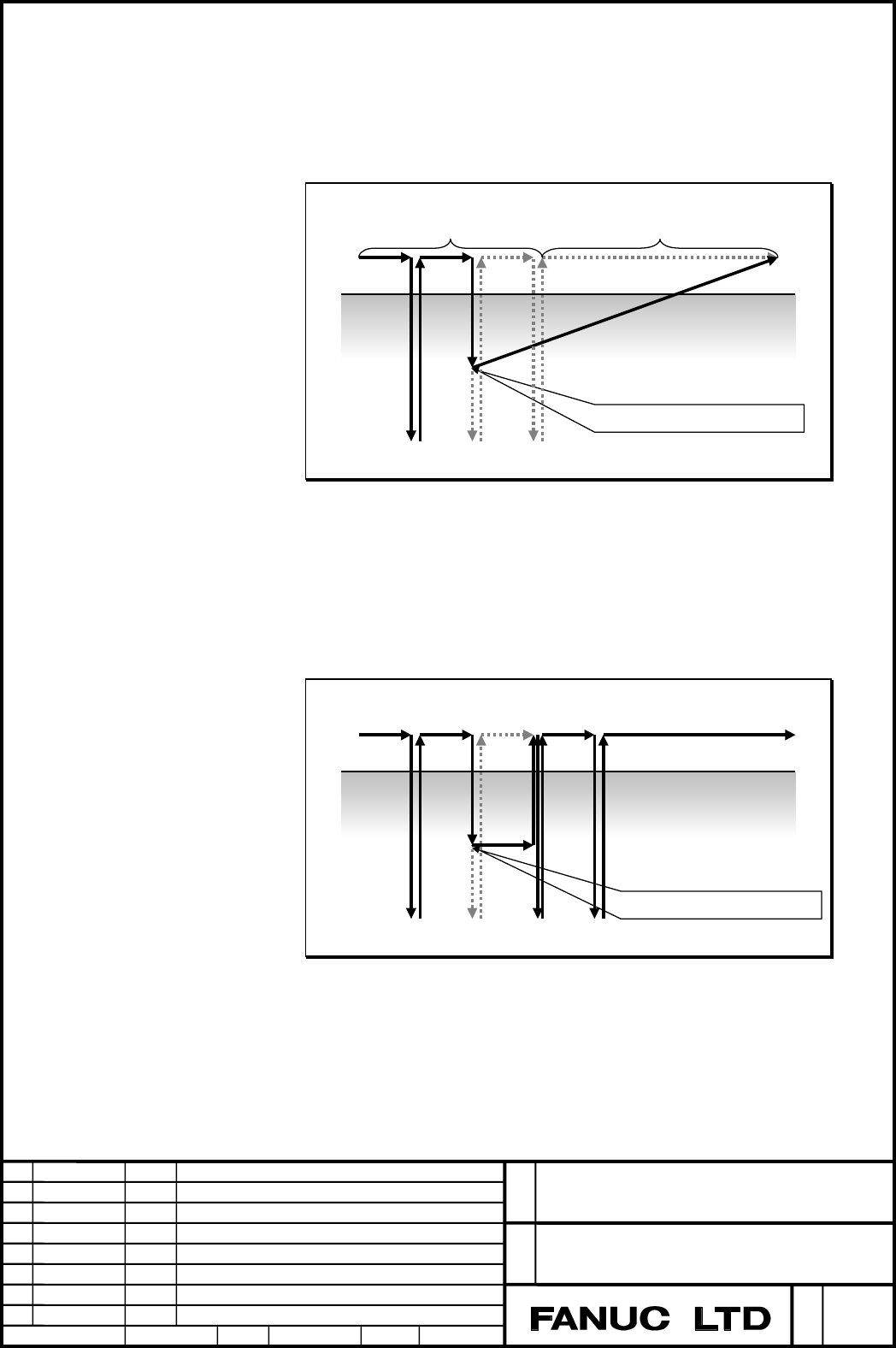

Fig3. Canned cycle 1
Example 2 N10 G90 G84 X_ Y_ Z_ R_ ;
N20 X_ Y_ ;
N30 X_ Y_ ;
N40 X_ Y_ ;
N50 G00 X_ Y_ Z_ ;
Position where tool halts by signal
N
10
N
50
N
20
N
30
N
40
Fig4. Canned cycle 2
When restarting, the operation is executed from the next N30 block when
the operation is canceled while executing in N20 cycle.
At this time, because the G84 mode is maintained, the tool positions in R
point after moving to the X-Y position instructed with N30 and starts the
hole opening operation.
