Spindle Learning Control Manual Additional Manual Page 17

Additional Manual
17/22
Design.
DateEd.
2002.05.06
SHEET
DRAW. No.
CUST.
TITLE
M.Niwa
Newly preparation
Spindle Learning Control Description
A-53866E-0425
FANUC LTD
01
Parameter No.
4431
Duration of learning : LCTIME
data unit : 0.1sec
data range : 0 ~ 32767

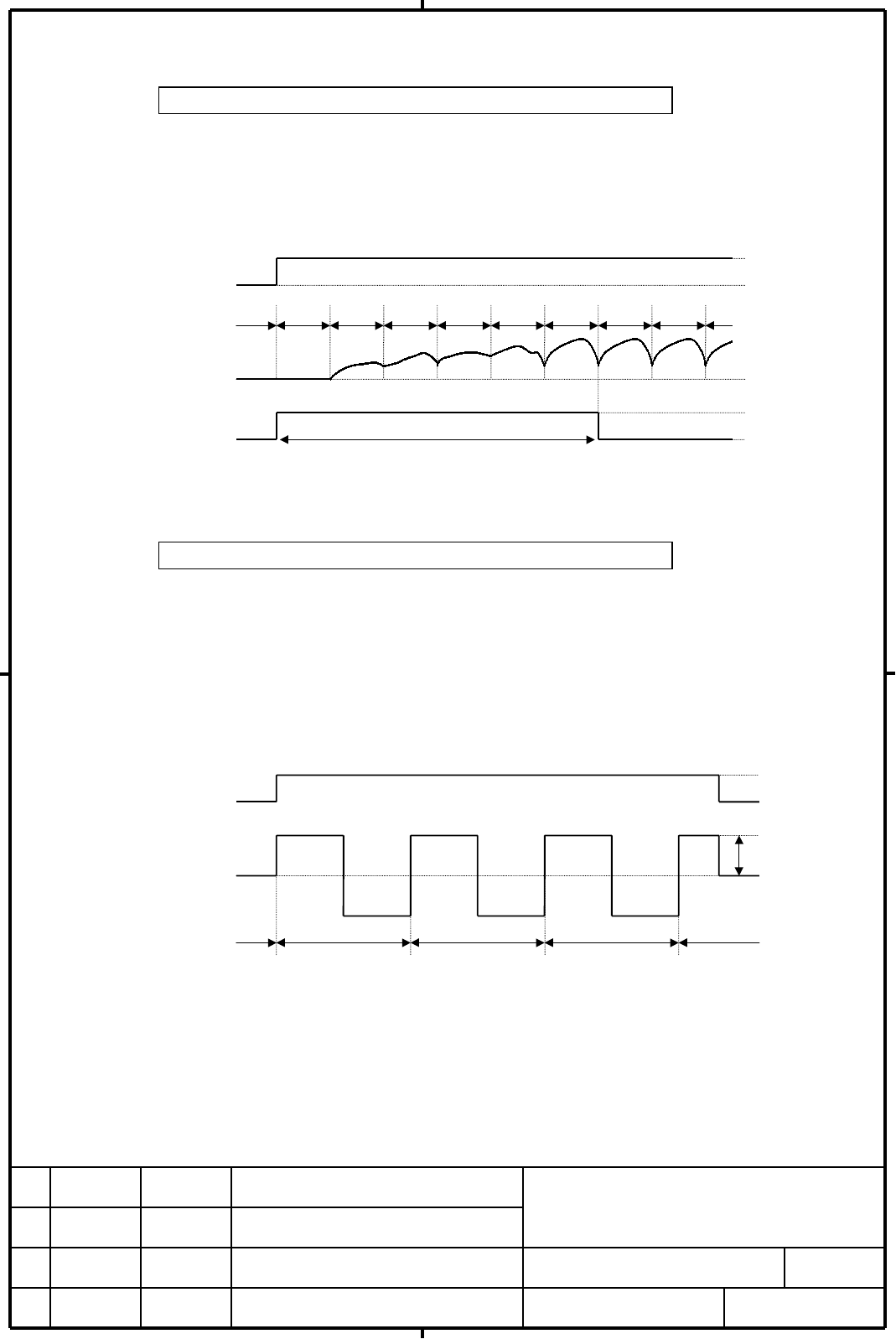

This data is used to set duration of Learning Control. Learning controller stops
update of compensation data after the expiration of the time interval that this
parameter specifies (See following figure).
If “0” is set in this parameter, it is assumed to be "∞" (infinity)
Parameter No.
4435
Amplitude of disturbance torque command : DSTAMP
data unit : 0.1% (maximum torque is 100%)
data range : 0 ~ 125
This data is used to set amplitude of disturbance torque command. The rectangular
shape disturbance with specified amplitude is added to torque command when
Learning Control status signal LCSTS is active (See following figure). When “0” is set
in this parameter, no disturbance is added
This parameter is used to judge whether Learning Controller is stable or not when
tuning is done. So normally, specify “0”.
LCSTS
signal
disturbance
torque
command
learning period learning period learning period
No.4435
0
1
0
50% duty rectangular wave
LCSTS
signal
learning
compensation
data
learning
p
eriod
0
1
learning
p
eriod
learning
p
eriod
learning
p
eriod
learning
p
eriod
learning
p
eriod
learning
p
eriod
learning
p
eriod
update stop
compensation
data update
status
update continue
0.1×No.4431 sec
